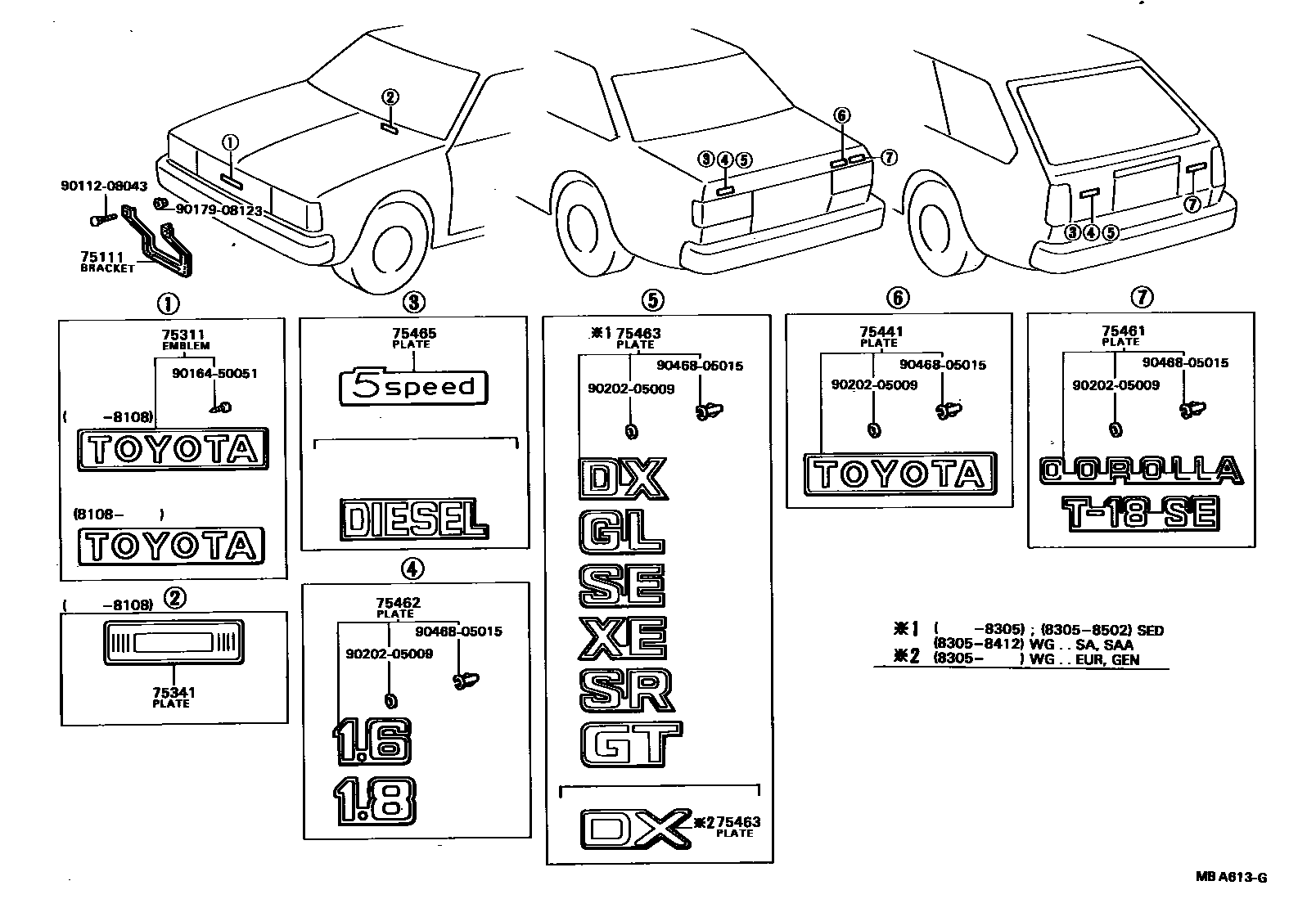

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

75111BRACKET, FRONT LICENSE PLATE

main75111-12040iKE70,TE71..LHD..EUG197908-198108

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-19845iKE70..(DV,SED,WG)..EUR197908-198305

TOYOTA

main75311-19855iKE70,TE71..(DV,SED,WG)..GEN197908-198008

TOYOTA

main75311-19865iTE7#..SE..SA197908-198204

TOYOTA

main75311-80001iKE70..2D..ARL198108-198309

TOYOTA

main75311-80015iKE70,TE71..(DV,SED,WG)..(EUR,GEN,SAA)198108-198308

TOYOTA

main75311-80016iKE70,TE7#..(CP,LB)..(ARL,EUR,GEN,SAA)198108-198406

TOYOTA

main75311-80026iAE71..STD198305-198707

TOYOTA

75341PLATE, INSTRUMENT PANEL NAME, NO.1

main55511-12180-03iTE71..RHD..4D..GEN;KE70..(DV,SED,WG)..RHD..(GEN,SA)197908-198108

GRAY METALLIC,GRAY,TRIM0#,2#

sub55511-12180

main55511-12180-04iKE70,TE71..(DV,SED,WG)..RHD..GEN197908-198108

BLUE METALLIC,BLUE,TRIM8#

sub55511-12180

main55511-12180-06iTE71..RHD..4D;KE70,TE72..(DX,GL)..SA;KE70..(DV,SED,WG)..RHD..GEN197908-198108

BROWN METALLIC,BROWN,TRIM4#

sub55511-12180

75441PLATE, REAR NAME, NO.1

main75441-12240iAE71,CE70,KE70,TE7#..CP,LB,SED197908-198502

TOYOTA

75461PLATE, REAR NAME, NO.2 (MODEL MARK)

main75441-12280iTE72..ARL197908-198305

T-18 SE

main75442-12710iTE71..LHD..SR;TE71..RHD..SR..GEN;KE70,TE7#..(DX,GL,GT,SE,STD,XE,XL)..(EUR,GEN,SA)197908-198502

COROLLA

75462PLATE, REAR NAME, NO.3 (DISPLACEMENT)

main75444-12050iAE71,TE71..DX,GL,SE,SR,STD,XE197908-198502

1.6

main75444-12080iTE72..EUR,SA197908-198404

1.8

75463PLATE, REAR NAME, NO.4 (GRADE MARK)

main75443-12130iKE70,TE71..SED..DX197908-198502

DX

main75443-12140iKE70,TE7#..GL..(EUR,GEN,SA)198007-198406

GL

main75443-12150iTE7#..SE..SA197908-198401

SE

main75443-12240iTE71..SR197908-198305

SR

main75443-12280iTE71..GT197908-198305

GT

sub75443-12160

main75443-12330iTE71..XE198108-198305

XE

main75443-13020iCE70,KE70..WG..(DX,XL)..(EUR,GEN)198305-198407

DX

sub75443-13021

main75443-13021iCE70,KE70..(DX,XL)..(EUR,GEN)198407-198508

DX

main75443-13022iKE70..DX,XL198508-198707

DX

sub75444-13030

main75443-13040iKE70..XL198508-198707

XL

sub75444-13050

main75443-13070iAE71..SA198508-198707

1.6XL

main75443-13080iCE70..DX198508-198707

DX DIESEL

75465PLATE, REAR NAME, NO.5 (MECHANISM)

main75441-30040iKE70..LB..5F197908-198410

main75444-12120iCE70198210-198305

main75445-12070iCE70198305-198407

sub75445-13010

main75445-13010iCE70198407-198508

main75445-13011iCE70..STD198508-198707

9011208043

main90112-08043

9016450051

main90164-50051

9017908123

main90179-08123

9020205009

main90202-05009

9046805015

main90468-05015

13 parts on this diagram · 2 diagrams in section
