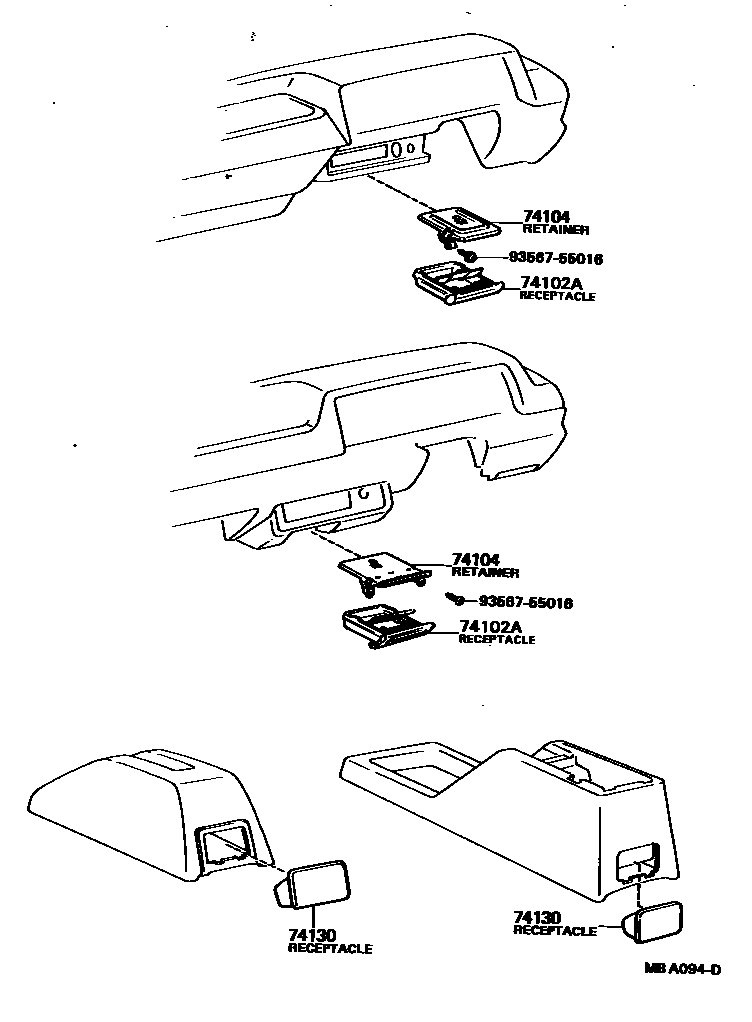

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-12150-01iCE70,KE70,TE7#..DV,SED,WG197908-198305

BLACK,BLACK,TRIM0#,2#

sub74102-12151

sub74102-12150

main74102-12150-04iCE70,KE70,TE71..(DV,SED,WG)..(ARL,EUR,GEN,SAA)197908-198305

BLUE,BLUE,TRIM8#

sub74102-12151

sub74102-12150

main74102-12150-06iCE70,KE70,TE7#..(DV,SED,WG)..(EUR,GEN,SA,SAA)198108-198305

DARK BROWN,BROWN,TRIM4#

sub74102-12151

sub74102-12150

main74102-12150-15iKE70..4D..ARL197908-198305

BEIGE,BEIGE,TRIM4#

sub74102-12151

sub74102-12150

main74102-12151-01iAE71,KE70..WG..ARL198305-198410

BLACK,BLACK,TRIM2#

sub74102-12151

main74102-12151-01iAE71,KE70,TE7#..GEN,SA,SAA198305-198508

BLACK,BLACK,TRIM0#,2#

sub74102-12151

main74102-12151-03iAE71..STD198305-198707

GRAY,GRAY,TRIM1#

sub74102-12151

main74102-12151-04iKE70..SAA198305-198309

BLUE,BLUE,TRIM8#

sub74102-12151

main74102-12151-06iAE71,KE70,TE7#..GEN,SA,SAA198305-198508

DARK BROWN,BROWN,TRIM4#

sub74102-12151

main74102-12151-16iAE71,CE70,KE70198508-198707

BROWN,LIGHT BROWN,TRIM4#

sub74102-12151

main74102-12151-25iAE71..STD198305-198508

BEIGE,BEIGE,TRIM4#

sub74102-12151

main74102-12160-01iKE70,TE7#..(CP,LB)..(ARL,EUR,GEN)197908-198406

BLACK,BLACK,TRIM0#,2#

sub74102-12160

main74102-12160-04iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN)197908-198305

BLUE,BLUE,TRIM8#

sub74102-12160

main74102-12160-06iKE70,TE7#..CP,LB197908-198406

DARK BROWN,BROWN,TRIM4#

sub74102-12160

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-12130iAE71,CE70,KE70,TE7#..DV,SED,WG197908-198306

sub74104-12131

main74104-12131iAE71,CE70,KE70,TE7#..DV,SED,WG198306-198707

main74104-12140iKE70,TE7#..CP,LB197908-198406

74130RECEPTACLE ASSY, REAR ASH

main74130-12040-01iKE70..(DV,WG)..ARL198305-198410

BLACK,BLACK,TRIM2#

sub74109-20080

sub74130-12040

main74130-12040-01iKE70..STD..SA;KE70,TE7#..ARL,EUR,GEN,SAA197908-198508

BLACK,BLACK,TRIM0#,2#

sub74109-20080

sub74130-12040

main74130-12040-04iTE72..(DX,SE)..(ARL,EUR);CE70,KE70,TE71..ARL,EUR,GEN,SAA197908-198309

BLUE,BLUE,TRIM8#

sub74109-20080

sub74130-12040

main74130-12040-06iKE70,TE7#..CP,LB197908-198508

DARK BROWN,BROWN,TRIM4#

sub74109-20080

sub74130-12040

main74130-12040-13iCE70,KE70..(DV,WG)..(EUR,GEN)198305-198707

GRAY,GRAY,TRIM1#

sub74109-20080

sub74130-12040

main74130-12040-15iKE70..4D..ARL197908-198305

BEIGE,BEIGE,TRIM4#

sub74109-20080

sub74130-12040

main74130-12040-22iCE70,KE70..(DV,WG)..(EUR,GEN)198305-198409

MAROON,RED/MAROON,TRIM3#

sub74109-20080

sub74130-12040

main74130-12040-36iCE70,KE70..EUR,GEN198409-198707

BROWN,BROWN,TRIM4#

sub74109-20080

sub74130-12040

9356755016

main93567-55016

4 parts on this diagram · 1 diagram in section
