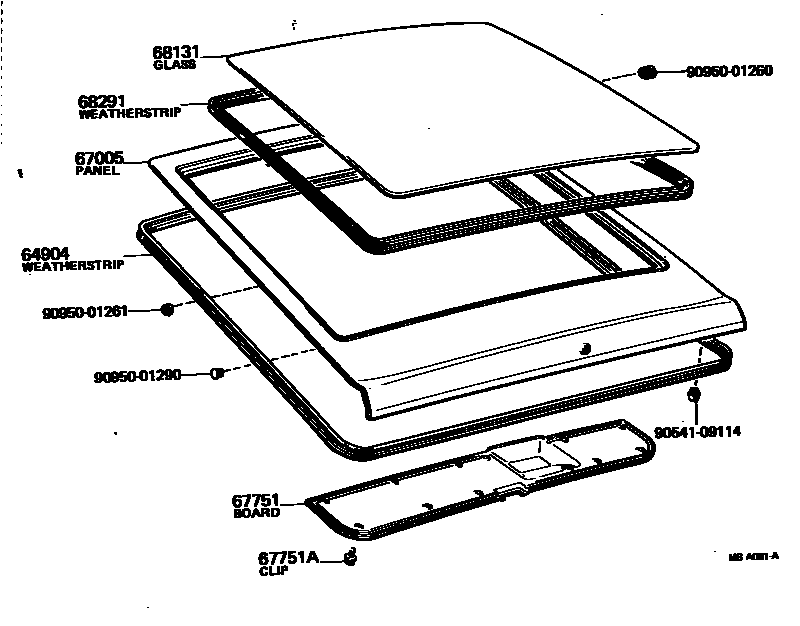

BACK DOOR PANEL & GLASS

0001 1 0002 1 0003 1

64904WEATHERSTRIP SUB-ASSY, BACK DOOR

main67881-12030iKE70,TE71..CP197908-198305

main67881-12050iKE70,TE7#..LB197908-198406

main67881-13050iAE71,CE70,KE70,TE71..DV,WG197908-198707

main67881-13090iCE70,KE70..EUR198506-198707

67005PANEL SUB-ASSY, BACK DOOR

main67005-12100iKE70,TE71..CP197908-198305

W/*RW

sub67005-12241

main67005-12110iKE70,TE7#..LB..(EUR,GEN,SA,SAA)197908-198406

sub67005-12291

main67005-12120iKE70,TE7#..LB197908-198406

W/*RW

sub67005-12301

main67005-12270iKE70,TE71..CP197908-198305

sub67005-12261

main67005-13300iKE70,TE71..DV,WG197908-198108

W/*DEF

sub67005-13301

main67005-13301iTE71..DV,WG;KE70..(DV,WG)..LHD;KE70..(DV,WG)..RHD..GEN198108-198305

W/*DEF

sub67005-13302

main67005-13302iCE70,KE70..LHD..DX..EUR198305-198707

W/O *RW,W/*DEF

main67005-13302iKE70..4F..2D..(GEN,SA)198409-198707

W/*DEF

main67005-13310iKE70,TE71..WG197908-198108

W/*RW,*DEF

sub67005-13311

main67005-13311iKE70,TE71..WG..(EUR,GEN,SA,SAA)198108-198308

W/*RW,*DEF

sub67005-13312

main67005-13312iCE70,KE70,TE71..WG..(EUR,GEN,SA)198305-198707

W/*RW,*DEF

sub67005-13640

main67005-13420iTE71..WG;KE70..WG..DX..GEN;KE70..(DV,WG)..(STD,XL)197908-198108

W/O *RW,*DEF

sub67005-13421

main67005-13421iTE71..DV,WG;KE70..WG..SAA;KE70..(DV,WG)..(STD,XL)198108-198308

W/O *RW,*DEF

sub67005-13422

main67005-13422iTE71..WG198305-198707

W/O *RW,*DEF

main67005-13422iKE70..4F..2D..(GEN,SA)198409-198707

W/O RW,*DEF

main67005-13450iTE71..WG;KE70..WG..DX..GEN;KE70..WG..(STD,XL)197908-198108

W/*RW,W/O *DEF

sub67005-13451

main67005-13451iKE70..WG..SAA198108-198308

W/*RW,W/O *DEF

sub67005-13452

main67005-13452iAE71,KE70..(DV,WG)..(3FC,4F)..GEN198305-198707

W/*RW,W/O *DEF

main67005-13501iKE70..WG..ARL198108-198305

sub67005-13502

main67005-13502iAE71,KE70..WG..ARL198305-198410

sub67005-13710

main67005-13510iKE70..2D..ARL198108-198309

W/O *DEF

sub67005-13511

main67005-13511iAE71..STD198309-198406

W/O *DEF

main67005-13520iKE70..2D..ARL198108-198309

W/*DEF

sub67005-13521

main67005-13521iAE71..STD198309-198406

W/*DEF

sub67005-13690

main67005-13620iAE71..SA198501-198707

W/*RW,W/O *DEF

main67005-13630iCE70,KE70..STD..EUG198409-198707

W/O *RW,*DEF

main67005-13640iCE70,KE70..DX..EUR198409-198707

W/*RW,*DEF

main67005-13650iCE70,KE70..LHD..DX198409-198707

W/O *RW,W/*DEF

main67005-13680iAE71,KE70..(3FC,4F)..GEN198601-198707

LICENCE PLATE(UPR),W/O*RW,*DEF

main67005-13690iAE71,KE70..(3FC,4F)..GEN198601-198707

LICENCEPLATE(UPR)W/O*PW,W/*DEF

main67005-13700iAE71,KE70..(3FC,4F)..GEN198601-198707

LICENCEPLATE(UPR)W/*PW,W/O*DEF

main67005-13710iAE71,KE70..GEN198601-198707

LICENCE PLATE(UPR),W/*RW,*DEF

67751BOARD, BACK DOOR TRIM

main64780-12010-01iKE70,TE71..CP197908-198305

W/O RR WINDOW WIPER,BLACK,BLACK,TRIM0#,2#

main64780-12010-04iKE70,TE71..CP197908-198305

W/O RR WINDOW WIPER,BLUE,BLUE,TRIM8#

main64780-12010-06iKE70,TE71..CP197908-198305

W/O RR WINDOW WIPER,DARK BROWN,BROWN,TRIM4#

main64780-12020-01iKE70,TE7#..LB..(EUR,GEN,SA,SAA)197908-198406

W/O RR WINDOW WIPER,BLACK,BLACK,TRIM0#,2#

main64780-12020-04iKE70,TE72..LB..DX;TE71..LB..(EUR,GEN,SAA)197908-198308

W/O RR WINDOW WIPER,BLUE,BLUE,TRIM8#

main64780-12020-06iKE70,TE7#..LB..(EUR,GEN,SA,SAA)197908-198406

W/O RR WINDOW WIPER,DARK BROWN,BROWN,TRIM4#

main64781-12010-01iKE70,TE71..CP197908-198305

W/RR WINDOW WIPER,BLACK,BLACK,TRIM0#,2#

main64781-12010-04iKE70,TE71..CP197908-198305

W/RR WINDOW WIPER,BLUE,BLUE,TRIM8#

main64781-12010-06iKE70,TE71..CP197908-198305

W/RR WINDOW WIPER,DARK BROWN,BROWN,TRIM4#

main64781-12030-01iKE70,TE7#..LB..(ARL,EUR,GEN,SAA)197908-198406

W/RR WINDOW WIPER,BLACK,BLACK,TRIM0#,2#

main64781-12030-04iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA)197908-198308

W/RR WINDOW WIPER,BLUE,BLUE,TRIM8#

main64781-12030-06iKE70,TE7#..LB197908-198406

W/RR WINDOW WIPER,DARK BROWN,BROWN,TRIM4#

main67751-13060-01iTE71..DV,WG;KE70..(DV,WG)..LHD;KE70..(DV,WG)..RHD..GEN197908-198508

BLACK,BLACK,TRIM2#

sub67751-13060

main67751-13060-03iCE70,KE70..(DV,WG)..(EUR,GEN)198305-198508

GRAY,GRAY,TRIM1#

sub67751-13060

main67751-13060-04iKE70..WG..SAA197908-198309

BLUE,BLUE,TRIM8#

sub67751-13060

main67751-13060-05iCE70,KE70..(DV,WG)..(EUR,GEN)198305-198508

BEIGE,BEIGE,TRIM4#

sub67751-13060

main67751-13060-06iKE70,TE71..DV,WG197908-198008

LIGHT BROWN,BROWN,TRIM4#

sub67751-13060

main67751-13060-13iCE70,KE70..WG..(EUR,GEN)198305-198707

GRAY,GRAY,TRIM1#

sub67751-13060

main67751-13060-16iTE71..DV,WG;KE70..(DV,WG)..LHD;KE70..(DV,WG)..RHD..GEN198008-198508

LIGHT BROWN,BROWN,TRIM4#

sub67751-13060

main67751-13060-26iKE70..SA198508-198707

BROWN,LIGHT BROWN,TRIM4#

sub67751-13060

main67751-13070-01iKE70..WG..SAA197908-198308

W/RR WINDOW WIPER,BLACK,BLACK,TRIM2#

sub67751-13070

main67751-13070-04iKE70..WG..SAA197908-198308

W/RR WINDOW WIPER,BLUE,BLUE,TRIM8#

sub67751-13070

main67751-13070-06iKE70,TE71..WG197908-198008

W/RR WINDOW WIPER,LIGHT BROWN,BROWN,TRIM4#

sub67751-13070

main67751-13070-16iKE70..WG..SAA198008-198308

W/RR WINDOW WIPER,LIGHT BROWN,BROWN,TRIM4#

sub67751-13070

main67751-13080-01iAE71198501-198508

BLACK,BLACK,TRIM0#,2#

sub67751-13080

main67751-13080-03iAE71..SA198508-198707

GRAY,GRAY,TRIM1#

sub67751-13080

main67751-13080-16iAE71198501-198508

LIGHT BROWN,BROWN,TRIM4#

sub67751-13080

main67751-13080-26iAE71..SA198508-198707

BROWN,LIGHT BROWN,TRIM4#

sub67751-13080

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-06017-01iKE70,TE7#..CP,LB198108-198406

BLACK,BLACK,TRIM0#,2#

sub90467-06017

main90467-06017-01iKE70,TE71..(DV,WG)..(ARL,GEN,SA,SAA)198104-198503

BLACK,BLACK,TRIM2#

sub90467-06017

main90467-06017-04iKE70..2D..ARL198104-198309

BLUE,BLUE,TRIM8#

sub90467-06017

main90467-06017-06iKE70,TE71..DV,WG198104-198503

LIGHT BROWN,BROWN,TRIM4#

sub90467-06017

main90467-06017-13iCE70,KE70..(DV,WG)..(EUR,GEN)198305-198503

GRAY,GRAY,TRIM1#

sub90467-06017

main90467-06017-16iKE70,TE7#..CP,LB198108-198406

DARK BROWN,BROWN,TRIM4#

sub90467-06017

main90467-06017-25iAE71..STD198305-198503

BEIGE,BEIGE,TRIM4#

sub90467-06017

main90467-07041-33iCE70,KE70..EUR,GEN198503-198508

GRAY,GRAY,TRIM1#

sub90467-07041

main90467-07041-35iCE70,KE70..EUR,GEN198503-198508

BEIGE,BROWN,TRIM4#

sub90467-07041

main90467-07041-46iAE71,CE70,KE70198508-198707

BROWN,BROWN,TRIM4#

sub90467-07041

main90467-07041-53iAE71,CE70,KE70198508-198707

GRAY,GRAY,TRIM1#

sub90467-07041

main90467-08015-01iKE70,TE71..DV,WG197908-198104

BLACK,BLACK,TRIM2#

sub90467-08015

main90467-08015-04iKE70,TE71..DV,WG197908-198104

BLUE,BLUE,TRIM8#

sub90467-08015

main90467-08015-06iKE70,TE71..DV,WG197908-198008

LIGHT BROWN,BROWN,TRIM4#

sub90467-08015

main90467-08015-16iKE70,TE71..DV,WG198008-198104

LIGHT BROWN,BROWN,TRIM4#

sub90467-08015

main90467-08114-11iKE70,TE7#..(CP,LB)..(ARL,EUR,GEN)197908-198108

BLACK,BLACK,TRIM0#,2#

sub90467-08114

main90467-08114-24iKE70,TE7#..(CP,LB)..(ARL,EUR,GEN)197908-198108

BLUE,BLUE,TRIM8#

sub90467-08114

main90467-08114-36iKE70,TE7#..CP,LB197908-198108

DARK BROWN,BROWN,TRIM4#

sub90467-08114

68131GLASS, BACK DOOR

main68105-12040iKE70,TE71..CP197908-198305

*TT,T=4.0,W/DEFOGGER

main68105-12050iKE70,TE71..LB..(EUR,GEN);TE72..(SE,XE)..(ARL,EUR)197908-198406

*TT,T=4.0,W/DEFOGGER

main68105-12060iKE70,TE71..CP..LHD..EUG197908-198305

*TT,T=4.0,W/HEAVY DEFOGGER

main68105-12070iKE70,TE7#..LB..LHD..(EUG,SDN)197908-198305

*TT,T=4.0,W/HEAVY DEFOGGER

main68105-13020iKE70..(DV,WG)..STD..ARL197908-198308

*TEM,T=4.0,W/DEFOGGER

main68105-13050iCE70,KE70..(DV,WG)..LHD..EUR197908-198308

*TEM,T=4.0,W/HEAVY DEFOGGER

sub68105-13051

main68105-13051iCE70,KE70..LHD..EUR198308-198707

*TEM,T=4.0,W/HEAVY DEFOGGER

main68105-13070iAE71,KE70..(DV,WG)..(3FC,4F)..GEN198308-198707

*TEM,T=4.0,W/DEFOGGER

main68131-12020iKE70,TE71..CP..GEN197908-198305

*TT,T=4.0

sub68105-12040

main68131-12070iKE70,TE71..LB..(GEN,SAA)197908-198406

*TT,T=4.0

sub68105-12050

main68131-13080iAE71,CE70,KE70,TE71..DV197908-198707

*TEM,T=4.0

sub68105-13070

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-12030iKE70,TE71..CP..DX197908-198305

main68291-12040iTE71..CP..5F197908-198305

sub68291-12030

main68291-12050iKE70,TE7#..LB..(DX,SE,XE)197908-198406

main68291-12060iTE72..SE..SA;TE71..LB..LHD..(GT,XE)198108-198401

main68291-13070iKE70..2D..ARL197908-198707

main68291-13090iKE70..WG..SAA197908-198308

W/MOULDING

main68291-13090iKE70..WG..ARL198108-198305

9054109114

main90541-09114

9095001260

main90950-01260

9095001261

main90950-01261

9095001290

main90950-01290

10 parts on this diagram · 3 diagrams in section
