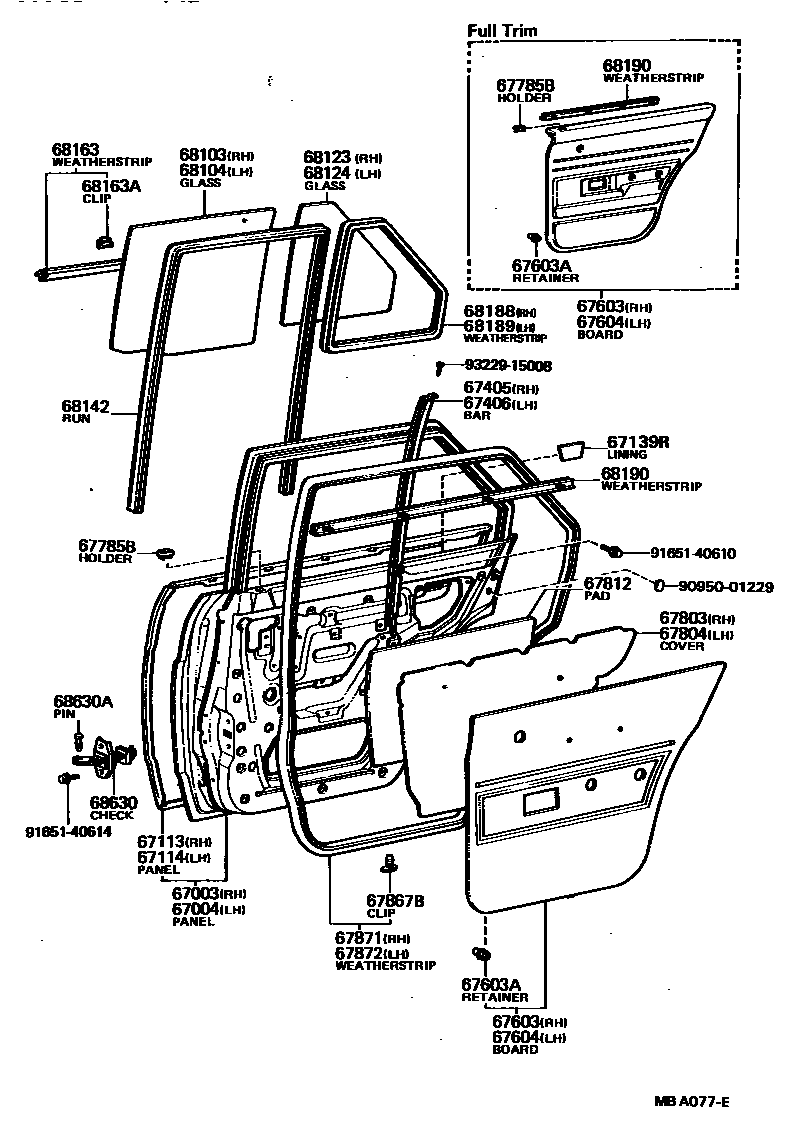

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
SAUDI ARABIA SPEC
*GIS
*GIS
67004PANEL SUB-ASSY, REAR DOOR, LH
SAUDI ARABIA SPEC
*GIS
*GIS
67113PANEL, REAR DOOR, OUTER RH
*GIS
SAUDI ARABIA SPEC
67114PANEL, REAR DOOR, OUTER LH
*GIS
SAUDI ARABIA SPEC
67139RLINING, DOOR OUTSIDE PANEL REINFORCEMENT
67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
SEMI TRIM,W/MOULDING,BLACK,BLACK,TRIM2#
SEMI TRIM,W/MOULDING,BLUE,BLUE,TRIM8#
SEMI TRIM,W/MOULDING,L-BROWN,BROWN,TRIM4#
SEMI TRIM,W/MOULDING,IVORY,IVORY,TRIM0#
SEMI TRIM,W/MOULDING,L-BROWN,BROWN,TRIM4#
W/ARMREST,BLACK,BLACK,TRIM2#
W/ARMREST,BLUE,BLUE,TRIM8#
W/ARMREST,L-BROWN,BROWN,TRIM4#
W/ARMREST,IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
HIGH GRADE PACKAGE,BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
HIGH GRADE PACKAGE,BLUE,BLUE,TRIM8#
HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#
L-BROWN,BROWN,TRIM4#
HIGH GRADE PACKAGE,IVORY,IVORY,TRIM0#
L-BROWN,BROWN,TRIM4#
HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
IVORY,IVORY,TRIM0#
SEMI TRIM,BLACK,BLACK,TRIM2#
SEMI TRIM,BLUE,BLUE,TRIM8#
SEMI TRIM,L-BROWN,BROWN,TRIM4#
SEMI TRIM,IVORY,IVORY,TRIM0#
SEMI TRIM,L-BROWN,BROWN,TRIM4#
W/PULL HANDLE,BLACK,BLACK,TRIM2#
W/PULL HANDLE,BLUE,BLUE,TRIM8#
W/PULL HANDLE,L-BROWN,BROWN,TRIM4#
W/PULL HANDLE,IVORY,IVORY,TRIM0#
CAMPAIGN,SWEDEN SPEC,BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
SEMI TRIM,BLACK,BLACK,TRIM2#
SEMI TRIM,BLUE,BLUE,TRIM8#
SEMI TRIM,L-BROWN,BROWN,TRIM4#
SEMI TRIM,L-BROWN,BROWN,TRIM4#
HIGH GRADE PACKAGE,BLACK,BLACK,TRIM2#
HIGH GRADE PACKAGE,BLUE,BLUE,TRIM8#
HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#
HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
GRAY,LIGHT GRAY,TRIM1#
BROWN,LIGHT BROWN,TRIM4#
67603ARETAINER(FOR REAR DOOR TRIM BOARD)
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
SEMI TRIM,W/MOULDING,BLACK,BLACK,TRIM2#
SEMI TRIM,W/MOULDING,BLUE,BLUE,TRIM8#
SEMI TRIM,W/MOULDING,L-BROWN,BROWN,TRIM4#
SEMI TRIM,W/MOULDING,IVORY,IVORY,TRIM0#
SEMI TRIM,W/MOULDING,L-BROWN,BROWN,TRIM4#
W/ARMREST,BLACK,BLACK,TRIM2#
W/ARMREST,BLUE,BLUE,TRIM8#
W/ARMREST,L-BROWN,BROWN,TRIM4#
W/ARMREST,IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
HIGH GRADE PACKAGE,BLACK,BLACK,TRIM2#
HIGH GRADE PACKAGE,BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#
L-BROWN,BROWN,TRIM4#
HIGH GRADE PACKAGE,IVORY,IVORY,TRIM0#
L-BROWN,BROWN,TRIM4#
HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
SEMI TRIM,BLACK,BLACK,TRIM2#
SEMI TRIM,BLUE,BLUE,TRIM8#
SEMI TRIM,L-BROWN,BROWN,TRIM4#
SEMI TRIM,IVORY,IVORY,TRIM0#
SEMI TRIM,L-BROWN,BROWN,TRIM4#
W/PULL HANDLE,BLACK,BLACK,TRIM2#
W/PULL HANDLE,BLUE,BLUE,TRIM8#
W/PULL HANDLE,L-BROWN,BROWN,TRIM4#
W/PULL HANDLE,IVORY,IVORY,TRIM0#
CAMPAIGN,SWEDEN SPEC,BLUE,BLUE,TRIM8#
SEMI TRIM,BLACK,BLACK,TRIM2#
SEMI TRIM,BLUE,BLUE,TRIM8#
SEMI TRIM,L-BROWN,BROWN,TRIM4#
SEMI TRIM,L-BROWN,BROWN,TRIM4#
HIGH GRADE PACKAGE,BLACK,BLACK,TRIM2#
HIGH GRADE PACKAGE,BLUE,BLUE,TRIM8#
HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#
HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
GRAY,LIGHT GRAY,TRIM1#
BROWN,LIGHT BROWN,TRIM4#
67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
W/FULL TRIM
67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
SAUDI ARABIA SPEC
67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH
SAUDI ARABIA SPEC
67812PAD, REAR DOOR SILENCER
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TT,T=4.0
*TT,T=3.5
*TT,T=3.5
68104GLASS SUB-ASSY, REAR DOOR, LH
*TT,T=3.5
*TEM,T=3.5
*TT,T=3.5
68123GLASS, REAR DOOR WINDOW, RH
*TT,T=4.0
*TT,T=3.5
*TT,T=3.5
68124GLASS, REAR DOOR WINDOW, LH
*TT,T=4.0
*TEM,T=4.0
*TT,T=3.5
*TT,T=4.0
*TT,T=3.5
68142RUN, REAR DOOR GLASS
68163WEATHERSTRIP, REAR DOOR GLASS, OUTER
68163ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
main68190-12060iKE70..WG..4D..DX;KE70,TE71..4D..(DX,XL)..GEN;KE70..SED..LHD..4D..DX..EUG¥2,500197908-198108
HIGH GRADE PACKGE
W/FULL TRIM
W/SEMI TRIM
68630CHECK ASSY, REAR DOOR
68630APIN(FOR REAR DOOR CHECK)
9095001229
9165140610
9165140614
9322915008
33 parts on this diagram · 1 diagram in section
