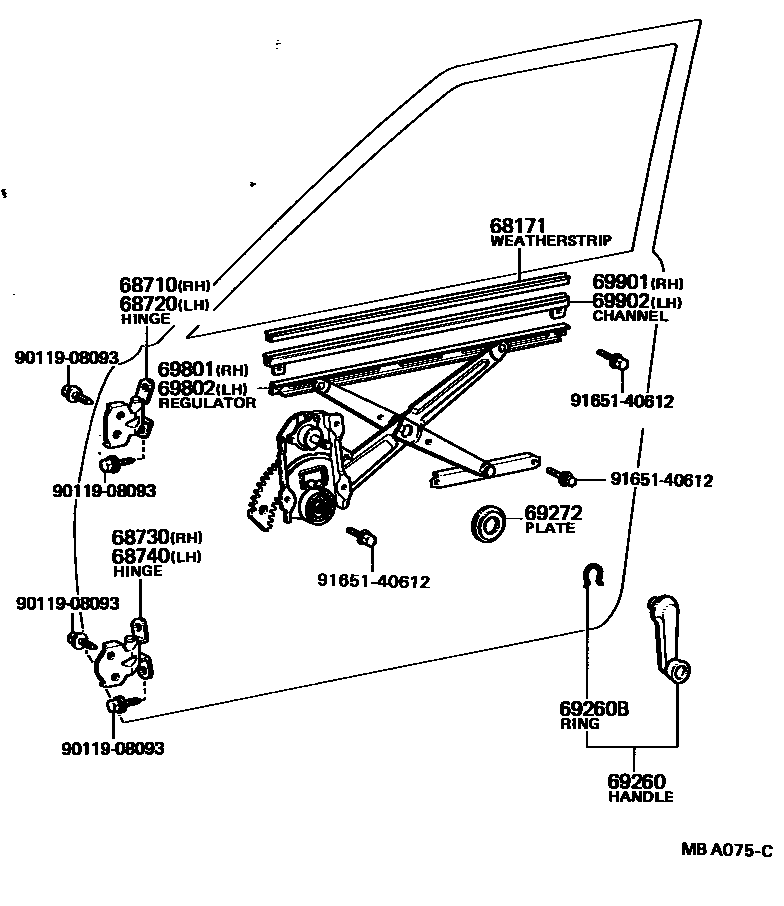

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1 0004 1

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-22020iAE71,CE70,KE70,TE7#..DV,SED,WG197908-198707

sub69971-22010

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12070iKE70,TE7#..CP,LB197908-198406

main68750-14010iAE71,CE70,KE70,TE7#..DV,SED,WG197908-198707

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12070iKE70,TE7#..CP,LB197908-198406

main68760-14010iAE71,CE70,KE70,TE7#..DV,SED,WG197908-198707

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-14020iKE70,TE7#..CP,LB197908-198406

main68730-20070iAE71,CE70,KE70,TE7#..DV,SED,WG197908-198707

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-14020iKE70,TE7#..CP,LB197908-198406

main68740-20070iAE71,CE70,KE70,TE7#..DV,SED,WG197908-198707

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-23iAE71,KE70..GEN,SA198508-198707

GRAY,GRAY,TRIM1#

sub69260-10040

sub69260-16010

main69260-10040-40iAE71,KE70..GEN,SA198508-198707

BROWN,LIGHT BROWN,TRIM4#

sub69260-10040

sub69260-16010

main69260-12010-01iKE70..4D..ARL198108-198305

BLACK,BLACK,TRIM0#,2#

sub69260-12010

main69260-12010-04iKE70..4D..ARL197908-198305

BLUE,BLUE,TRIM8#

sub69260-12010

main69260-12010-05iTE7#..4D..SA197908-198008

BEIGE,BEIGE,TRIM4#

sub69260-12010

main69260-12010-11iTE72..MTM;KE70,TE71..GEN;KE70,TE71..LHD..EUR197908-198204

BLACK,BLACK,TRIM0#,2#

sub69260-12010

main69260-12010-26iTE71..LHD..EUG;KE70,TE72..CP,LB;TE71..2D..(GEN,SA)197908-198204

DARK BROWN,BROWN,TRIM4#

sub69260-12010

main69260-12010-36iKE70,TE7#..(DX,GL)..SA198008-198305

LIGHT BROWN,BROWN,TRIM4#

sub69260-12010

main69260-12050-01iKE70,TE71..RHD..EUG197908-198108

KOJIMA,BLACK,BLACK,TRIM0#,2#

sub69260-12050

main69260-12050-04iKE70,TE71..RHD..EUG197908-198108

KOJIMA,BLUE,BLUE,TRIM8#

sub69260-12050

main69260-12050-05iKE70..RHD..EUG197908-198008

KOJIMA,BEIGE,BEIGE,TRIM4#

sub69260-12050

main69260-12050-06iTE71..RHD..EUG197908-198108

KOJIMA,DARK BROWN,BROWN,TRIM4#

sub69260-12050

main69260-12050-16iKE70..RHD..EUG198008-198108

KOJIMA,LIGHT BROWN,BROWN,TRIM4#

sub69260-12050

main69260-12060-01iCE70..LHD;TE72..EUR,SA;KE70..LHD..4D;TE71..DX,GL,GT,STD;KE70..RHD..4D..(GEN,SA);TE71..RHD..(SR,XE)..GEN;KE70..2D..(DX,STD)..(EUR,GEN);KE70,TE71..LHD..2D..(GL,SR,XE)198108-198309

KOJIMA,BLACK,BLACK,TRIM0#,2#

sub69260-14020

main69260-12060-06iKE70,TE72..2D..ARL198108-198309

KOJIMA,DARK BROWN,BROWN,TRIM4#

sub69260-14020

main69260-12060-14iKE70,TE71..SAA198108-198309

KOJIMA,BLUE,BLUE,TRIM8#

sub69260-14020

main69260-12070-01iCE70,KE70,TE71..RHD..EUG198108-198305

KOJIMA,BLACK,BLACK,TRIM0#,2#

sub69260-14030

main69260-12070-06iCE70,KE70,TE71..RHD..EUG198108-198305

KOJIMA,DARK BROWN,BROWN,TRIM4#

sub69260-14030

main69260-12070-14iCE70,KE70,TE71..RHD..EUG198108-198305

KOJIMA,BLUE,BLUE,TRIM8#

sub69260-14030

main69260-14020-01iCE70..LHD;TE72..EUR,SA;KE70..LHD..4D;TE71..DX,GL,GT,STD;KE70..RHD..4D..(GEN,SA);TE71..RHD..(SR,XE)..GEN;KE70..2D..(DX,STD)..(EUR,GEN);KE70,TE71..LHD..2D..(GL,SR,XE)198108-198305

AISIN,BLACK,BLACK,TRIM0#,2#

sub69260-14020

sub69260-22030

main69260-14020-01iKE70..(DV,WG)..ARL198305-198309

AISIN,BLACK,BLACK,TRIM2#

sub69260-14020

sub69260-22030

main69260-14020-01iAE71,KE70..WG..ARL198309-198410

BLACK,BLACK,TRIM2#

sub69260-14020

sub69260-22030

main69260-14020-01iAE71,KE70..SED..ARL;AE71,KE70,TE7#..GEN,SA,SAA198305-198508

BLACK,BLACK,TRIM0#,2#

sub69260-14020

sub69260-22030

main69260-14020-06iKE70,TE72..2D..ARL198108-198309

AISIN,DARK BROWN,BROWN,TRIM4#

sub69260-14020

sub69260-22030

main69260-14020-06iAE71,KE70..SED..ARL;AE71,KE70,TE7#..GEN,SA,SAA198305-198508

DARK BROWN,BROWN,TRIM4#

sub69260-14020

sub69260-22030

main69260-14020-13iAE71..STD198305-198508

GRAY,GRAY,TRIM1#

sub69260-14020

sub69260-22030

main69260-14020-14iKE70,TE72..2D..ARL198108-198309

AISIN,BLUE,BLUE,TRIM8#

sub69260-14020

sub69260-22030

main69260-14020-25iAE71..STD198305-198508

BEIGE,BEIGE,TRIM4#

sub69260-14020

sub69260-22030

main69260-14030-01iCE70,KE70,TE71..RHD..EUG198108-198305

AISIN,BLACK,BLACK,TRIM0#,2#

sub69260-14030

main69260-14030-06iCE70,KE70,TE71..RHD..EUG198108-198305

AISIN,DARK BROWN,BROWN,TRIM4#

sub69260-14030

main69260-14030-13iCE70,KE70..EUR198305-198508

GRAY,GRAY,TRIM1#

sub69260-14030

main69260-14030-14iCE70,KE70,TE71..RHD..EUG198108-198305

AISIN,BLUE,BLUE,TRIM8#

sub69260-14030

main69260-14030-23iCE70,KE70..EUR198508-198707

GRAY,GRAY,TRIM1#

sub69260-14030

main69260-14030-25iCE70,KE70..EUR198305-198508

BEIGE,BEIGE,TRIM4#

sub69260-14030

main69260-14030-36iCE70,KE70..EUR198508-198707

BROWN,BROWN,TRIM4#

sub69260-14030

main69260-20050-01iKE70,TE71..RHD..EUG197908-198108

AISIN,BLACK,BLACK,TRIM0#,2#

sub69260-20050

main69260-20050-04iKE70,TE71..RHD..EUG197908-198108

AISIN,BLUE,BLUE,TRIM8#

sub69260-20050

main69260-20050-05iKE70..RHD..EUG197908-198008

AISIN,BEIGE,BEIGE,TRIM4#

sub69260-20050

main69260-20050-06iTE71..RHD..EUG197908-198108

AISIN,DARK BROWN,BROWN,TRIM4#

sub69260-20050

main69260-20050-16iKE70..RHD..EUG198008-198108

AISIN,LIGHT BROWN,BROWN,TRIM4#

sub69260-20050

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iKE70,TE7#..EUR,GEN,SAA198108-198707

sub90520-01274

main90520-01274iKE70..4D..ARL197908-198305

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-16010iAE71,CE70,KE70198508-198707

sub69268-20020

main69285-22010iAE71,CE70,KE70,TE7#197908-198508

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-12140iAE71,CE70,KE70,TE7#..DV,SED,WG197908-198707

main69810-12151iKE70,TE7#..CP,LB197908-198204

main69810-12152iKE70,TE7#..CP,LB198108-198406

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-12140iAE71,CE70,KE70,TE7#..DV,SED,WG197908-198707

main69820-12151iTE7#..SE..SA197908-198204

main69820-12152iKE70,TE7#..CP,LB198108-198406

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-10050iKE70..WG..4F..GEN198305-198408

GLASS T=3.5

sub69901-12140

main69901-12080iAE71,CE70,KE70..2D..(ARL,EUR,GEN)198305-198408

GLASS T=4.0

main69901-12080iCE70,KE70,TE7#..DV,SED,WG197908-198305

main69901-12140iCE70,KE70..DX..EUR198408-198707

GLASS T=3.5

main69901-87002iKE70..4D..GEN198408-198707

main69901-87002iAE71,KE70,TE71..4D..(ARL,GEN,SA)198408-198508

GLASS T=4.0

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-10050iKE70..WG..4F..GEN198305-198408

GLASS T=3.5

sub69901-12140

main69901-12080iAE71,KE70,TE7#..4D..(ARL,GEN,SA,SAA)198305-198408

GLASS T=4.0

main69901-12080iCE70,KE70,TE7#..DV,SED,WG197908-198305

main69901-12140iCE70,KE70..DX..EUR198408-198707

GLASS T=3.5

main69901-87002iAE71,KE70,TE71..4D..(ARL,GEN,SA)198408-198707

GLASS T=4.0

main69901-87002iCE70,KE70..2D..(EUR,GEN)198408-198707

9011908093

main90119-08093

9165140612

main91651-40612
