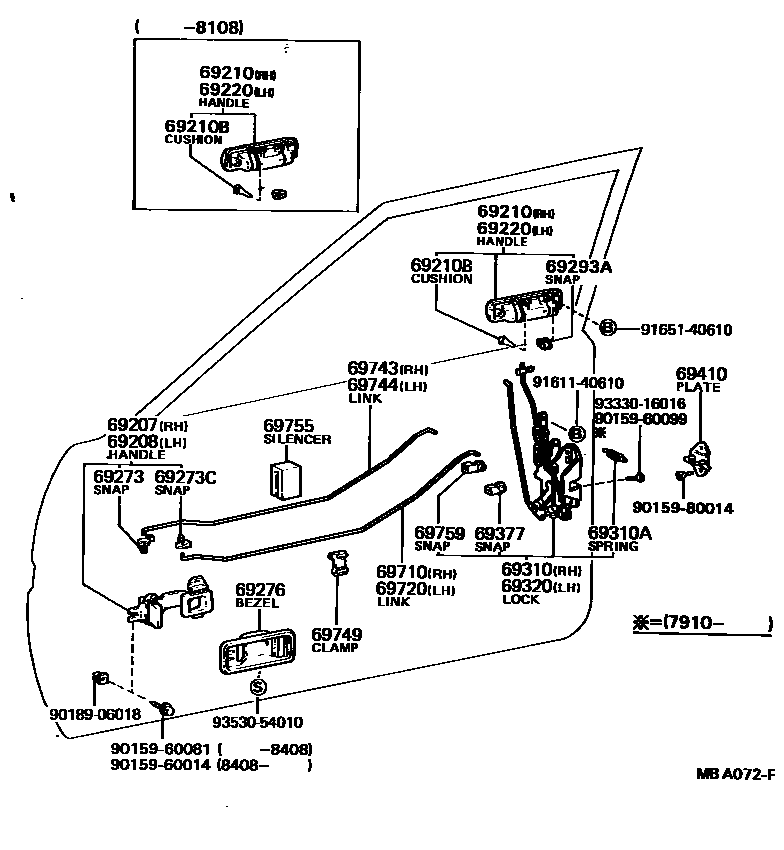

FRONT DOOR LOCK & HANDLE

0001 1 0002 1 0003 1 0007 1

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12050-01iTE7#..RHD..(SE,XE)198108-198401

BLACK,BLACK,TRIM0#,2#

main69205-12050-04iTE7#..RHD..(SE,XE)..(ARL,EUR,GEN)198108-198305

BLUE,BLUE,TRIM8#

main69205-12050-06iTE7#..RHD..(SE,XE)198108-198401

DARK BROWN,BROWN,TRIM4#

main69205-12060-01iKE70..RHD..2D;TE71..RHD..2D..(DX,SR,STD)..(GEN,SA)197908-198406

BLACK,BLACK,TRIM0#,2#

main69205-12060-01iKE70,TE71..2D..STD..(ARL,GEN,SA)198305-198508

BLACK,BLACK,TRIM2#

main69205-12060-03iCE70,KE70..2D..(EUR,GEN)198305-198508

GRAY,GRAY,TRIM1#

main69205-12060-04iCE70,KE70,TE7#..LHD..2D197908-198309

BLUE,BLUE,TRIM8#

main69205-12060-05iKE70..(DV,SED,WG)..2D..(EUR,GEN)197908-198008

BEIGE,BEIGE,TRIM4#

main69205-12060-06iTE71..RHD..2D..(DX,SR)..GEN;KE70..RHD..2D..(ARL,EUR,GEN)197908-198508

DARK BROWN,BROWN,TRIM4#

main69205-12060-13iCE70,KE70..2D198508-198707

GRAY,LIGHT GRAY,TRIM1#

main69205-12060-15iAE71,CE70,KE70..2D..(ARL,EUR,GEN)198305-198508

BEIGE,BEIGE,TRIM4#

main69205-12060-16iKE70..(DV,SED,WG)..2D..(EUR,GEN)198008-198108

LIGHT BROWN,BROWN,TRIM4#

main69205-12060-26iCE70,KE70..2D198508-198707

BROWN,BROWN,TRIM4#

main69205-16010-01iAE71,KE70,TE7#..4D..(ARL,GEN,SA,SAA)197908-198508

BLACK,BLACK,TRIM0#,2#

sub69205-16010¥1,710

main69205-16010-03iCE70,KE70..WG..4D..(EUR,GEN)198305-198508

GRAY,GRAY,TRIM1#

sub69205-16010¥1,710

main69205-16010-04iKE70..SAA197908-198308

BLUE,BLUE,TRIM8#

sub69205-16010¥1,710

main69205-16010-05iTE7#..4D;KE70..4D..(EUR,GEN)197908-198008

BEIGE,BEIGE,TRIM4#

sub69205-16010¥1,710

main69205-16010-06iAE71,KE70,TE7#..4D..(ARL,GEN,SA,SAA)198108-198508

DARK BROWN,BROWN,TRIM4#

sub69205-16010¥1,710

main69205-16010-13iAE71,CE70,KE70..4D198508-198707

GRAY,GRAY,TRIM1#

sub69205-16010¥1,710

main69205-16010-15iCE70,KE70..WG..4D..(EUR,GEN)198305-198508

BEIGE,BEIGE,TRIM4#

sub69205-16010¥1,710

main69205-16010-16iKE70,TE7#..(DX,GL)..SA198008-198305

LIGHT BROWN,BROWN,TRIM4#

sub69205-16010¥1,710

main69205-16010-26iAE71,CE70,KE70..4D198508-198707

BROWN,BROWN,TRIM4#

sub69205-16010¥1,710

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12050-01iTE7#..RHD..(SE,XE)198108-198401

FR,BLACK,BLACK,TRIM0#,2#

main69206-12050-04iTE7#..RHD..(SE,XE)..(ARL,EUR,GEN)198108-198305

FR,BLUE,BLUE,TRIM8#

main69206-12050-06iTE7#..RHD..(SE,XE)..(ARL,EUR,GEN)198108-198401

FR,DARK BROWN,BROWN,TRIM4#

main69206-12060-01iKE70,TE71..RHD..2D..(DX,SR)198108-198406

FR,BLACK,BLACK,TRIM0#,2#

sub69206-12060¥2,780

main69206-12060-01iKE70,TE7#..(CP,LB)..LHD197908-198309

BLACK,BLACK,TRIM0#,2#

sub69206-12060¥2,780

main69206-12060-01iKE70,TE71..2D..STD..(GEN,SA)198309-198508

BLACK,BLACK,TRIM2#

sub69206-12060¥2,780

main69206-12060-03iAE71,CE70,KE70..2D..(ARL,EUR,GEN)198305-198508

GRAY,GRAY,TRIM1#

sub69206-12060¥2,780

main69206-12060-04iCE70,KE70,TE71..(DV,SED,WG)..2D..(ARL,EUR,GEN)198108-198305

FR,BLUE,BLUE,TRIM8#

sub69206-12060¥2,780

main69206-12060-04iCE70,KE70,TE71..(DV,SED,WG)..2D..(ARL,EUR,GEN)197908-198309

BLUE,BLUE,TRIM8#

sub69206-12060¥2,780

main69206-12060-05iKE70..(DV,SED,WG)..2D..(EUR,GEN)197908-198008

BEIGE,BEIGE,TRIM4#

sub69206-12060¥2,780

main69206-12060-06iKE70,TE7#..CP,LB197908-198508

DARK BROWN,BROWN,TRIM4#

sub69206-12060¥2,780

main69206-12060-06iKE70,TE71..RHD..2D..(DX,SR)198108-198406

FR,DARK BROWN,BROWN,TRIM4#

sub69206-12060¥2,780

main69206-12060-13iCE70,KE70..2D198508-198707

GRAY,LIGHT GRAY,TRIM1#

sub69206-12060¥2,780

main69206-12060-15iCE70,KE70..2D..(EUR,GEN)198305-198508

BEIGE,BEIGE,TRIM4#

sub69206-12060¥2,780

main69206-12060-16iKE70..(DV,SED,WG)..2D..(EUR,GEN)198008-198108

LIGHT BROWN,BROWN,TRIM4#

sub69206-12060¥2,780

main69206-12060-26iCE70,KE70..2D198508-198707

BROWN,BROWN,TRIM4#

sub69206-12060¥2,780

main69206-16010-01iKE70,TE71..RHD..2D..(DX,SR)198108-198406

RR,BLACK,BLACK,TRIM0#,2#

sub69206-16010¥1,710

main69206-16010-01iCE70,KE70,TE7#..4D197908-198508

BLACK,BLACK,TRIM0#,2#

sub69206-16010¥1,710

main69206-16010-03iCE70,KE70..WG..4D..(EUR,GEN)198305-198508

GRAY,GRAY,TRIM1#

sub69206-16010¥1,710

main69206-16010-04iKE70..SAA197908-198308

BLUE,BLUE,TRIM8#

sub69206-16010¥1,710

main69206-16010-05iTE7#..4D;KE70..4D..(EUR,GEN)197908-198008

BEIGE,BEIGE,TRIM4#

sub69206-16010¥1,710

main69206-16010-06iCE70,KE70,TE7#..4D..(EUR,GEN,SA,SAA)198108-198508

DARK BROWN,BROWN,TRIM4#

sub69206-16010¥1,710

main69206-16010-13iAE71,CE70,KE70..4D198508-198707

GRAY,LIGHT GRAY,TRIM1#

sub69206-16010¥1,710

main69206-16010-15iCE70,KE70..WG..4D..(EUR,GEN)198305-198508

BEIGE,BEIGE,TRIM4#

sub69206-16010¥1,710

main69206-16010-16iTE7#..4D;KE70..DX..SA;KE70..4D..(EUR,GEN)198008-198305

LIGHT BROWN,BROWN,TRIM4#

sub69206-16010¥1,710

main69206-16010-26iAE71,CE70,KE70..4D198508-198707

BROWN,BROWN,TRIM4#

sub69206-16010¥1,710

main69206-20020iTE7#..RHD..(SE,XE)¥2,110198108-198401

RR,BLACK

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-12040iTE7#..LB..(GT,SE,XE)¥2,730197908-198707

main69210-12050iTE72..(SE,XE)..(EUR,SA)¥2,680197908-198210

sub69210-12070¥2,680

main69210-12070iKE70..CP,LB;TE71..LHD..4F..2D;TE71..(CP,LB)..(3FC,5F)..(DX,GT,SR)¥2,680198210-198305

sub69210-12071¥2,690

main69210-12071iAE71..STD¥2,690198305-198707

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021iAE71,KE70,TE7#..(DX,GL,STD)..SA¥310197908-198707

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-12040iAE71,KE70,TE7#..(DX,GL,STD)..SA¥2,610197908-198707

main69220-12050iTE72..(SE,XE)..(EUR,SA)¥2,570197908-198210

sub69220-12070¥2,680

main69220-12070iKE70..CP,LB;TE71..LHD..4F..2D;TE71..(CP,LB)..(3FC,5F)..(DX,GT,SR)¥2,680198210-198305

sub69220-12071¥2,690

main69220-12071iTE7#..LB¥2,690198305-198707

69273SNAP, DOOR INSIDE HANDLE ROD

main69273-30020iTE71..LHD..SR;TE71..RHD..SR..GEN;AE71,CE70,KE70,TE7#..2D..(DX,GL,GT,SE,STD,XE)¥260197908-198707

main69279-12010iAE71,CE70,KE70,TE7#..4D¥300197908-198707

69273CSNAP, DOOR INSIDE HANDLE LINK

main69279-10010iCE70,KE70,TE7#..LHD..2D¥250197908-198707

LH

main69279-12020iTE7#..RHD..(SE,XE)¥240198108-198401

RH

main69288-10010iCE70,KE70,TE7#..LHD..2D¥260197908-198707

RH

main69288-12010iTE7#..RHD..(SE,XE)..(ARL,EUR,GEN)¥240198108-198401

LH

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-12020-01iKE70,TE71..2D..STD..(ARL,GEN,SA)198305-198508

RH,BLACK,BLACK,TRIM2#

sub69277-12020¥990

main69277-12020-01iTE71..SR..GEN;CE70,KE70,TE7#..2D..(DX,GL,GT,SE,STD,XE)197908-198406

RH,BLACK,BLACK,TRIM0#,2#

sub69277-12020¥990

main69277-12020-03iCE70,KE70..2D..(EUR,GEN)198305-198508

RH,GRAY,GRAY,TRIM1#

sub69277-12020¥990

main69277-12020-04iKE70..2D..ARL197908-198309

RH,BLUE,BLUE,TRIM8#

sub69277-12020¥990

main69277-12020-05iKE70..(DV,SED,WG)..2D..(EUR,GEN)197908-198008

RH,BEIGE,BEIGE,TRIM4#

sub69277-12020¥990

main69277-12020-06iKE70,TE7#..CP,LB197908-198508

RH,DARK BROWN,BROWN,TRIM4#

sub69277-12020¥990

main69277-12020-13iCE70,KE70..2D198508-198707

RH,GRAY,LIGHT GRAY,TRIM1#

sub69277-12020¥990

main69277-12020-15iCE70,KE70..2D..(EUR,GEN)198305-198508

RH,BEIGE,BEIGE,TRIM4#

sub69277-12020¥990

main69277-12020-16iKE70..(DV,SED,WG)..2D..(EUR,GEN)198008-198108

RH,LIGHT BROWN,BROWN,TRIM4#

sub69277-12020¥990

main69277-12020-26iCE70,KE70..2D198508-198707

RH,BROWN,BROWN,TRIM4#

sub69277-12020¥990

main69277-16040-01iKE70..4D..STD..SA;KE70,TE71..4D..(ARL,EUR,GEN,SAA)197908-198508

BLACK,BLACK,TRIM0#,2#

sub69277-16040¥670

sub69277-89104¥670

main69277-16040-01iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)198108-198406

LH,RR,BLACK,BLACK,TRIM0#,2#

sub69277-16040¥670

sub69277-89104¥670

main69277-16040-04iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)198108-198305

LH,RR,BLUE,BLUE,TRIM8#

sub69277-16040¥670

sub69277-89104¥670

main69277-16040-04iCE70,KE70,TE71..4D..(ARL,EUR,GEN,SAA)197908-198308

BLUE,BLUE,TRIM8#

sub69277-16040¥670

sub69277-89104¥670

main69277-16040-05iTE7#..4D;KE70..4D..(EUR,GEN)197908-198008

BEIGE,BEIGE,TRIM4#

sub69277-16040¥670

sub69277-89104¥670

main69277-16040-06iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)198108-198508

DARK BROWN,BROWN,TRIM4#

sub69277-16040¥670

sub69277-89104¥670

main69277-16040-06iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)198108-198406

LH,RR,DARK BROWN,BROWN,TRIM4#

sub69277-16040¥670

sub69277-89104¥670

main69277-16040-16iKE70,TE7#..(DX,GL)..SA198008-198305

LIGHT BROWN,BROWN,TRIM4#

sub69277-16040¥670

sub69277-89104¥670

main69277-16040-33iCE70,KE70..WG..4D..(EUR,GEN)198305-198508

GRAY,GRAY,TRIM1#

sub69277-16040¥670

sub69277-89104¥670

main69277-16040-43iAE71,CE70,KE70..4D198508-198707

GRAY,LIGHT GRAY,TRIM1#

sub69277-16040¥670

sub69277-89104¥670

main69277-16040-45iCE70,KE70..WG..4D..(EUR,GEN)198305-198508

BEIGE,BEIGE,TRIM4#

sub69277-16040¥670

sub69277-89104¥670

main69277-16040-46iAE71,CE70,KE70..4D198508-198707

BROWN,BROWN,TRIM4#

sub69277-16040¥670

sub69277-89104¥670

main69278-12020-01iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)198108-198406

LH,FR,BLACK,BLACK,TRIM0#,2#

sub69278-12020¥990

main69278-12020-01iTE71..LHD..SR;TE71..RHD..SR..GEN;KE70,TE72..(2FC,4F,5F)..2D;TE71..2D..(DX,GT,SE,XE)..(EUR,GEN)197908-198308

LH,BLACK,BLACK,TRIM0#,2#

sub69278-12020¥990

main69278-12020-01iKE70,TE71..2D..STD..(ARL,GEN,SA)198305-198508

LH,BLACK,BLACK,TRIM2#

sub69278-12020¥990

main69278-12020-03iCE70,KE70..2D..(EUR,GEN)198305-198508

LH,GRAY,GRAY,TRIM1#

sub69278-12020¥990

main69278-12020-04iTE71..LHD..SR;TE71..RHD..SR..GEN;KE70,TE7#..2D..(DX,GT,SE,STD,XE)..(ARL,EUR,GEN)197908-198309

LH,BLUE,BLUE,TRIM8#

sub69278-12020¥990

main69278-12020-04iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)198108-198305

LH,FR,BLUE,BLUE,TRIM8#

sub69278-12020¥990

main69278-12020-05iKE70..(DV,SED,WG)..2D..(EUR,GEN)197908-198008

LH,BEIGE,BEIGE,TRIM4#

sub69278-12020¥990

main69278-12020-06iKE70..(DV,SED,WG)..2D..(ARL,EUR,GEN)197908-198508

LH,DARK BROWN,BROWN,TRIM4#

sub69278-12020¥990

main69278-12020-06iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)198108-198406

LH,FR,DARK BROWN,BROWN,TRIM4#

sub69278-12020¥990

main69278-12020-13iCE70,KE70..2D198508-198707

LH,GRAY,LIGHT GRAY,TRIM1#

sub69278-12020¥990

main69278-12020-15iCE70,KE70..2D..(EUR,GEN)198305-198508

LH,BEIGE,BEIGE,TRIM4#

sub69278-12020¥990

main69278-12020-16iKE70..(DV,SED,WG)..2D..(EUR,GEN)198008-198108

LH,LIGHT BROWN,BROWN,TRIM4#

sub69278-12020¥990

main69278-12020-26iCE70,KE70..2D198508-198707

LH,BROWN,BROWN,TRIM4#

sub69278-12020¥990

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12010iAE71..STD¥260198109-198707

RH

main69293-12020iKE70,TE7#..(CP,LB)..(DX,GT,SR)¥260198109-198707

LH

main69293-22010iAE71,KE70,TE7#..(DX,GL,STD)..SA¥280198109-198707

RH

main69293-22020iAE71,KE70..ARL¥280198109-198707

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-12070iAE71,CE70,KE70,TE71..(DV,SED,WG)..2D¥5,700197908-198707

main69310-12080iKE70,TE7#..4D¥5,700197908-198010

sub69310-12081¥5,700

main69310-12081iAE71,CE70,KE70,TE7#..4D¥5,700198010-198707

main69310-12090iKE70,TE7#..CP,LB¥8,600197908-198406

69310ASPRING(FOR FRONT DOOR LOCK)

main90506-08031iAE71,CE70,KE70,TE7#..DV,SED,WG¥170197908-198707

69320LOCK ASSY, FRONT DOOR, LH

main69320-12070iAE71,CE70,KE70,TE71..(DV,SED,WG)..2D¥5,700197908-198707

main69320-12080iKE70,TE7#..4D¥5,700197908-198010

sub69320-12081¥5,700

main69320-12081iAE71,CE70,KE70,TE7#..4D¥5,700198010-198707

main69320-12090iKE70,TE7#..(CP,LB)..LHD¥8,600197908-198308

main69320-12120iKE70,TE7#..(CP,LB)..RHD198108-198406

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69377-30020iAE71,CE70,KE70,TE7#¥270197908-198707

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-12040iAE71,CE70,KE70,TE7#¥1,050197908-198502

sub69410-90B02¥1,080

main69410-12070iAE71,CE70,KE70¥1,200198502-198707

sub69410-90B02¥1,080

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-12040iAE71,CE70,KE70,TE71..(DV,SED,WG)..2D¥680197908-198707

main69711-12050iAE71,CE70,KE70,TE7#..4D¥680197908-198707

main69711-12060iKE70,TE7#..CP,LB¥680197908-198406

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-12040iAE71,CE70,KE70,TE71..(DV,SED,WG)..2D¥680197908-198707

main69712-12050iAE71,CE70,KE70,TE7#..4D¥680197908-198707

main69712-12060iTE71..SE;TE72..2D..(EUR,SA);KE70,TE71..(CP,LB)..LHD¥680197908-198308

main69712-12070iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)198108-198406

69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH

main69733-12030iAE71,CE70,KE70,TE71..(DV,SED,WG)..2D¥680197908-198707

main69733-12040iKE70,TE7#..CP,LB197908-198406

69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH

main69734-12030iAE71,CE70,KE70,TE71..(DV,SED,WG)..2D¥680197908-198707

main69734-12040iKE70,TE7#..CP,LB¥680197908-198406

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12010iKE70,TE7#..4D¥140197908-198208

main69749-12030iTE71..LHD..SR;TE71..RHD..SR..GEN;AE71,CE70,KE70,TE7#..2D..(DX,GL,GT,SE,STD,XE)¥180197908-198707

main69749-30020iTE72..(4FC,5F)..GL;AE71,CE70,KE70,TE71..4D¥280198208-198707

69755SILENCER, FRONT DOOR LOCK LINK

main69759-12011iAE71,CE70,KE70,TE7#¥270197908-198707

FR SIDE

main69759-30021iKE70,TE7#..CP,LB¥250197908-198406

RR SIDE

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-12030iAE71,CE70,KE70,TE7#..DV,SED,WG¥210197908-198707

9015960014

main90159-60014¥170

9015960081

main90159-60081¥70

9015960099

main90159-60099¥120

9015980014

main90159-80014¥120

9018906018

main90189-06018¥80

9161140610

main91611-40610¥140

9165140610

main91651-40610¥160

9333016016

main93330-16016¥140

9353054010

main93530-54010¥70

30 parts on this diagram · 4 diagrams in section
