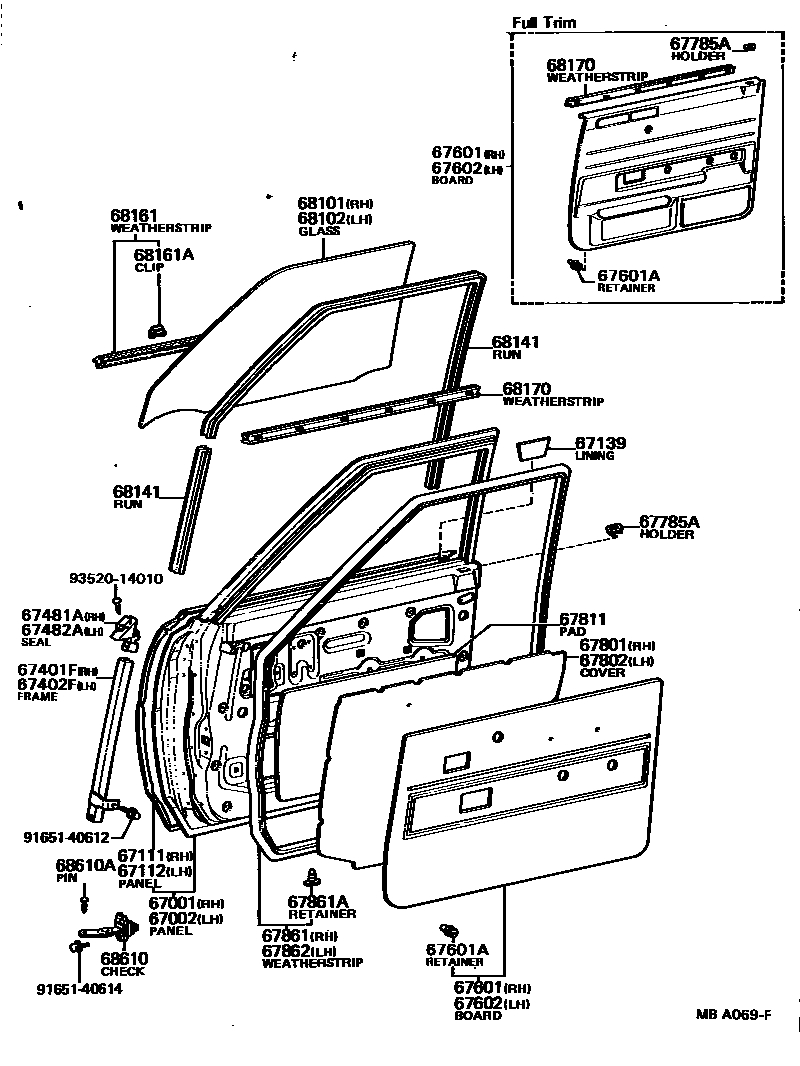

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
W/O MIRROR
W/O MIRROR
W/O MIRROR
W/MIRROR
SAUDI ARABIA SPEC
W/MIRROR
*GIS
SAUDI ARABIA SPEC
W/MIRROR
*GIS
*GIS
67002PANEL SUB-ASSY, FRONT DOOR, LH
W/O MIRROR
W/O MIRROR
W/O MIRROR
W/MIRROR
SAUDI ARABIA SPEC
W/MIRROR
*GIS
SAUDI ARABIA SPEC
W/MIRROR
*GIS
*GIS
67111PANEL, FRONT DOOR, OUTER RH
*GIS
SAUDI ARABIA SPEC
*GIS
*GIS
SAUDI ARABIA SPEC
67112PANEL, FRONT DOOR, OUTER LH
*GIS
*GIS
*GIS
SAUDI ARABIA SPEC
SAUDI ARABIA SPEC
67139LINING, DOOR OUTSIDE PANEL REINFORCEMENT
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH
67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
SEMI TRIM,BLACK,BLACK,TRIM2#
SEMI TRIM,BLUE,BLUE,TRIM8#
SEMI TRIM,L-BROWN,BROWN,TRIM4#
SEMI TRIM,IVORY,IVORY,TRIM0#
SEMI TRIM,L-BROWN,BROWN,TRIM4#
W/PULL HANDLE,BLACK,BLACK,TRIM2#
W/PULL HANDLE,BLUE,BLUE,TRIM8#
W/PULL HANDLE,L-BROWN,BROWN,TRIM4#
W/PULL HANDLE,IVORY,IVORY,TRIM0#
SEMI TRIM,W/MOULDING,BLACK,BLACK,TRIM2#
SEMI TRIM,W/MOULDING,BLUE,BLUE,TRIM8#
SEMI TRIM,W/MOULDING,L-BROWN,BROWN,TRIM4#
SEMI TRIM,W/MOULDING,IVORY,IVORY,TRIM0#
SEMI TRIM,W/MOULDING,L-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
W/ARMREST,BLACK,BLACK,TRIM2#
W/ARMREST,BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
W/ARMREST,L-BROWN,BROWN,TRIM4#
W/ARMREST,IVORY,IVORY,TRIM0#
SEMI TRIM,W/MOULDING,BLACK,BLACK,TRIM2#
SEMI TRIM,W/MOULDING,BLUE,BLUE,TRIM8#
SEMI TRIM,W/MOULDING,L-BROWN,BROWN,TRIM4#
SEMI TRIM,W/MOULDING,IVORY,IVORY,TRIM0#
SEMI TRIM,W/MOULDING,L-BROWN,BROWN,TRIM4#
W/ARMREST,BLACK,BLACK,TRIM2#
W/ARMREST,BLUE,BLUE,TRIM8#
W/ARMREST,L-BROWN,BROWN,TRIM4#
W/ARMREST,IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
SEMI TRIM,BLACK,BLACK,TRIM2#
SEMI TRIM,BLUE,BLUE,TRIM8#
SEMI TRIM,L-BROWN,BROWN,TRIM4#
SEMI TRIM,IVORY,IVORY,TRIM0#
SEMI TRIM,L-BROWN,BROWN,TRIM4#
W/PULL HANDLE,BLACK,BLACK,TRIM2#
W/PULL HANDLE,BLUE,BLUE,TRIM8#
W/PULL HANDLE,L-BROWN,BROWN,TRIM4#
W/PULL HANDLE,IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
GRAY,LIGHT GRAY,TRIM1#
BROWN,LIGHT BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
GRAY,LIGHT GRAY,TRIM1#
BROWN,LIGHT BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
GRAY,LIGHT GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
BROWN,LIGHT BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
GRAY,LIGHT GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
BROWN,LIGHT BROWN,TRIM4#
GRAY,LIGHT GRAY,TRIM1#
BROWN,LIGHT BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
W/FB SEAT,BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
PHILIPPINE SPEC,BLACK,BLACK,TRIM2#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
PHILIPPINE SPEC,BLUE,BLUE,TRIM8#
PHILIPPINE SPEC,D-BROWN,BROWN,TRIM4#
D-BROWN,BROWN,TRIM4#
PHILIPPINE SPEC,IVORY,IVORY,TRIM0#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
W/FB SEAT,BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
BLACK & GRAY,BLACK,TRIM2#
BLUE & BLUE,BLUE,TRIM8#
D-BROWN & BEIGE,BROWN,TRIM4#
BLACK & GRAY,BLACK,TRIM2#
BLUE & IVORY,BLUE,TRIM0#
HIGH GRADE PACKAGE,BLACK,BLACK,TRIM2#
HIGH GRADE PACKAGE,BLUE,BLUE,TRIM8#
HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#
HIGH GRADE PACKAGE,IVORY,IVORY,TRIM0#
HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
HIGH GRADE PACKAGE,BLACK,BLACK,TRIM2#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
HIGH GRADE PACKAGE,BLUE,BLUE,TRIM8#
HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#
L-BROWN,BROWN,TRIM4#
HIGH GRADE PACKAGE,IVORY,IVORY,TRIM0#
HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#
L-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
CAMPAIGN,SWEDEN SPEC,BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
CAMPAIGN,BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK & GRAY,BLACK,TRIM2#
BLUE & IVORY,BLUE,TRIM0#
D-BROWN & BEIGE,BROWN,TRIM4#
BLUE & BLUE,BLUE,TRIM8#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
67601ARETAINER(FOR FRONT DOOR TRIM BOARD)
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
SEMI TRIM,BLACK,BLACK,TRIM2#
SEMI TRIM,BLUE,BLUE,TRIM8#
SEMI TRIM,L-BROWN,BROWN,TRIM4#
SEMI TRIM,IVORY,IVORY,TRIM0#
SEMI TRIM,L-BROWN,BROWN,TRIM4#
W/PULL HANDLE,BLACK,BLACK,TRIM2#
W/PULL HANDLE,BLUE,BLUE,TRIM8#
W/PULL HANDLE,L-BROWN,BROWN,TRIM4#
W/PULL HANDLE,IVORY,IVORY,TRIM0#
SEMI TRIM,W/MOULDING,BLACK,BLACK,TRIM0#,2#
SEMI TRIM,W/MOULDING,BLACK,BLACK,TRIM2#
SEMI TRIM,W/MOULDING,BLUE,BLUE,TRIM8#
SEMI TRIM,W/MOULDING,L-BROWN,BROWN,TRIM4#
SEMI TRIM,W/MOULDING,IVORY,IVORY,TRIM0#
SEMI TRIM,W/MOULDING,L-BROWN,BROWN,TRIM4#
W/ARMREST,BLACK,BLACK,TRIM2#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
W/ARMREST,BLUE,BLUE,TRIM8#
W/ARMREST,L-BROWN,BROWN,TRIM4#
L-BROWN,BROWN,TRIM4#
W/ARMREST,IVORY,IVORY,TRIM0#
HIGH GRADE PACKAGE,BLACK,BLACK,TRIM2#
HIGH GRADE PACKAGE,BLUE,BLUE,TRIM8#
HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#
HIGH GRADE PACKAGE,IVORY,IVORY,TRIM0#
HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
W/FB SEAT,BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
SEMI TRIM,W/MOULDING,BLACK,BLACK,TRIM2#
SEMI TRIM,W/MOULDING,BLUE,BLUE,TRIM8#
SEMI TRIM,W/MOULDING,L-BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
SEMI TRIM,W/MOULDING,IVORY,IVORY,TRIM0#
SEMI TRIM,W/MOULDING,L-BROWN,BROWN,TRIM4#
W/ARMREST,BLACK,BLACK,TRIM2#
W/ARMREST,BLUE,BLUE,TRIM8#
W/ARMREST,L-BROWN,BROWN,TRIM4#
W/ARMREST,IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
HIGH GRADE PACKAGE,BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
HIGH GRADE PACKAGE,BLUE,BLUE,TRIM8#
HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#
L-BROWN,BROWN,TRIM4#
HIGH GRADE PACKAGE,IVORY,IVORY,TRIM0#
L-BROWN,BROWN,TRIM4#
HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
SEMI TRIM,BLACK,BLACK,TRIM2#
SEMI TRIM,BLUE,BLUE,TRIM8#
SEMI TRIM,L-BROWN,BROWN,TRIM4#
SEMI TRIM,IVORY,IVORY,TRIM0#
SEMI TRIM,L-BROWN,BROWN,TRIM4#
W/PULL HANDLE,BLACK,BLACK,TRIM2#
W/PULL HANDLE,BLUE,BLUE,TRIM8#
W/PULL HANDLE,L-BROWN,BROWN,TRIM4#
W/PULL HANDLE,IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
W/FB SEAT,BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
CAMPAIGN,SWEDEN SPEC,BLUE,BLUE,TRIM8#
CANPAIGN,BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLACK,BLACK,TRIM2#
PHILIPPINE SPEC,BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
PHILIPPINE SPEC,BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
PHILIPPINE SPEC,D-BROWN,BROWN,TRIM4#
PHILIPPINE SPEC,IVORY,IVORY,TRIM0#
IVORY,IVORY,TRIM0#
BLACK & GRAY,BLACK,TRIM2#
BLUE & BLUE,BLUE,TRIM8#
D-BROWN & BEIGE,BROWN,TRIM4#
BLACK & GRAY,BLACK,TRIM2#
BLUE & IVORY,BLUE,TRIM0#
BLACK & GRAY,BLACK,TRIM2#
BLUE & BLUE,BLUE,TRIM8#
D-BROWN & BEIGE,BROWN,TRIM4#
BLACK & GRAY,BLACK,TRIM2#
BLUE & IVORY,BLUE,TRIM0#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK & GRAY,BLACK,TRIM2#
BLUE & IVORY,BLUE,TRIM0#
D-BROWN & BEIGE,BROWN,TRIM4#
BLUE & BLUE,BLUE,TRIM8#
GRAY,LIGHT GRAY,TRIM1#
BROWN,LIGHT BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
GRAY,LIGHT GRAY,TRIM1#
BROWN,LIGHT BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
GRAY,LIGHT GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
BROWN,LIGHT BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
GRAY,LIGHT GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
BROWN,LIGHT BROWN,TRIM4#
GRAY,LIGHT GRAY,TRIM1#
BROWN,LIGHT BROWN,TRIM4#
BLACK & GRAY,BLACK,TRIM2#
BLUE & IVORY,BLUE,TRIM0#
D-BROWN & BEIGE,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
67785AHOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
BLACK
BLACK
W/FULL TRIM
67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH
SAUDI ARABIA SPEC
67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH
SAUDI ARABIA SPEC
67811PAD, FRONT DOOR SILENCER
67861WEATHERSTRIP, FRONT DOOR, RH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
67862WEATHERSTRIP, FRONT DOOR, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=4.0
*TEM,T=4.0
*TT,T=4.0
*TEM,T=4.0
*TEM,T=5.0
*TT,T=5.0
*TT,T=5.0
*TT,T=5.0
*TT,T=5.0
*TT,T=4.0
*TEM,T=4.0
*TT,T=4.0
*TEM,T=4.0
*TT,T=5.0
*TT,T=5.0
*TT,T=3.5
*TEM,T=3.5
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=4.0
*TEM,T=4.0
*TT,T=4.0
*TEM,T=4.0
*TEM,T=5.0
*TT,T=5.0
*TT,T=5.0
*TT,T=5.0
*TT,T=5.0
*TT,T=4.0
*TEM,T=4.0
*TT,T=4.0
*TEM,T=4.0
*TT,T=5.0
*TT,T=5.0
*TT,T=3.5
*TEM,T=3.5
68141RUN, FRONT DOOR GLASS
L=1860
L=1678
L=1748
L=1779
L=1689
L=1758
L=1848
L=1847
L=1714
L=444
L=444,TG
L=444
L=444,VINYL CHLORIDE
68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER
RH
RH
RH
RH
RH
RH
LH
LH
LH
LH
LH
LH
68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
RH
RH
HIGH GRADE PACKAGE
main68170-12150iKE70..WG..4D..DX;KE70,TE71..4D..(DX,XL)..GEN;KE70..SED..LHD..4D..DX..EUR197908-198108
HIGH GRADE PACKAGE
RH
RH,W/SEMI TRIM
RH
RH,W/SEMI TRIM
RH
RH,W/FULL TRIM
RH
LH
LH
LH
LH,W/SEMI TRIM
LH
LH,W/SEMI TRIM
LH
LH,W/FULL TRIM
LH
68610CHECK ASSY, FRONT DOOR
68610APIN(FOR FRONT DOOR CHECK)
9165140612
main91651-40612
9165140614
main91651-40614
9352014010
main93520-14010
30 parts on this diagram · 6 diagrams in section
