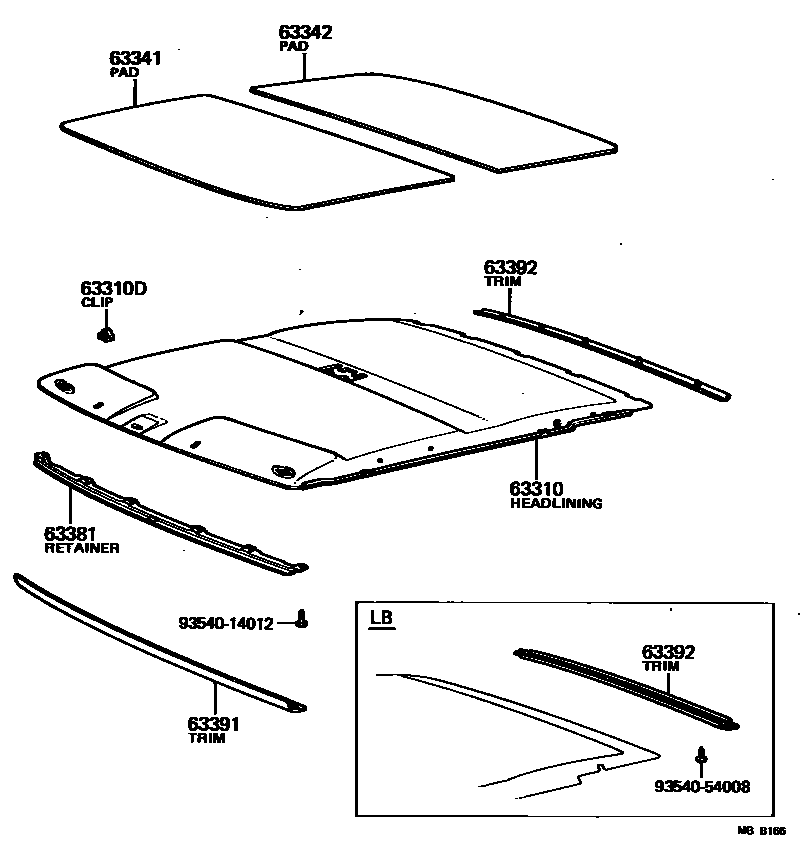

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1

63310HEADLINING ASSY, ROOF

main63310-12440-01iKE70..SED..SAA197908-198308

IVORY & BLACK,BLACK,TRIM0#,2#

sub63310-12440

main63310-12440-04iKE70..SED..SAA197908-198308

IVORY & BLUE,BLUE,TRIM8#

sub63310-12440

main63310-12440-06iKE70,TE71..SED..(EUR,GEN)197908-198008

IVORY & L-BROWN,BROWN,TRIM4#

sub63310-12440

main63310-12440-16iKE70,TE71..SED..(EUR,GEN)198008-198108

IVORY & L-BROWN,BROWN,TRIM4#

sub63310-12440

main63310-12440-26iCE70,KE70,TE71..SED..(EUR,GEN)198108-198308

IVORY & D-BROWN,BROWN,TRIM4#

sub63310-12440

main63310-12460-01iTE71..SED..GEN;KE70..SED..5F..(ARL,GEN);KE70..SED..STD..(EUR,SAA);KE70..SED..(2FC,3FC,4F)..(ARL,GEN,SA)197908-198502

HANGING CLOTH,IVORY & BLACK,BLACK,TRIM0#,2#

sub63310-12460

main63310-12460-04iKE70,TE71..SED..(ARL,GEN)197908-198305

HANGING CLOTH,IVORY & BLACK,BLUE,TRIM0#,2#

sub63310-12460

main63310-12460-06iTE7#..4D..SA198007-198008

IVORY & BROWN,BROWN,TRIM4#

sub63310-12460

main63310-12460-06iKE70,TE71..SED..GEN197908-198008

HANGING CLOTH,IVORY & L-BROWN,BROWN,TRIM4#

sub63310-12460

main63310-12460-16iKE70,TE71..SED..GEN198008-198305

HANGING CLOTH,IVORY & L-BROWN,BROWN,TRIM4#

sub63310-12460

main63310-12460-16iKE70,TE7#..(DX,GL)..SA198008-198204

IVORY & BROWN,BROWN,TRIM4#

sub63310-12460

main63310-12460-26iKE70,TE71..SED..GEN198108-198502

HANGING CLOTH,IVORY & D-BROWN,BROWN,TRIM4#

sub63310-12460

main63310-12520-01iKE70,TE71..CP197908-198108

IVORY & BLACK,BLACK,TRIM0#,2#

sub63310-12521

main63310-12520-04iKE70,TE71..CP197908-198108

IVORY & BLUE,BLUE,TRIM8#

sub63310-12521

main63310-12520-06iKE70,TE71..CP197908-198108

IVORY & D-BROWN,BROWN,TRIM4#

sub63310-12521

main63310-12521-01iKE70,TE71..CP198108-198305

IVORY & BLACK,BLACK,TRIM0#,2#

main63310-12521-04iKE70,TE71..CP198108-198305

IVORY & BLUE,BLUE,TRIM8#

main63310-12521-06iKE70,TE71..CP198108-198305

IVORY & D-BROWN,BROWN,TRIM4#

main63310-12530-01iTE71..SAA197908-198308

IVORY & BLACK,BLACK,TRIM0#,2#

main63310-12530-04iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA)197908-198308

IVORY & BLUE,BLUE,TRIM8#

main63310-12530-06iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA)197908-198308

IVORY & D-BROWN,BROWN,TRIM4#

main63310-12560-01iKE70,TE72..LB..DX;TE71..LB..(EUR,GEN,SAA)197908-198305

REMOVABLE ROOF,IVORY & BLACK,BLACK,TRIM0#,2#

main63310-12560-04iKE70,TE72..LB..DX;TE71..LB..(EUR,GEN,SAA)197908-198305

REMOVABLE ROOF,IVORY & BLUE,BLUE,TRIM8#

main63310-12560-06iKE70,TE72..LB..DX;TE71..LB..(EUR,GEN,SAA)197908-198305

REMOVABLE ROOF,IVORY & D-BROWN,BROWN,TRIM4#

main63310-12570-01iTE72..ARL197908-198305

REMOVABLE ROOF,IVORY & BLACK,BLACK,TRIM0#,2#

main63310-12570-04iTE72..ARL197908-198305

REMOVABLE ROOF,IVORY & BLUE,BLUE,TRIM8#

main63310-12570-06iTE72..ARL197908-198305

REMOVABLE ROOF,IVORY & D-BROWN,BROWN,TRIM4#

main63310-12580iKE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA)197908-198406

HANGING CLOTH

main63310-12591-01iKE70,TE71..CP198108-198305

REMOVABLE ROOF,IVORY & BLACK,BLACK,TRIM0#,2#

main63310-12591-04iKE70,TE71..CP198108-198305

REMOVABLE ROOF,IVORY & BLUE,BLUE,TRIM8#

main63310-12591-06iKE70,TE71..CP198108-198305

REMOVABLE ROOF,IVORY & D-BROWN,BROWN,TRIM4#

main63310-13080-01iKE70,TE71..DV,WG197908-198508

IVORY & BLACK,BLACK,TRIM2#

sub63310-13080

sub63310-13120

main63310-13080-01iKE70,TE71..(DV,WG)..(ARL,GEN,SA,SAA)198305-198309

IVORY & BLACK,BLACK,TRIM0#,2#

sub63310-13080

sub63310-13120

main63310-13080-02iCE70,KE70..(DV,WG)..(EUR,GEN)198305-198409

IVORY & MAROON,RED/MAROON,TRIM3#

sub63310-13080

sub63310-13120

main63310-13080-03iCE70,KE70..(DV,WG)..(EUR,GEN)198305-198410

IVORY & GRAY,GRAY,TRIM1#

sub63310-13080

sub63310-13120

main63310-13080-04iKE70..WG..SAA197908-198309

IVORY & BLUE,BLUE,TRIM8#

sub63310-13080

sub63310-13120

main63310-13080-06iKE70,TE71..DV,WG197908-198008

IVORY & BORWN,BROWN,TRIM4#

sub63310-13080

sub63310-13120

main63310-13080-16iKE70,TE71..DV,WG198008-198305

IVORY R L-BROWN,BROWN,TRIM4#

sub63310-13080

sub63310-13120

main63310-13080-26iKE70,TE71..(DV,WG)..(EUR,GEN,SA,SAA)198108-198508

IVORY & D-BROWN,BROWN,TRIM4#

sub63310-13080

sub63310-13120

main63310-13080-26iCE70,KE70..EUR,GEN198409-198410

IVORY & BROWN,BROWN,TRIM4#

sub63310-13080

sub63310-13120

main63310-13090-01iAE71198501-198508

IVORY & BLACK,BLACK,TRIM0#,2#

sub63310-13090

main63310-13090-03iAE71..SA198508-198707

IVORY & GRAY,GRAY,TRIM1#

sub63310-13090

main63310-13090-26iAE71198501-198508

IVORY & D-BROWN,BROWN,TRIM4#

sub63310-13090

main63310-13090-36iAE71..SA198508-198707

IVORY & BROWN,BROWN,TRIM4#

sub63310-13090

main63310-13100-02iAE71..STD198309-198406

IVORY & MAROON,RED/MAROON,TRIM3#

sub63310-13100

main63310-13100-03iAE71..STD198309-198406

IVORY & GRAY,GRAY,TRIM1#

sub63310-13100

main63310-13120-02iCE70,KE70..LHD..DX..EUG198305-198409

FINLAND SPEC,IVORY & MAROON,RED/MAROON,TRIM3#

sub63310-13120

main63310-13120-03iCE70,KE70..LHD..DX..EUG198305-198410

FINLAND SPEC,GRAY,GRAY,TRIM1#

sub63310-13120

main63310-13120-03iCE70,KE70..EUR,GEN198410-198508

IVORY & GRAY,GRAY,TRIM1#

sub63310-13120

main63310-13120-06iCE70,KE70..LHD..DX..EUG198409-198410

FINLAND SPEC,IVORY & BROWN,BROWN,TRIM4#

sub63310-13120

main63310-13120-06iKE70..SA198410-198707

IVORY & BROWN,BROWN,TRIM4#

sub63310-13120

main63310-13120-13iAE71,CE70,KE70..EUR,GEN198508-198707

IVORY & GRAY,GRAY,TRIM1#

sub63310-13120

63310DCLIP, ROOF HEADLINING

main63376-20010iKE70..SED..SAA197908-198308

main63376-20010iKE70,TE7#..LB197908-198004

REMOVABLE ROOF

main63395-12020iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA)197908-198308

63341PAD, ROOF SILENCER, NO.1

main63341-12070iCE70,KE70..LHD..DX198409-198502

FINLAND SPEC

sub63341-22H92

main63341-12070iAE71,CE70,KE70,TE7#..DV,LB,SED,WG197908-198409

sub63341-22H92

main63341-13060iAE71,CE70,KE70,TE71..DV,WG198409-198707

sub63341-22H92

main63341-13070iCE70,KE70..LHD..DX198502-198707

FINLAND SPEC

sub63341-22H92

main63342-12030iKE70,TE71..CP197908-198305

sub63341-22H92

main63351-12010iKE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA)197908-198406

W/HANGING CLOTH ROOF

63342PAD, ROOF SILENCER, NO.2

main63341-12070iCE70,KE70,TE7#..SED197908-198502

930 X 530

sub63341-22H92

main63341-12070iKE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA)197908-198502

W/HANGING CLOTH ROOF

sub63341-22H92

main63342-12030iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA)197910-198308

W/REMOVABLE ROOF

sub63341-22H92

main63342-13070iAE71,CE70,KE70,TE71..DV,WG197908-198409

sub63341-22H92

main63342-13070iCE70,KE70..LHD..DX198409-198707

FINLAND SPEC

sub63341-22H92

main63342-13070iCE70,KE70,TE71..SED..(EUR,GEN)197911-198406

930 X 550

sub63341-22H92

main63342-13080iAE71,CE70,KE70,TE71..DV,WG198409-198707

sub63341-22H92

main63343-12020iKE70,TE71..CP197908-198305

W/O REMOVABLE ROOF

main63343-12030iKE70,TE7#..LB197908-197910

sub63341-22H92

main63343-12030iTE71..SAA197910-198308

W/O REMOVABLE ROOF

sub63341-22H92

main63343-12040iKE70,TE71..CP198108-198305

W/REMOVABLE ROOF

sub63341-22H92

63381RETAINER, HEADLINING, FRONT

main63381-12030iCE70,KE70,TE71..SED..(EUR,GEN,SAA)197908-198308

main63381-12040iKE70,TE7#..CP,LB197908-198406

63391TRIM, ROOF HEADLINING, FRONT

main63391-12010-01iKE70..SED..SAA197908-198308

BLACK,BLACK,TRIM0#,2#

sub63391-12010

main63391-12010-04iCE70,KE70,TE71..SED..(EUR,GEN,SAA)197908-198308

BLUE,BLUE,TRIM8#

sub63391-12010

main63391-12010-06iKE70,TE71..SED..(EUR,GEN)197908-198008

L-BROWN,BROWN,TRIM4#

sub63391-12010

main63391-12010-16iKE70,TE71..SED..(EUR,GEN)198008-198108

L-BROWN,BROWN,TRIM4#

sub63391-12010

main63391-12010-26iKE70..SED..SAA198108-198308

D-BROWN,BROWN,TRIM4#

sub63391-12010

main63391-12020-01iKE70,TE7#..CP,LB197908-198406

BLACK,BLACK,TRIM0#,2#

sub63391-12020

main63391-12020-04iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA)197908-198308

BLUE,BLUE,TRIM8#

sub63391-12020

main63391-12020-06iKE70,TE7#..CP,LB197908-198406

D-BROWN,BROWN,TRIM4#

sub63391-12020

main63391-13030-01iAE71,KE70,TE7#..SED..(ARL,GEN,SA)197908-198502

W/HANGING CLOTH ROOF,BLACK,BLACK,TRIM0#,2#

sub63391-13030

main63391-13030-01iKE70..(DV,WG)..ARL197908-198508

BLACK,BLACK,TRIM2#

sub63391-13030

main63391-13030-02iAE71..STD198305-198409

MAROON,RED/MAROON,TRIM3#

sub63391-13030

main63391-13030-03iAE71..STD198305-198508

GRAY,GRAY,TRIM1#

sub63391-13030

main63391-13030-04iKE70,TE71..SED..(ARL,GEN)197908-198305

W/HANGING CLOTH ROOF,BLUE,BLUE,TRIM8#

sub63391-13030

main63391-13030-04iKE70,TE71..(DV,WG)..(ARL,EUR,GEN,SAA)197908-198309

BLUE,BLUE,TRIM8#

sub63391-13030

main63391-13030-06iKE70,TE71..DV,WG197908-198008

LIGHT BROWN,BROWN,TRIM4#

sub63391-13030

main63391-13030-06iKE70,TE71..SED..GEN197908-198008

W/HANGING CLOTH ROOF,L-BROWN,BROWN,TRIM4#

sub63391-13030

main63391-13030-13iAE71,CE70,KE70198508-198707

GRAY,GRAY,TRIM1#

sub63391-13030

main63391-13030-16iKE70..SED..ARL198008-198305

W/HANGING CLOTH ROOF,L-BROWN,BROWN,TRIM4#

sub63391-13030

main63391-13030-16iKE70,TE71..DV,WG198008-198305

L-BROWN,BROWN,TRIM4#

sub63391-13030

main63391-13030-26iKE70..(DV,WG)..ARL198108-198508

D-BROWN,BROWN,TRIM4#

sub63391-13030

main63391-13030-26iKE70,TE71..SED..GEN198108-198502

W/HANGING CLOTH ROOF,D-BROWN,BROWN,TRIM4#

sub63391-13030

main63391-13030-36iAE71,CE70,KE70198409-198707

BROWN,LIGHT BROWN,TRIM4#

sub63391-13030

63392TRIM, ROOF HEADLINING, REAR

main63305-12010-01iCE70,KE70,TE71..SED..(EUR,GEN,SAA)197908-198308

BLACK,BLACK,TRIM0#,2#

sub63305-12010

main63305-12010-04iCE70,KE70,TE71..SED..(EUR,GEN,SAA)197908-198308

BLUE,BLUE,TRIM8#

sub63305-12010

main63305-12010-06iKE70,TE71..SED..(EUR,GEN)197908-198008

L-BROWN,BROWN,TRIM4#

sub63305-12010

main63305-12010-16iKE70,TE71..SED..(EUR,GEN)198008-198108

L-BROWN,BROWN,TRIM4#

sub63305-12010

main63305-12010-26iKE70..SED..SAA198108-198308

D-BROWN,BROWN,TRIM4#

sub63305-12010

main63392-12090-01iKE70,TE71..CP197908-198305

BLACK,BLACK,TRIM0#,2#

sub63392-12090

main63392-12090-04iKE70,TE71..CP197908-198305

BLUE,BLUE,TRIM8#

sub63392-12090

main63392-12090-06iKE70,TE71..CP197908-198305

D-BROWN,BROWN,TRIM4#

sub63392-12090

main63392-12100-01iKE70,TE7#..LB197908-198406

BLACK,BLACK,TRIM0#,2#

main63392-12100-04iTE71..SAA197908-198308

BLUE,BLUE,TRIM8#

main63392-12100-06iKE70,TE7#..LB197908-198406

D-BROWN,BROWN,TRIM4#

main63392-13020-01iAE71,CE70,KE70,TE71..DV,WG197908-198707

BLACK,BLACK,TRIM2#

main63392-13020-04iKE70,TE71..(DV,WG)..(ARL,EUR,GEN,SAA)197908-198309

BLUE,BLUE,TRIM8#

main63392-13020-06iKE70,TE71..DV,WG197908-198008

L-BROWN,BROWN,TRIM4#

main63392-13020-16iAE71,KE70..WG..ARL198008-198508

L-BROWN,BROWN,TRIM4#

9354014012

main93540-14012

9354054008

main93540-54008

9 parts on this diagram · 7 diagrams in section
