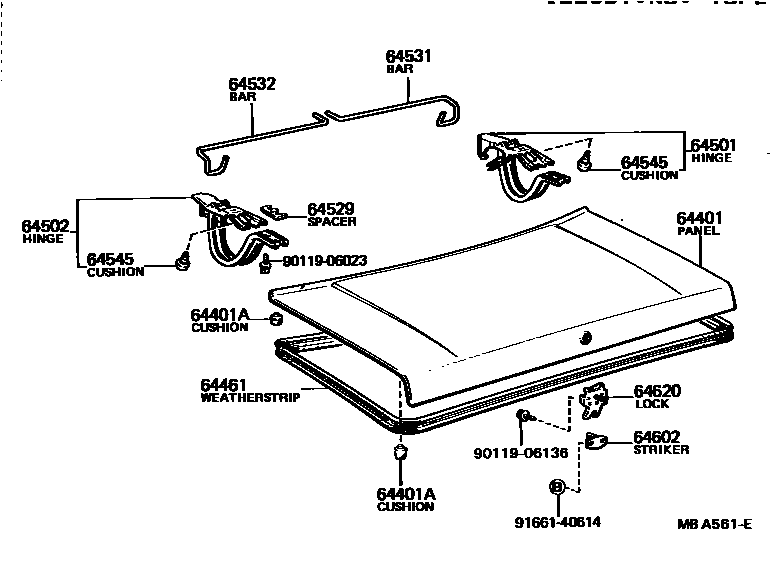

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-12906iAE71,CE70,KE70,TE7#..SED197908-198502

sub64401-12909

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-07003iAE71,CE70,KE70,TE7#..SED197908-198502

FR

main90541-09114iAE71,CE70,KE70,TE7#..SED197908-198502

RR

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-12100iAE71,CE70,KE70,TE7#..SED197908-198502

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-12140iAE71,CE70,KE70,TE7#..SED197908-198502

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-12140iAE71,CE70,KE70,TE7#..SED197908-198502

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-20010iAE71,CE70,KE70,TE7#..SED197908-198502

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-12110iAE71,CE70,KE70,TE7#..SED197908-198502

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-12090iAE71,CE70,KE70,TE7#..SED197908-198502

64545CUSHION, LUGGAGE DOOR HINGE

main90541-09013iKE70,TE71..SED197908-198006

main90541-09014iAE71,CE70,KE70,TE7#..SED198006-198502

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-22030iAE71,CE70,KE70,TE7#..SED197908-198502

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-12020iCE70,KE70,TE7#..SED197908-198502

main64610-20030iTE72..GL198305-198404

9011906023

main90119-06023

9011906136

main90119-06136

9166140614

main91661-40614

14 parts on this diagram · 2 diagrams in section
