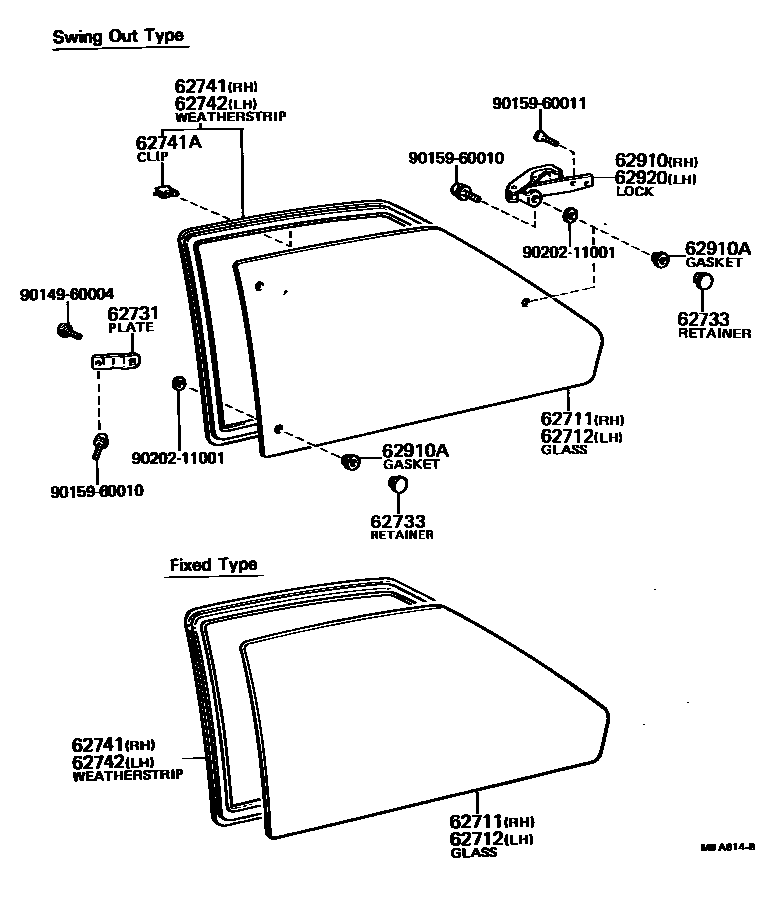

QUARTER WINDOW

0001 1 0002 1 0003 1 0004 1

62711GLASS, QUARTER WINDOW, RH

main62711-12260iKE70..SED..2D..STD..EUG197908-198305

*TEM,T=4.0

sub62711-12270

main62711-12270iKE70,TE71..SED..LHD..2D..(DX,GL)197908-198305

*TT,T=4.0

main62711-12280iKE70,TE71..CP197908-198108

*TT,T=4.0,FR

sub62711-12281

main62711-12281iKE70,TE71..CP198108-198305

*TT,T=3.5,FR

main62711-12290iKE70..SED..2D..STD..EUG197908-198108

*FRG,*TEM,T=3.5

sub62711-12300

main62711-12300iKE70..SED..LHD..(2FC,4F)..2D..DX..EUG197908-198305

*FRG,*TT,T=3.5

main62711-12300iKE70..RHD..2D..EUG197908-198305

*TT,T=3.5

main62711-13070iKE70..WG..2D197908-198707

*TEM,T=4.0

main62711-13080iKE70,TE71..4F..2D..(GEN,SA)197908-198707

*TEM,T=3.5

main68133-12030iKE70,TE71..CP197908-198108

*TT,T=4.0,RR

sub68133-12031

main68133-12031iKE70,TE71..CP198108-198305

*TT,T=3.5,RR

main68133-12040iKE70,TE71..LB..GEN197908-198305

*TT,T=4.0

sub68133-12070

main68133-12070iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA)198108-198406

*TT,T=3.5

62712GLASS, QUARTER WINDOW, LH

main62712-12260iKE70..SED..2D..STD..EUG197908-198305

*TEM,T=4.0

sub62712-12270

main62712-12270iCE70,KE70,TE71..SED..2D..DX..EUG197908-198305

*TT,T=4.0

main62712-12280iKE70,TE71..CP197908-198108

*TT,T=4.0,FR

sub62712-12281

main62712-12281iKE70,TE71..CP198108-198305

*TT,T=3.5,FR

main62712-12290iKE70..SED..2D..STD..EUG197908-198108

*FRG,*TEM,T=3.5

sub62712-12300

main62712-12300iKE70..RHD..2D..EUG197908-198305

*TT,T=3.5

main62712-12300iKE70..SED..4F..2D..DX..EUG197908-198305

*FRG,*TT,T=3.5

main62712-13070iKE70..5F..STD..GEN197908-198707

*TEM,T=4.0

main62712-13080iKE70,TE71..4F..2D..(GEN,SA)197908-198707

*TEM,T=3.5

main68134-12030iKE70,TE71..CP197908-198108

*TT,T=4.0,RR

sub68134-12031

main68134-12031iKE70,TE71..CP198108-198305

*TT,T=3.5,RR

main68134-12040iKE70,TE71..LB..GEN198108-198305

*TT,T=3.5

sub68134-12070

main68134-12040iKE70,TE7#..LB..(ARL,EUR,GEN)197908-198108

*TT,T=4.0

sub68134-12070

main68134-12070iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA)198108-198406

*TT,T=3.5

62731PLATE, QUARTER OR SIDE WINDOW HINGE

main62731-12070iKE70..WG..2D197908-198707

62733RETAINER, QUARTER OR SIDE WINDOW HINGE

main62735-12010iCE70,KE70,TE71..SED..LHD..2D197908-198707

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-12090iCE70,KE70,TE71..SED..LHD..2D197908-198305

main62741-12100iKE70,TE71..CP197908-198305

main62741-12110iKE70..SED..2D..STD..EUG;KE70..SED..LHD..(2FC,5F)..2D197908-198305

*FRG

main62741-12110iKE70..RHD..2D..EUG198008-198305

main62741-13050iKE70..5F..STD..GEN197908-198707

main62741-13060iCE70,KE70..LHD..STD..EUG197908-198707

62741ACLIP, QUARTER WINDOW WEATHERSTRIP

main62742-12110iKE70..RHD..2D..EUG197908-198008

main62759-12010iKE70..SED..RHD..2D..(GEN,SA)197908-198707

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62742-12090iKE70..SED..RHD..2D..(GEN,SA)197908-198305

main62742-12100iKE70,TE71..CP197908-198305

main62742-12110iKE70..RHD..2D..EUG197908-198305

*FRG

main62742-12110iKE70..RHD..2D..EUG198008-198305

main62742-13050iKE70..RHD..STD..GEN197908-198707

main62742-13060iCE70,KE70..LHD..STD..EUG197908-198707

62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH

main62910-13040iKE70..5F..STD..GEN197908-198707

main62910-16010iKE70..SED..RHD..2D..(GEN,SA)197908-198305

62910AGASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)

main90385-11001iKE70..WG..2D197908-198707

62920LOCK ASSY, QUARTER WINDOW, LH

main62920-13040iKE70..WG..2D197908-198707

main62920-16010iKE70..SED..RHD..2D..(GEN,SA)197908-198305

9014960004

main90149-60004

9015960010

main90159-60010

9015960011

main90159-60011

9020211001

main90202-11001

14 parts on this diagram · 4 diagrams in section
