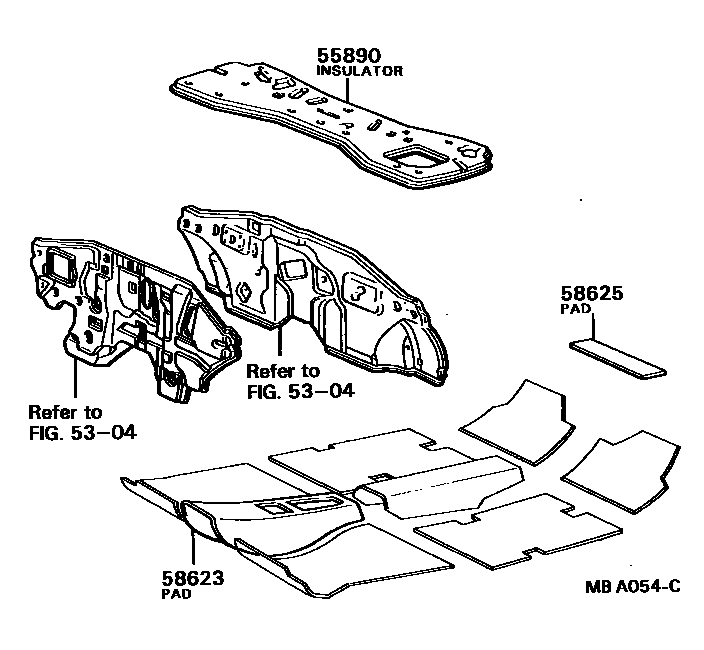

DASH SILENCER BOARD & FLOOR SILENCER PAD

5304

55890INSULATOR ASSY, COWL TOP

main55780-12010iKE70,TE71..(DV,SED,WG)..RHD197908-198004

sub55780-12011

main55780-12011iAE71,CE70,KE70,TE7#..(DV,SED,WG)..RHD198004-198707

main55780-12020iKE70,TE7#..(CP,LB)..RHD197908-198004

sub55780-12021

main55780-12021iKE70,TE7#..(CP,LB)..RHD198004-198406

main55780-12030iKE70..(DV,SED,WG)..LHD..MTM197908-198101

main55780-12031iKE70..(DV,SED,WG)..LHD198101-198707

main55780-12040iAE71,CE70,TE71..(SED,WG)..LHD197908-198707

main55780-12050iKE70,TE71..(SED,WG)..LHD..ATM197908-198004

sub55780-12030

sub55780-12040

main55780-12060iKE70..(CP,LB)..LHD..MTM197908-198101

main55780-12061iKE70..(CP,LB)..LHD198101-198305

main55780-12070iTE7#..(CP,LB)..LHD197908-198308

main55780-12080iKE70,TE71..LB..ATM197908-198001

sub55780-12070

58623PAD, FLOOR SILENCER, FRONT CENTER

main58623-12070iCE70198210-198410

58625PAD, FLOOR SILENCER, REAR CENTER

main58626-13010iKE70,TE71..(DV,WG)..(GEN,SA)197910-198408

4 parts on this diagram · 1 diagram in section
