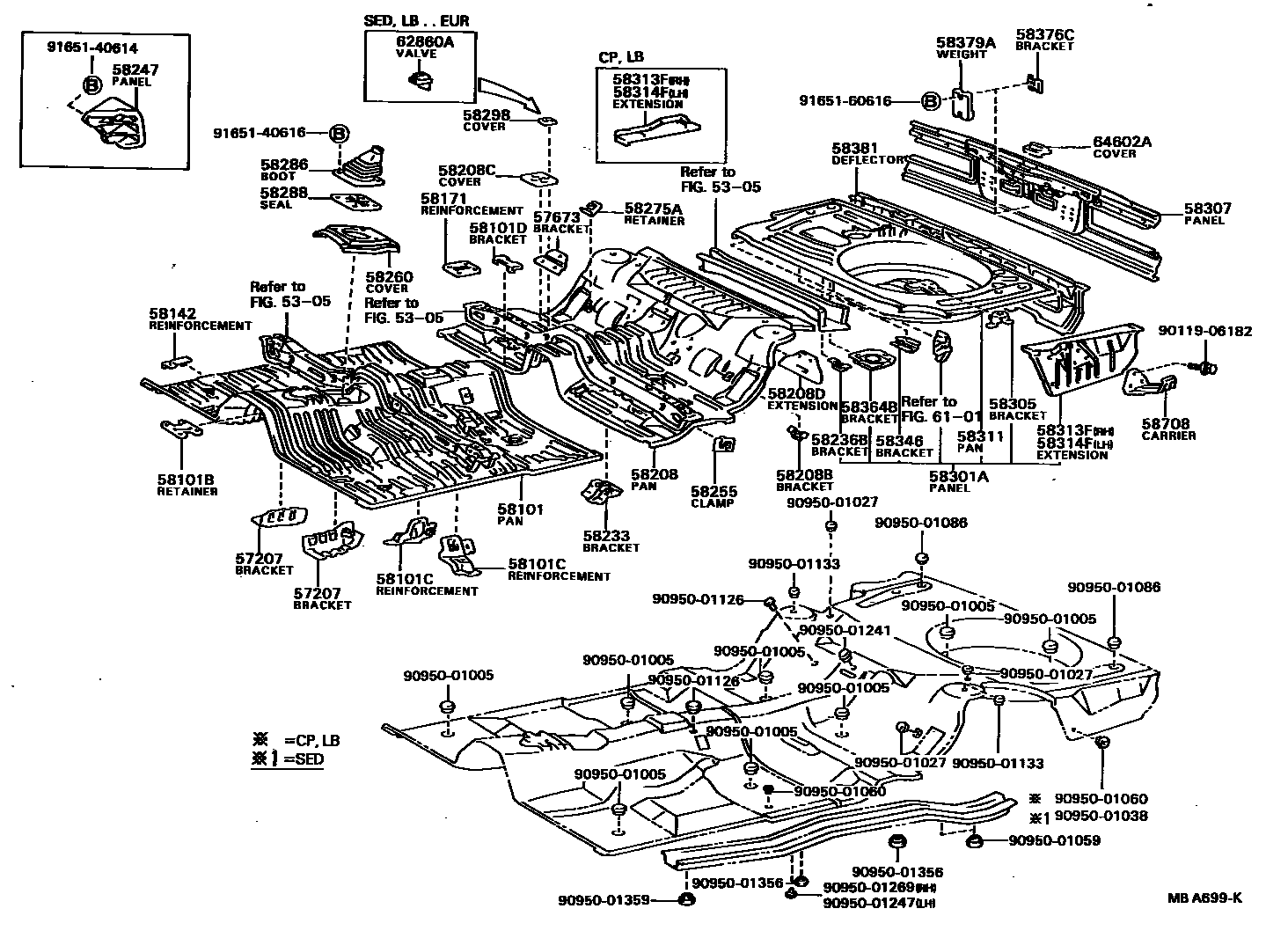

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

5305

57207BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER

main57207-12030iKE70,TE7#197908-198107

RH

main57207-12050iKE70,TE7#198107-198707

RH

main57208-12040iKE70,TE7#197908-198107

LH

main57208-12060iKE70,TE7#198107-198707

LH

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57673-12020iKE70,TE7#..CP,LB197908-198406

58101PAN SUB-ASSY, FRONT FLOOR

main58111-12140iAE71,CE70,KE70,TE7#..EUR,GEN,SA,SAA197908-198707

58101BRETAINER, CONSOLE BOX MOUNTING

main58164-12010iAE71,CE70,KE70,TE7#197908-198707

58101CREINFORCEMENT SUB-ASSY, DRIVE SHAFT SUPPORT

main58205-12020iAE71,CE70,KE70,TE7#197908-198707

RH

main58206-12020iAE71,CE70,KE70,TE7#197908-198707

LH

58101DBRACKET, PARKING BRAKE CABLE GUIDE

main58264-12020iAE71,CE70,KE70,TE7#197908-198707

58142REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN

main58141-16010iAE71,CE70,KE70,TE7#197908-198707

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-12040iAE71,CE70,KE70,TE7#197908-198707

58208PAN, CENTER FLOOR

main58211-12090iKE70,TE7#..CP,LB,SED197908-198109

sub58211-12130

main58211-12130iCE70,KE70,TE7#..CP,LB,SED198109-198502

main58211-13060iAE71,CE70,KE70,TE71..DV,WG197908-198707

58208BBRACKET, CENTER FLOOR HEAT INSULATOR

main58236-14010iAE71,CE70,KE70,TE7#197908-198707

58208CCOVER, CENTER FLOOR HOLE

main58285-12010iAE71,CE70,KE70,TE7#..CP,LB,SED197908-198502

58208DEXTENSION, CENTER FLOOR TO BRACE

main64227-12040iAE71,CE70,KE70,TE7#..SED197908-198502

58233BRACKET, EXHAUST PIPE MOUNTING

main58233-12010iAE71,CE70,KE70,TE7#..CP,LB,SED197908-198502

main58233-13020iAE71,CE70,KE70,TE71..DV,WG197908-198707

58236BBRACKET, CENTER FLOOR HEAT INSULATOR

main58236-14010iTE72..4FC,5F;AE71,CE70,KE70,TE71..CP,LB,SED198208-198502

58247PANEL, FOOTREST, INSIDE

main58191-12040iTE72..4FC198204-198401

58255CLAMP, PARKING BRAKE CABLE, NO.1

main58207-12040iAE71,CE70,KE70,TE7#..CP,LB,SED197908-198502

RH

main58208-12040iAE71,CE70,KE70,TE7#..CP,LB,SED197908-198502

LH

58260COVER ASSY, TRANSMISSION, FRONT

main58281-12010iKE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM197908-198707

main58281-12020iAE71,KE70,TE7#..ATM197908-198707

58275ARETAINER, REAR SEATBACK TO CENTER FLOOR

main58275-12010iAE71,CE70,KE70,TE7#..CP,LB,SED197908-198502

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-12070iAE71,KE70,TE7#..MTM..SA198108-198707

W/CONSOLE

main58280-12070iAE71,KE70..MTM..4D..ARL197908-198410

main58280-12080-01iKE70..LB..4F;KE70..(CP,LB)..5F;KE70..CP..LHD..4F;TE71..2D..DX..GEN;TE7#..LHD..MTM..DX..EUR197908-198707

W/CONSOLE,BLACK,BLACK,TRIM0#,2#

sub58280-12080

main58280-12080-01iAE71..STD198309-198406

W/CONSOLE BLACK,BLACK,TRIM0#,2#

sub58280-12080

main58280-12080-04iKE70..LB..4F;KE70..(CP,LB)..5F;KE70..CP..LHD..4F;TE71..2D..DX..GEN;TE7#..LHD..MTM..DX..EUR197908-198108

W/CONSOLE,BLUE,BLUE,TRIM8#

sub58280-12080

main58280-12080-05iKE70..SED..LHD..MTM..EUR197908-198204

W/CONSOLE,BEIGE,BEIGE,TRIM4#

sub58280-12080

main58280-12080-06iKE70..LB..4F;KE70..(CP,LB)..5F;KE70..CP..LHD..4F;TE71..2D..DX..GEN;TE7#..LHD..MTM..DX..EUR197908-198108

W/CONSOLE,DARK BROWN,BROWN,TRIM4#

sub58280-12080

main58280-12090iKE70..2D..ARL197908-198707

W/O CONSOLE

58288SEAL, SHIFT LEVER BOOT

main58288-12050iAE71,TE7#..MTM197908-198707

main58288-12060iKE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

main58288-12070iCE70198210-198707

58298COVER, CENTER FLOOR HOLE, NO.2

main58298-12010iKE70,TE7#..(CP,LB,SED)..(ARL,GEN,SAA)198108-198502

58301APANEL SUB-ASSY, REAR FLOOR

main58301-12140iKE70,TE7#..SED197908-198208

sub58311-12150

sub58236-14010

sub58303-12010

sub58305-10011

sub58313-12060

sub58345-14010

sub58364-12010

sub61645-12050

sub90189-04002

sub93560-54012

sub93560-54014

main58301-12150iKE70,TE7#..CP,LB197908-198208

sub58311-12150

sub58236-14010

sub58305-10011

sub58313-12090

sub58314-12090

sub58345-14010

sub58364-12010

sub90189-04002

sub93560-54012

sub93560-54014

main58301-13080iKE70..DV197908-198108

main58301-13090iAE71,CE70,KE70,TE71..DV198108-198707

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iAE71,CE70,KE70,TE7#..CP,LB,SED197908-198502

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-12520iCE70,TE71..SED;TE72..(4FC,5F)..GL;KE70..SED..4F..2D..EUG;KE70..SED..LHD..4F..4D;KE70..SED..LHD..(3FC,5F);KE70..SED..RHD..(EUR,GEN,SA)197908-198502

main58307-12530iKE70..RHD..5F..4D..GEN;KE70..LHD..4F..4D..DX..GEN197908-198108

W/URETHANE BUMPER

main58307-12540iKE70,TE71..CP197908-198305

main58307-12590iKE70,TE7#..LB197908-198406

main58307-12720iCE70198210-198301

sub58307-12520

sub58376-12020

main58307-13070iAE71,CE70,KE70,TE71..DV,WG197908-198707

main58307-13100iKE70..WG..LHD..4F..4D..EUG197908-198707

*FRG

58311PAN, REAR FLOOR

main58311-12150iTE72..4FC,5F;AE71,CE70,KE70,TE71..CP,LB,SED198208-198502

main58311-13060iAE71,CE70,KE70,TE71..DV,WG197908-198707

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-12060iKE70,TE71..SED197908-197911

sub58313-12080

main58313-12080iAE71,CE70,KE70,TE7#..SED197911-198502

main58313-12090iKE70,TE7#..CP,LB197908-198406

main58313-13070iKE70,TE71..DV,WG197908-198207

sub58313-13071

sub90480-79001

sub90480-79002

main58313-13071iCE70,KE70..DV198207-198707

main58313-13080iCE70,KE70..DX..EUR198409-198707

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58303-12010iKE70,TE71..SED197908-197911

sub58303-12030

main58303-12030iAE71,CE70,KE70,TE7#..SED197911-198502

main58314-12090iKE70,TE7#..CP,LB197908-198406

main58314-13070iAE71,CE70,KE70,TE71..DV,WG197908-198707

58346BRACKET, REAR FLOOR HEAT INSULATOR

main58236-14010iAE71,CE70,KE70,TE71..DV,WG197908-198707

main58345-14010iTE72..4FC,5F;AE71,CE70,KE70,TE71..CP,LB,SED198208-198502

sub58345-14020

58364BBRACKET, FUEL TANK SUPPORT

main58364-12010iTE72..4FC,5F;AE71,CE70,KE70,TE71..CP,LB,SED198208-198502

58376CBRACKET, LOWER BACK PANEL WEIGHT

main58376-12020iCE70198210-198301

58379AWEIGHT, LOWER BACK PANEL DAMPER

main58379-12010iCE70198210-198301

58381DEFLECTOR, REAR BUMPER STONE

main58308-12040iKE70,TE7#..SED197908-198204

main58308-12050iKE70..SED..SAA197908-198406

W/URETHANE BUMPER

main58308-12050iKE70..SED..LHD..4F..4D..GEN198012-198108

W/URETHANE BUMPER,*SAA

main58308-12060iKE70,TE71..SED..(EUR,GEN)198108-198502

main58308-12070iKE70,TE7#..CP,LB197908-198204

main58308-12080iKE70,TE7#..LB..(ARL,GEN,SAA)197908-198406

W/URETHANE BUMPER

main58308-12080iTE71..LB..LHD..4F198012-198108

W/URETHANE BUMPER,*SAA

main58308-12100iKE70,TE7#..(CP,LB)..(EUR,GEN,SA)198108-198305

main58308-13050iAE71,CE70,KE70,TE71..DV,WG197908-198707

58708CARRIER SUB-ASSY, JACK

main58709-13020iAE71,CE70,KE70,TE71..DV,WG197908-198707

main58791-12050iAE71,CE70,KE70,TE7#..SED197908-198502

6101

62860AVALVE ASSY, ROOM PRESSURE RELIEF, NO.2

main62860-12040iTE71..(LB,SED)..EUG;CE70,KE70,TE72..(LB,SED)..(DX,GL,STD)..EUR198108-198308

64602ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-12010iAE71,CE70,KE70,TE7#..SED197908-198502

9011906182

main90119-06182

9095001005

main90950-01005

9095001027

main90950-01027

9095001038

main90950-01038

9095001059

main90950-01059

9095001060

main90950-01060

9095001086

main90950-01086

9095001126

main90950-01126

9095001133

main90950-01133

9095001241

main90950-01241

9095001247

main90950-01247

9095001269

main90950-01269

9095001356

main90950-01356

9095001359

main90950-01359

9165140614

main91651-40614

9165140616

main91651-40616

9165160616

main91651-60616

54 parts on this diagram · 2 diagrams in section
