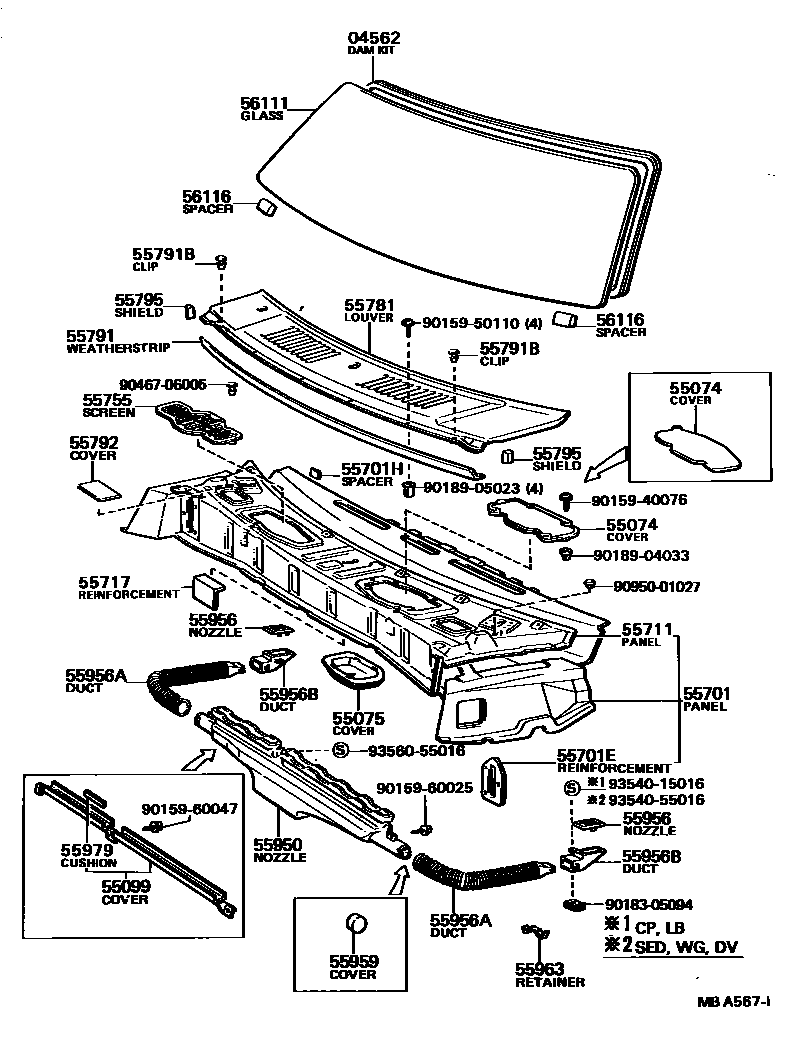

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30020iAE71,CE70,KE70,TE7#197908-198707

sub04562-30030

55074COVER SUB-ASSY, COWL INNER HEATER AIR

main55074-12010iKE70,TE7#198011-198208

main55074-12011iKE70,TE7#..RHD..(EUR,GEN,SA)198108-198707

main55074-12020iAE71,CE70,KE70,TE7#..LHD198112-198707

main55791-12050iKE70,TE7#197908-198011

sub55074-12010

55075COVER SUB-ASSY, HEATER AIR DUCT HOLE

main55077-12040iKE70,TE71..RHD..GEN197908-198707

main55077-12050iTE71..LB..LHD..EUG;KE70..(LB,SED)..LHD..5F..EUG;KE70..(DV,LB,SED,WG)..LHD..(2FC,4F)..EUG197908-198707

55099COVER SUB-ASSY, DEFROSTER NOZZLE OPENING

main55099-12010iKE70,TE71..(DV,SED,WG)..RHD..GEN197908-198108

main55099-12020iTE71..LHD..4D;KE70..WG..LHD..GEN;KE70..WG..LHD..EUG;KE70..SED..LHD..(2FC,5F);KE70..(DV,SED)..LHD..STD;KE70..SED..LHD..4F..DX..EUG;KE70..SED..LHD..4F..DX..GEN197908-198108

55701PANEL SUB-ASSY, COWL

main55700-12090iKE70,TE7#..(SED,WG)..(ARL,SA)197908-198208

sub55700-12091

sub55074-12011

sub90159-40009

sub90189-04033

main55700-12091iKE70,TE7#..(DV,SED,WG)..RHD..(EUR,GEN,SA)198108-198205

sub55700-12092

sub90159-50110

sub90189-05023

main55700-12092iAE71,KE70..RHD..(GEN,SA)198205-198707

main55700-12110iKE70,TE7#..(CP,LB)..RHD197908-198008

sub55700-12111

sub85230-12160

main55700-12111iTE7#..SE..SA198008-198204

sub55700-12112

sub55074-12011

sub90159-40009

sub90189-04033

main55700-12112iKE70,TE7#..(CP,LB)..RHD198108-198205

sub55700-12113

sub90159-50110

sub90189-05023

main55700-12113iKE70,TE7#..(CP,LB)..RHD198205-198406

main55700-12130iTE71..WG..LHD..3FC197908-198108

sub55700-12131

sub55074-12011

sub90159-40009

sub90189-04033

main55700-12150iTE71..SED..LHD197908-198108

sub55700-12151

sub55074-12011

sub90159-40009

sub90189-04033

main55700-12151iKE70,TE71..(DV,SED,WG)..LHD198108-198205

sub55700-12152

sub90159-50110

sub90189-05023

main55700-12152iAE71,KE70,TE71..(DV,SED,WG)..LHD198205-198707

main55700-12160iTE71..3FC..EUG197908-198108

sub55700-12161

sub55074-12011

sub90159-40009

sub90189-04033

main55700-12180iTE7#..LHD..MTM..2D197908-198108

sub55700-12181

sub55074-12011

sub90159-40009

sub90189-04033

main55700-12181iKE70,TE7#..(CP,LB)..LHD198108-198205

sub55700-12182

sub90159-50110

sub90189-05023

main55700-12182iKE70,TE7#..(CP,LB)..LHD198205-198308

main55700-12201iCE70..LHD198210-198707

sub55700-12152

main55700-12390iCE70,KE70..RHD..EUG198506-198707

55701EREINFORCEMENT, HOOD HINGE MOUNTING

main55725-12070iAE71,CE70,KE70,TE7#197908-198707

RH

main55726-12070iAE71,CE70,KE70,TE7#197908-198707

LH

55701HSPACER, INSTRUMENT PANEL SAEFTY PAD

main55457-12010iKE70,TE7#197908-198106

main55457-12020iAE71,CE70,KE70,TE7#198106-198707

55711PANEL, COWL TOP, OUTER

main55711-12090iKE70..4D..ARL197908-198208

sub55711-12091

sub55074-12011

sub90159-40009

sub90189-04033

main55711-12091iKE70,TE7#..(DV,SED,WG)..RHD..(EUR,GEN,SA)198108-198205

sub55711-12092

sub90159-50110

sub90189-05023

main55711-12092iKE70..2D..ARL198205-198707

main55711-12110iKE70,TE7#..(CP,LB)..RHD197908-198008

sub55711-12111

sub85230-12160

main55711-12111iTE7#..SE..SA198008-198204

sub55711-12112

sub55074-12011

sub90159-40009

sub90189-04033

main55711-12112iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)198108-198205

sub55711-12113

sub90159-50110

sub90189-05023

main55711-12113iKE70,TE7#..(CP,LB)..RHD198205-198406

main55711-12120iTE71..WG..LHD..3FC197908-198108

sub55711-12131

sub55074-12011

sub90159-40009

sub90189-04033

main55711-12130iTE71..WG..LHD..4F197908-198108

sub55711-12131

sub55074-12011

sub90159-40009

sub90189-04033

main55711-12131iKE70,TE71..(DV,SED,WG)..LHD198108-198205

sub55711-12132

sub90159-50110

sub90189-05023

main55711-12132iAE71,CE70,KE70,TE71..(DV,SED,WG)..LHD198205-198707

main55711-12150iKE70,TE7#..(CP,LB)..LHD197908-198108

sub55711-12151

sub55074-12011

sub90159-40009

sub90189-04033

main55711-12151iKE70,TE7#..(CP,LB)..LHD198108-198205

sub55711-12152

sub90159-50110

sub90189-05023

main55711-12152iKE70,TE7#..(CP,LB)..LHD198205-198305

55717REINFORCEMENT, COWL TOP OUTSIDE

main55717-12050iAE71,CE70,KE70,TE7#197908-198707

55755SCREEN, HEATER AIR DUCT

main55756-12040iAE71,CE70,KE70,TE7#197908-198707

55781LOUVER, COWL VENTILATOR

main55781-12020iKE70..4D..ARL197908-198305

main55781-12030iKE70,TE7#..(CP,LB)..RHD197908-198204

main55781-12060iKE70,TE71..(DV,SED,WG)..LHD197908-198108

main55781-12070iKE70,TE7#..(CP,LB)..LHD197908-198108

main55781-12080iKE70..2D..ARL198108-198707

main55781-12090iAE71,CE70,KE70,TE71..(DV,SED,WG)..LHD198108-198707

main55781-12100iKE70,TE7#..(CP,LB)..RHD198108-198406

main55781-12110iKE70,TE7#..(CP,LB)..LHD198108-198308

55791WEATHERSTRIP, HOOD TO COWL TOP

main53383-12030iKE70..4D..ARL197908-198305

main53383-12040iKE70,TE7#..CP,LB198007-198707

55791BCLIP(FOR HOOD TO COWL TOP WEATHERSTRIP)

main90467-06005iKE70,TE7#197908-198707

55792COVER, WIPER MOTOR SERVICE HOLE

main55793-12030iAE71,CE70,KE70,TE7#197908-198707

55795SHIELD, COWL TOP TO LOUVER, SIDE

main55751-12030iKE70,TE7#198003-198108

main55751-12040iAE71,CE70,KE70,TE7#198108-198707

main55751-14010iKE70,TE7#197908-198003

55950NOZZLE ASSY, DEFROSTER

main55950-12020iKE70,TE7#..(CP,LB)..RHD197908-198406

main55950-12030iAE71,CE70,KE70,TE7#..(DV,SED,WG)..RHD197908-198707

main55950-12040iAE71,CE70,KE70,TE71..(DV,SED,WG)..LHD197908-198707

main55950-12050iKE70,TE7#..(CP,LB)..LHD197908-198308

55956NOZZLE, SIDE DEFROSTER

main55961-12070-01iKE70..(DV,WG)..ARL198305-198309

LH,BLACK,BLACK,TRIM2#

sub55961-12070

main55961-12080-01iCE70,KE70,TE7#..DV,SED,WG197908-198508

RH,BLACK,BLACK,TRIM0#,2#

sub55961-12080

main55961-12080-01iAE71,KE70..WG..ARL198305-198410

RH,BLACK,BLACK,TRIM2#

sub55961-12080

main55961-12080-02iCE70,KE70..(DV,WG)..(EUR,GEN)198305-198409

RH,MAROON,RED/MAROON,TRIM3#

sub55961-12080

main55961-12080-03iCE70,KE70..(DV,WG)..(EUR,GEN)198305-198707

RH,GRAY,GRAY,TRIM1#

sub55961-12080

main55961-12080-04iKE70..SAA197908-198309

RH,BLUE,BLUE,TRIM8#

sub55961-12080

main55961-12080-06iAE71,KE70..WG..ARL198108-198508

RH,DARK BROWN,BROWN,TRIM4#

sub55961-12080

main55961-12080-15iKE70..4D..ARL197908-198305

RH,BEIGE,BEIGE,TRIM4#

sub55961-12080

main55961-12080-16iCE70,KE70..EUR,GEN198409-198707

RH,BROWN,BROWN,TRIM4#

sub55961-12080

main55961-12090-01iKE70,TE7#..CP,LB197908-198406

RH,BLACK,BLACK,TRIM0#,2#

main55961-12090-04iTE71..SAA197908-198308

RH,BLUE,BLUE,TRIM8#

main55961-12090-06iKE70,TE7#..(CP,LB)..(ARL,EUR)197908-198406

RH,DARK BROWN,BROWN,TRIM4#

main55962-12070-01iCE70,KE70,TE7#..DV,SED,WG197908-198305

LH,BLACK,BLACK,TRIM0#,2#

sub55962-12070

main55962-12070-01iAE71,KE70..SED..ARL;AE71,KE70,TE7#..GEN,SA,SAA198305-198508

LH,BLACK,BLACK,TRIM2#

sub55962-12070

main55962-12070-02iAE71..STD198305-198409

LH,MAROON,RED/MAROON,TRIM3#

sub55962-12070

main55962-12070-03iCE70,KE70..(DV,WG)..(EUR,GEN)198305-198707

LH,GRAY,GRAY,TRIM1#

sub55962-12070

main55962-12070-04iKE70..2D..ARL197908-198309

LH,BLUE,BLUE,TRIM8#

sub55962-12070

main55962-12070-06iKE70..2D..ARL198108-198508

LH,DARK BROWN,BROWN,TRIM4#

sub55962-12070

main55962-12070-15iKE70..(DV,SED,WG)..EUR197908-198305

LH,BEIGE,BEIGE,TRIM4#

sub55962-12070

main55962-12070-16iCE70,KE70..EUR,GEN198409-198707

LH,BROWN,BROWN,TRIM4#

sub55962-12070

main55962-12080-01iKE70,TE7#..(CP,LB)..(ARL,EUR)197908-198406

LH,BLACK,BLACK,TRIM0#,2#

main55962-12080-04iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA)197908-198308

LH,BLUE,BLUE,TRIM8#

main55962-12080-06iKE70,TE7#..(CP,LB)..(ARL,EUR)197908-198406

LH,DARK BROWN,BROWN,TRIM4#

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55973-12030iKE70..(DV,SED,WG)..EUR197908-198707

main55973-12040iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA)197908-198406

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55971-12050iKE70..(DV,SED,WG)..EUR197908-198707

RH

main55971-12060iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA)197908-198406

RH

main55972-12030iAE71,CE70,KE70,TE71..(DV,SED,WG)..(ARL,EUR,GEN,SAA)197908-198707

LH

main55972-12040iKE70,TE7#..(CP,LB)..(ARL,EUR)197908-198406

LH

55959COVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-14010iAE71,KE70,TE71..GEN,SA,SAA;TE72..(GL,SE,XE)..(EUR,SA)197908-198707

55963RETAINER, SIDE DEFROSTER

main55963-12010iCE70,KE70..RHD..EUG197908-198707

55979CUSHION, DEFROSTER NOZZLE

main55979-12010iTE71..4D..GEN;KE70..WG..LHD..GEN;KE70..WG..LHD..EUG;KE70..SED..LHD..(2FC,5F);KE70..(DV,SED)..LHD..STD;KE70..SED..LHD..4F..DX..EUG;KE70..SED..LHD..4F..DX..GEN;KE70..198002-198108

56111GLASS, WINDSHIELD

main56111-12310iAE71,KE70..(DV,SED,WG)..GEN197908-198707

*TEM,T=5.0

sub56111-12390

main56111-12320iTE71..4D..GEN;KE70..4D..DX..GEN;KE70..(GL,STD,XL)..GEN197908-198707

*TZT,T=5.0

sub56111-12340

main56111-12340iKE70..DX..SAA197908-198707

*TL,T=5.3

main56111-12360iKE70,TE71..(CP,LB)..(EUR,GEN)197908-198406

*TT,T=5.0

sub56111-12450

main56111-12370iKE70,TE72..(CP,LB)..DX;TE71..(CP,LB)..(EUR,GEN)197908-198305

*TL,T=5.3

sub56111-12450

main56111-12390iCE70,KE70..EUG197908-198707

*LAM,T=5.3

sub56111-12340

main56111-12430iTE72..ARL197908-198008

W/TOP SHADE BLUE,*LAM,T=5.3

sub56111-12431

main56111-12431iTE72..ARL198008-198305

W/TOP SHADE BLUE,*LAM,T=5.3

main56111-12450iKE70,TE71..LB..LHD..(GEN,SAA)198108-198406

W/TOP SHADE BLUE,*LAM,T=5.3

56116SPACER, WINDSHIELD GLASS

main56116-30020iAE71,CE70,KE70,TE7#197908-198707

sub56116-24010

9015940076

main90159-40076

9015950110

main90159-50110

9015960025

main90159-60025

9015960047

main90159-60047

9018305094

main90183-05094

9018904033

main90189-04033

9018905023

main90189-05023

9046706005

main90467-06005

9095001027

main90950-01027

9354015016

main93540-15016

9354055016

main93540-55016

9356055016

main93560-55016

36 parts on this diagram · 1 diagram in section
