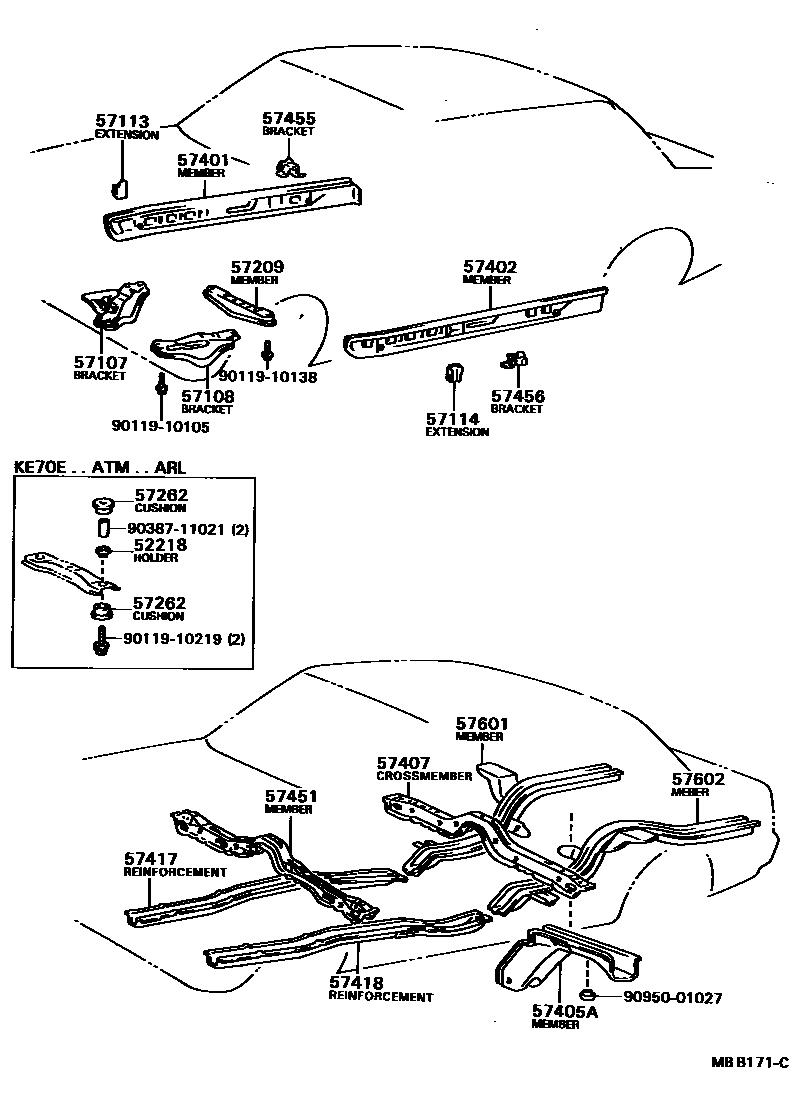

FLOOR SIDE MEMBER

0001 1 0002 1

52218HOLDER, BODY MOUNT BOLT SPACER, NO.1

main52228-12010iKE70..3FC..ARL198108-198410

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-12020iTE72;TE71..DX,STD197908-198305

sub57107-12030

main57107-12030iKE70;TE71..GT,SE,SR,XE197908-198707

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-12020iCE70197908-198305

sub57108-12030

main57108-12030iKE70,TE7#197908-198707

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-12010iKE70,TE7#197908-197911

sub57113-12020

main57113-12020iTE71..LHD..5F..DX197908-197911

W/URETHANE BUMPER

sub57113-12040

main57113-12020iKE70,TE7#197911-198110

sub57113-12040

main57113-12040iKE70,TE72..2D..ARL198108-198707

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-12010iKE70,TE7#197908-197911

main57114-12020iTE71..LHD..5F..DX197908-197911

W/URETHANE BUMPER

sub57114-12040

main57114-12020iKE70,TE7#197911-198110

sub57114-12040

main57114-12040iKE70,TE72..2D..ARL198108-198707

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-12080iKE70..CP..5F..GEN;KE70..CP..LHD..4F..GEN;KE70..(DV,LB,SED,WG)..MTM..(GEN,SA)197908-198008

sub57209-12160

main57209-12090iKE70..2FC..GEN197908-198008

sub57209-12170

main57209-12100iTE7#..MTM..(ARL,GEN,SA)197908-198008

sub57209-12140

main57209-12110iTE7#..3FC..(GEN,SA)197908-198008

sub57209-12150

main57209-12140iTE7#..MTM..EUR197908-198502

main57209-12150iTE7#..3FC..(GEN,SA)197908-198107

sub57209-12151

main57209-12151iTE7#..3FC198107-198401

main57209-12160iKE70..MTM..EUR197908-198707

main57209-12170iKE70..2FC..GEN197908-198108

main57209-12200iKE70..3FC..(EUR,GEN)198108-198707

main57209-12210iTE72..4FC198204-198401

main57209-12230iCE70198210-198508

main57209-12250iAE71..STD198309-198707

main57209-12260iAE71..GEN198508-198707

main57209-13030iCE70198508-198707

57262CUSHION, ENGINE REAR SUPPORT MEMBER

main57264-12010iKE70..3FC..ARL198108-198410

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-12090iKE70,TE7#..4D..(GEN,SA)197910-198010

sub57401-12120

main57401-12100iKE70..(DV,SED,WG)..2D..(GEN,SA)197910-198010

sub57401-12130

main57401-12110iKE70,TE7#..(CP,LB)..(GEN,SA)197910-198010

sub57401-12140

main57401-12120iAE71,CE70,KE70,TE7#..4D198010-198707

main57401-12120iKE70,TE71..4D..(EUR,GEN)197908-198010

GALVANIZED IRON SHEET

main57401-12130iAE71,CE70,KE70,TE71..(DV,SED,WG)..2D198010-198707

main57401-12130iKE70..(DV,SED,WG)..2D..(EUR,GEN)197908-198010

GALVANIZED IRON SHEET

main57401-12140iKE70,TE7#..(CP,LB)..(ARL,EUR,GEN)197908-198010

GALVANIZED IRON SHEET

main57401-12140iKE70,TE7#..CP,LB198010-198406

main57401-12900iKE70..(DV,SED,WG)..2D..GEN197908-197910

sub57401-12100

main57401-12901iKE70,TE71..4D..GEN197908-197910

sub57401-12090

main57401-12902iKE70,TE71..(CP,LB)..GEN197908-197910

sub57401-12110

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-12090iKE70,TE7#..4D..(GEN,SA)197910-198010

sub57402-12120

main57402-12100iKE70..(DV,SED,WG)..2D..(GEN,SA)197910-198010

sub57402-12130

main57402-12110iKE70,TE7#..(CP,LB)..(GEN,SA)197910-198010

sub57402-12140

main57402-12120iKE70,TE71..4D..(EUR,GEN)197908-198010

GALVANIZED IRON SHEET

main57402-12120iAE71,CE70,KE70,TE7#..4D198010-198707

main57402-12130iKE70..(DV,SED,WG)..2D..(EUR,GEN)197908-198010

GALVANIZED IRON SHEET

main57402-12130iAE71,CE70,KE70,TE71..(DV,SED,WG)..2D198010-198707

main57402-12140iKE70,TE7#..(CP,LB)..(ARL,EUR,GEN)197908-198010

GALVANIZED IRON SHEET

main57402-12140iKE70,TE7#..CP,LB198010-198406

main57402-12900iKE70..(DV,SED,WG)..2D..GEN197908-197910

sub57402-12100

main57402-12901iKE70,TE71..4D..GEN197908-197910

sub57402-12090

main57402-12902iKE70,TE71..(CP,LB)..GEN197908-197910

sub57402-12110

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-12900iAE71,CE70,KE70,TE7#..CP,LB,SED197908-198502

57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1

main57407-12010iAE71,CE70,KE70,TE7#..CP,LB,SED197908-198502

main57407-13050iAE71,CE70,KE70,TE71..DV,WG197908-198707

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57505-12020iAE71,CE70,KE70,TE7#..EUR,GEN,SA,SAA197908-198707

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57506-12040iAE71,CE70,KE70,TE7#..EUR,GEN,SA,SAA197908-198707

57451MEMBER, FRONT FLOOR CROSS

main57408-12020iKE70,TE7#..EUR,GEN,SAA198108-198707

main57451-12050iKE70,TE7#197908-198410

57455BRACKET, FRONT SEAT MOUNTING, OUTSIDE RH

main57455-12020iAE71,CE70,KE70,TE7#197908-198707

57456BRACKET, FRONT SEAT MOUNTING, OUTSIDE LH

main57456-12020iAE71,CE70,KE70,TE7#197908-198707

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-12900iTE72;KE70..DX..SDN;KE70,TE71..(CP,LB,SED)..GEN197908-197909

sub57601-12903

main57601-12901iTE71..LB..LHD..4F;KE70..SED..LHD..4F..4D..GEN198012-198108

SAUDI ARABIA SPEC

sub57601-12905

main57601-12902iTE71..XE..GEN;KE70..LB..RHD..5F;KE70..RHD..(2FC,4F)..4D..DX..GEN197908-198108

NEW ZEALAND SPEC

sub57601-12906

main57601-12903iTE72;KE70..DX..SDN;KE70,TE71..(CP,LB,SED)..(GEN,SA)197909-198308

sub57601-12907

main57601-12904iKE70..RHD..(2FC,4F)..4D..DX..GEN197909-198108

NEW ZEALAND SPEC

sub57601-12908

main57601-12905iKE70,TE71..(LB,SED)..SAA198108-198308

main57601-12906iTE71..SR..GEN;KE70,TE7#..(CP,LB,SED)..2D..(DX,GL,GT,SE,STD,XE)..(ARL,EUR,GEN)198108-198406

main57601-12907iKE70..SED..4D..GEN198108-198406

sub57601-12909

main57601-12907iTE71..SED..DX..GEN198208-198305

SWEDEN SPEC

sub57601-12909

main57601-12908iKE70..RHD..GL..GEN;KE70..RHD..(3FC,4F)..4D..DX..GEN198108-198205

NEW ZEALAND SPEC

sub57601-12909

main57601-12908iKE70..SED..4D..EUG198108-198205

sub57601-12909

main57601-12909iTE72..(4FC,5F)..GL;KE70..SED..RHD..4D..(EUR,SA);CE70,TE71..SED..4D..(EUR,SA);KE70..SED..LHD..4D..(EUG,SDZ)198205-198502

main57601-12909iKE70..RHD..GL..GEN;KE70..RHD..(3FC,4F)..4D..DX..GEN198205-198305

NEW ZEALAND SPEC

main57601-13071iCE70,KE70..EUR198108-198707

main57601-13081iKE70..WG..SAA198108-198308

main57601-13090iKE70,TE71..(DV,WG)..(EUR,GEN,SA)197908-198707

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57601-12909iTE71..GL198208-198305

main57602-12900iTE72;KE70..DX..SDN;KE70,TE71..(CP,LB,SED)..GEN197908-197909

sub57602-12903

main57602-12901iTE71..LB..LHD..4F;KE70..SED..LHD..4F..4D..GEN198012-198108

SAUDI ARABIA SPEC

sub57602-12905

main57602-12902iTE71..XE..GEN;KE70..LB..RHD..5F;KE70..RHD..(2FC,4F)..4D..DX..GEN197908-198108

NEW ZEALAND SPEC

sub57602-12906

main57602-12903iTE72;KE70..DX..SDN;KE70,TE71..(CP,LB,SED)..(GEN,SA)197909-198308

sub57602-12907

main57602-12904iKE70..SED..4D..EUG197909-198108

NEW ZEALAND SPEC

sub57602-12908

main57602-12905iKE70,TE71..(LB,SED)..SAA198108-198308

main57602-12906iTE71..SR..GEN;KE70,TE7#..(CP,LB,SED)..2D..(DX,GL,GT,SE,STD,XE)..(ARL,EUR,GEN)198108-198406

main57602-12907iTE71..SED..DX..GEN198208-198305

SWEDEN SPEC

sub57602-12909

main57602-12907iKE70..SED..4D..GEN198108-198406

sub57602-12909

main57602-12908iKE70..SED..4D..EUG198108-198205

sub57602-12909

main57602-12908iKE70..RHD..GL..GEN;KE70..RHD..(3FC,4F)..4D..DX..GEN198108-198205

NEW ZEALAND SPEC

sub57602-12909

main57602-12909iKE70..RHD..GL..GEN;KE70..RHD..(3FC,4F)..4D..DX..GEN198205-198305

NEW ZEALAND SPEC

main57602-12909iTE72..(4FC,5F)..GL;KE70..SED..RHD..4D..(EUR,SA);CE70,TE71..SED..4D..(EUR,SA);KE70..SED..LHD..4D..(EUG,SDZ)198205-198502

main57602-13060iAE71,KE70..2D..ARL197908-198707

main57602-13070iKE70..WG..SAA198108-198308

main57602-13080iAE71,KE70..WG..ARL198108-198410

9011910105

main90119-10105

9011910138

main90119-10138

9011910219

main90119-10219

9038711021

main90387-11021

9095001027

main90950-01027

23 parts on this diagram · 2 diagrams in section
