SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-13011iKE70..DV,WG197908-198305

main51900-13012iKE70..(DV,WG)..(EUR,GEN)198108-198707

main51900-13021iCE70,TE71..DV,WG197908-198707

sub51900-13080

main51900-13030iAE71..STD198308-198508

sub51900-13031

main51900-13031iAE71,KE70..EUR,GEN198508-198707

sub51900-13090

main51900-13040iCE70198308-198508

sub51900-13041

main51900-13041iCE70198508-198706

sub51900-13100

main51900-13090iKE70..EUR198706-198707

main51900-13100iCE70198706-198707

51908ABRACKET SUB-ASSY, SPARE WHEEL MOUNTING

main51908-13020iKE70..WG..LHD..4F..4D..EUG197908-198707

*FRG

51910SCREW ASSY, SPARE WHEEL CLAMP

main51910-10040iKE70,TE7#..(CP,LB)..(DX,SE,SR,XE)197908-197909

main51910-12030iTE71..GT,SE,SR,XE197908-197909

W/5J-13 DISC WHEEL

main51910-14040iAE71,CE70,KE70,TE7#..CP,LB,SED197909-198502

51938LOCK, SPARE WHEEL CARRIER

main51938-13010iKE70,TE71..DV,WG197908-198212

sub51938-28020

main51938-13020iAE71,CE70,KE70,TE71..DV,WG198212-198707

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90440-17015iAE71,CE70,KE70,TE71..DV,WG197908-198707

9010112034

main90101-12034

9020213066

main90202-13066

9165140614

main91651-40614

9165660825

main91656-60825

9461211200

main94612-11200

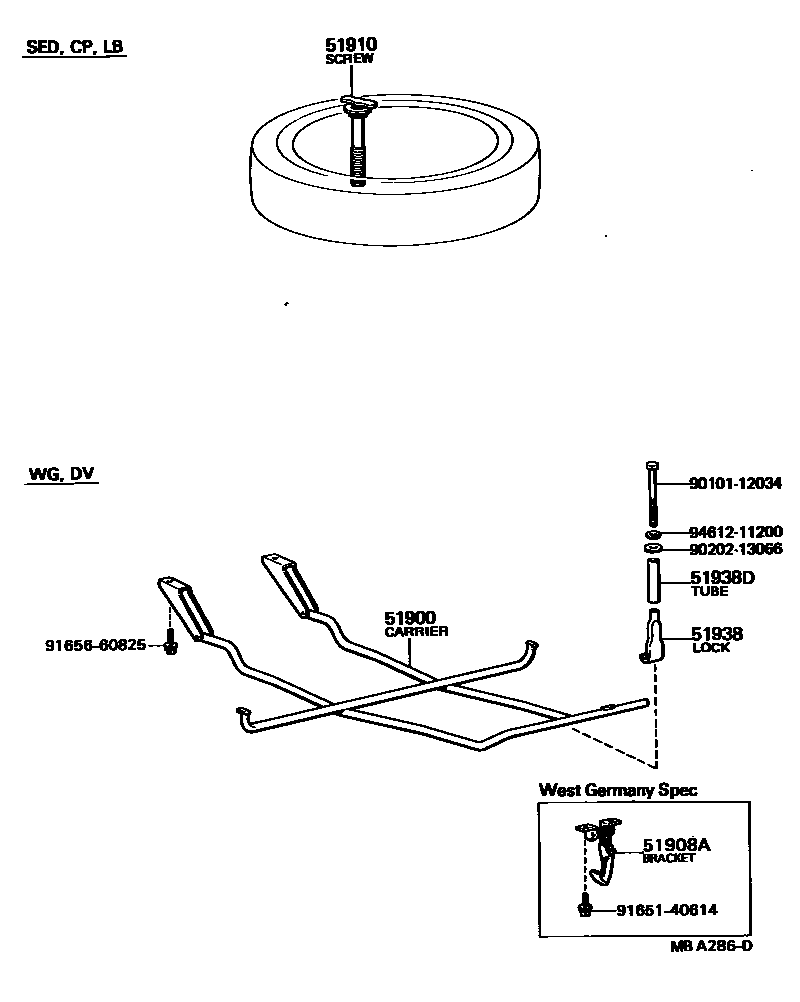

10 parts on this diagram · 1 diagram in section
