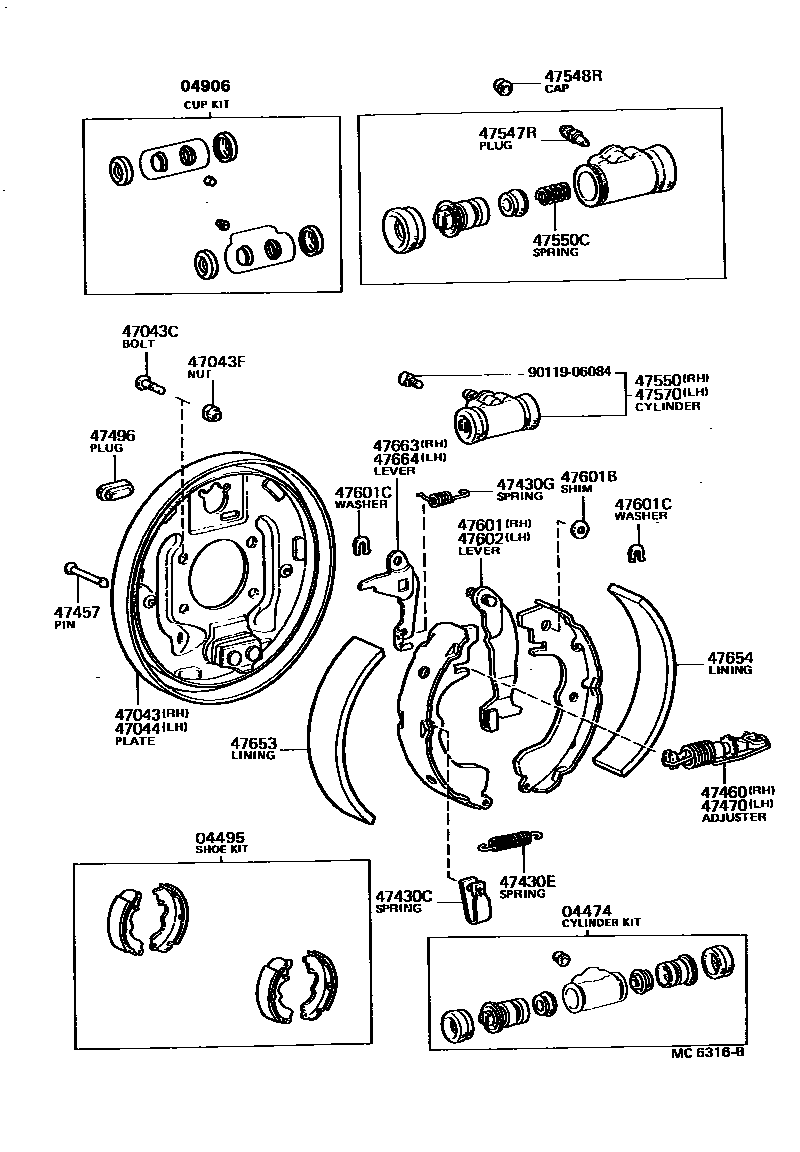

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0003 1

04474CYLINDER KIT, REAR WHEEL

main04474-11030iKE70;TE71..(DX,SE,SR,STD,XE)..GEN197908-197910

sub04474-11031

main04474-11031iTE71..(DX,SE,SR,STD,XE)..(GEN,SAA)197910-198110

sub04474-11032

main04474-11032iTE71..(DX,SR,STD,XE)..(GEN,SAA)198110-198201

main04474-12020iTE71..(DX,GL,SR,STD,XE)..(GEN,SAA)198201-198707

sub04474-11032

04495SHOE KIT, REAR BRAKE

main04495-12010iTE71..(DX,GL,SE,SR,STD,XE)..(GEN,SAA)197908-198707

sub04495-12011

main04495-14010iTE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)197908-198707

sub04495-14011

04906CUP KIT, REAR WHEEL CYLINDER

main04906-11031iKE70..ARL,EUR,GEN,SAA197908-198707

WHEEL CYLINDER ID=20.64

main04906-12030iCE70,TE71..LHD..(DX,SR,XE)..EUG197908-198305

WHEEL CYLINDER ID=19.05

main04906-12040iAE71,KE70,TE7#..SA197908-198707

WHEEL CYLINDER ID=20.64

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-12030iTE71..(CP,LB,SED)..(DX,GL,SE,SR,STD,XE)..(GEN,SAA)197908-198707

sub47043-16030

sub47492-32010

main47043-12040iAE71,KE70..2D..ARL197908-198406

main47043-13010iAE71,KE70..(DV,WG)..SA198204-198707

main47043-14011iKE70,TE71..(LB,SED)..SA;TE72..(GL,SE,XE)..(EUR,SA)197908-198502

sub47043-12060

main47043-20050iTE71..GT;TE72..ARL,EUR197908-198305

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22011iTE71..GT;TE71..DV,WG;TE72..ARL,EUR197908-198707

*10-1.25PX37-15

main42184-22020iKE70..DV..(EUR,GEN);KE70..(CP,LB,SED,WG)..(EUR,GEN,SA,SAA)197908-198707

*10-1.25PX26-10

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94181-11000iCE70,KE70,TE7#197908-198707

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-12030iAE71,KE70,TE71..EUR,GEN,SAA197908-198707

sub47044-16030

sub47492-32010

main47044-12040iTE71..WG..GEN197908-198406

main47044-13010iCE70,TE71..DV,WG198204-198707

main47044-14011iKE70,TE71..(LB,SED)..SA;TE72..(GL,SE,XE)..(EUR,SA)197908-198502

sub47044-12060

main47044-20050iTE71..GT;TE72..ARL,EUR197908-198305

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main47446-10010iTE71..(DX,GL,SE,SR,STD,XE)..(GEN,SAA)197908-198707

main90501-18017iTE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)197908-198707

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18299iTE71..(DX,GL,SE,SR,STD,XE)..(GEN,SAA)197908-198707

main90506-23346iTE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)197908-198707

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011iAE71,KE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)197908-198707

main90506-12276iAE71,KE70..ARL,EUR,GEN,SAA197908-198707

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-10010iTE71..(DX,GL,SE,SR,STD,XE)..(GEN,SAA)197908-198707

main47447-20030iTE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)197908-198707

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-12020iTE71..(DX,GL,SE,SR,STD,XE)..(GEN,SAA)197908-198707

main47061-14021iTE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)197908-198707

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-12020iTE71..(DX,GL,SE,SR,STD,XE)..(GEN,SAA)197908-198707

main47062-14021iTE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)197908-198707

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iAE71,CE70,KE70,TE7#197908-198707

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iAE71,CE70,KE70,TE7#197908-198707

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iAE71,CE70,KE70,TE7#197908-198707

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-12060iCE70198608-198707

ID=20.64

main47550-19115iKE70;TE71..(DX,SE,SR,STD,XE)..GEN197908-197910

ID=20.64

sub47550-19116

main47550-19116iKE70..ARL,EUR,GEN,SAA197910-198110

ID=20.64

sub47550-19117

main47550-19117iKE70..ARL,EUR,GEN,SAA198110-198201

ID=20.64

main47550-19125iTE71..GT;TE72..ARL,EUR197908-198305

ID=19.05

main47550-19135iCE70,TE71..EUG197908-198608

ID=20.64

sub47550-12060

main47550-19165iAE71,KE70..ARL,EUR,GEN,SAA198201-198707

ID=20.64

sub47550-19117

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-12010iCE70,TE71..LHD..(DX,SR,XE)..EUG197908-198305

WHEEL CYLINDER ID=19.05

main47509-12020iCE70,TE71..EUG197908-198707

WHEEL CYLINDER ID=20.64

main90501-07006iTE71..(DX,SE,SR,STD,XE)..(GEN,SAA)197908-198707

sub90029-60014

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-12060iAE71,KE70198608-198707

ID=20.64

main47550-19115iKE70;TE71..(DX,SE,SR,STD,XE)..GEN197908-197910

ID=20.64

sub47550-19116

main47550-19116iKE70..ARL,EUR,GEN,SAA197910-198110

ID=20.64

sub47550-19117

main47550-19117iTE71..(DX,SR,STD,XE)..(GEN,SAA)198110-198201

ID=20.64

main47550-19125iCE70,TE71..LHD..(DX,SR,XE)..EUG197908-198305

ID=19.05

main47550-19135iAE71,KE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)197908-198608

ID=20.64

sub47550-12060

main47550-19165iTE71..(DX,GL,SR,STD,XE)..(GEN,SAA)198201-198707

ID=20.64

sub47550-19117

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-14010iTE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)197908-198707

main47611-12011iTE71..(DX,GL,SE,SR,STD,XE)..(GEN,SAA)197908-198707

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iAE71,CE70,KE70,TE7#197908-198707

T=0.3,T=0.3

main90564-08151iAE71,CE70,KE70,TE7#197908-198707

T=0.6,T=0.6

main90564-08152iAE71,CE70,KE70,TE7#197908-198707

T=0.9,T=0.9

main90564-08172iAE71,CE70,KE70,TE7#197908-198707

T=0.2,T=0.2

main90564-08173iAE71,CE70,KE70,TE7#197908-198707

T=0.4,T=0.4

main90564-08174iAE71,CE70,KE70,TE7#197908-198707

T=0.5,T=0.5

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iAE71,CE70,KE70,TE7#197908-198707

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-14010iAE71,KE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)197908-198707

main47612-12011iTE71..(DX,GL,SE,SR,STD,XE)..(GEN,SAA)197908-198707

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47651-12020iTE71..(DX,GL,SE,SR,STD,XE)..(GEN,SAA)197908-198707

main47655-14010iTE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)197908-198707

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47651-12020iAE71,KE70..ARL,EUR,GEN,SAA197908-198707

main47655-14010iAE71,KE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)197908-198707

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-12011iAE71,KE70..ARL,EUR,GEN,SAA197908-198707

main47643-20020iAE71,KE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)197908-198707

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-12011iAE71,KE70..ARL,EUR,GEN,SAA197908-198707

main47644-20020iTE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)197908-198707

9011906084

main90119-06084

28 parts on this diagram · 2 diagrams in section
