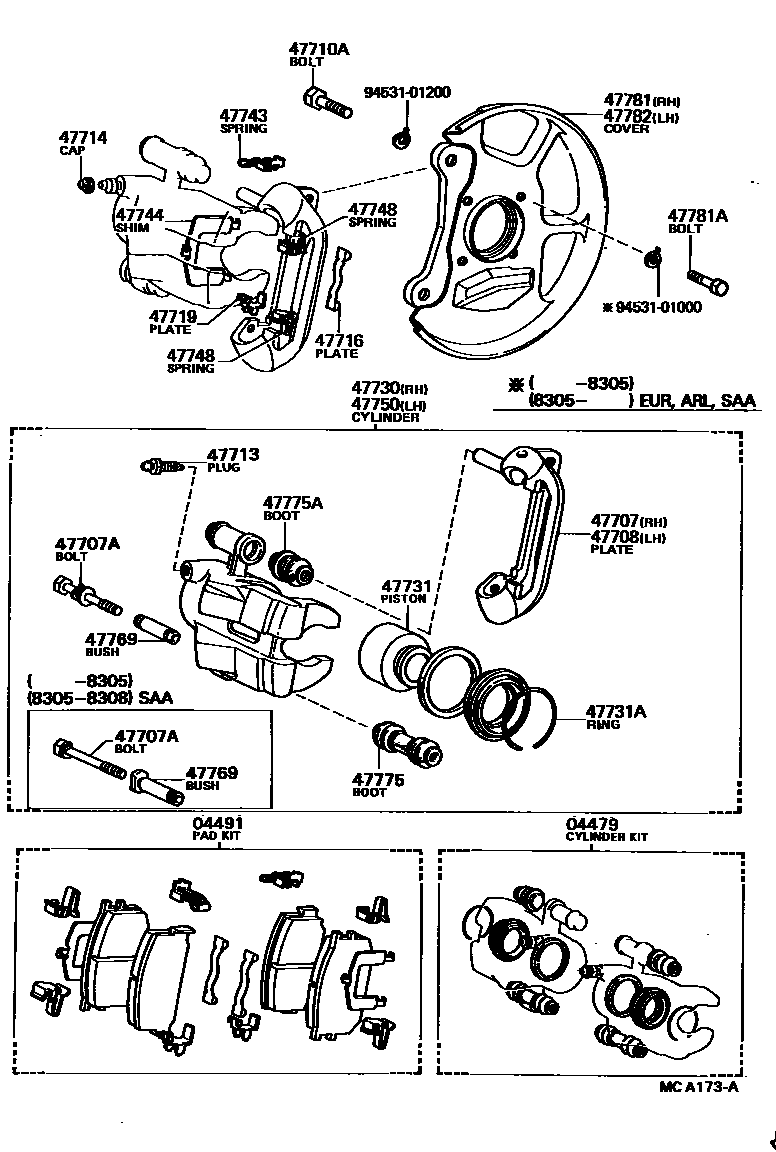

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0004 1 0007 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12060iKE70,TE71..SAA197908-198308

sub04479-12100

main04479-12070iKE70,TE72..2D..ARL197908-198309

SUMITOMO

sub04479-12071

main04479-12080iTE72..SDN;CE70,KE70,TE71..EUR197908-198309

TOYOTA

main04479-12100iAE71,KE70,TE71..GEN198305-198707

main04479-14060iAE71..STD198305-198707

04491PAD KIT, DISC BRAKE, FRONT

main04491-12130iKE70,TE71..GEN197908-198108

sub04491-12160

main04491-12140iKE70,TE7#..ARL,EUR197908-198009

sub04491-12141

main04491-12141iKE70,TE71..LHD..EUR198009-198309

sub04465-12360

main04491-12151iKE70,TE71..RHD..EUG198210-198305

sub04491-12152

main04491-12160iKE70,TE71..GEN,SAA198108-198411

sub04491-12161

main04491-12161iAE71,KE70..GEN198411-198707

sub04465-12410

main04491-14150iAE71..STD198305-198707

sub04465-12370

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-12030iAE71,KE70,TE71..GEN,SAA197908-198707

main47707-14010iCE70,KE70..EUR198305-198707

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-08199iKE70,TE71..SAA197908-198308

main90119-08431iAE71..STD198305-198707

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47708-12020iAE71,KE70,TE71..GEN,SAA197908-198707

main47708-14010iAE71..STD198305-198707

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-10020iKE70..4D..ARL198108-198305

main90101-10089iAE71,KE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)198007-198707

main90101-12064iCE70,KE70..EUR198010-198707

main90101-12332iTE71..GEN,SAA197908-198707

*12-1.25PX15.7-10

main91161-71220iTE7#..ARL,EUR197908-198010

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12040iKE70,TE72..2D..ARL197908-198309

SUMITOMO

main47547-20010iTE72..SDN;AE71,CE70,KE70,TE71..EUR,GEN,SAA197908-198707

TOYOTA

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAE71,CE70,KE70,TE7#197908-198707

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-14020iAE71,KE70,TE71..GEN,SAA197908-198707

main47716-14080iAE71..STD198305-198707

47719PLATE, FRONT DISC BRAKE PAD GUIDE

main47736-12010iAE71..STD197908-198406

main47736-12040iAE71,CE70,KE70..EUR,GEN198406-198707

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12100iKE70,TE71..GEN,SAA197908-198308

sub47730-12240

main47730-12110iKE70,TE7#..ARL,EUR197908-198009

SUMITOMO

sub47730-12111

main47730-12111iTE72..SDN;CE70,KE70,TE71..EUR198009-198309

SUMITOMO

main47730-12140iKE70,TE7#..ARL,EUR197908-198009

TOYOTA

sub47730-12111

main47730-12141iTE72..SDN;CE70,KE70,TE71..EUR198009-198309

TOYOTA

sub47730-12111

main47730-12240iAE71,KE70,TE71..GEN198305-198707

main47730-12250iAE71..STD198305-198707

47731PISTON, FRONT DISC BRAKE

main47731-12050iAE71,KE70,TE71..GEN,SAA197908-198707

main47731-12060iKE70,TE72..2D..ARL197908-198309

TOYOTA

sub47731-12070

main47731-12070iTE72..SDN;CE70,KE70,TE71..EUR197908-198309

SUMITOMO

main47731-14070iCE70,KE70..EUR198305-198707

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-54038iKE70,TE71..GEN,SAA197908-198308

sub90522-58001

main90522-58001iAE71,KE70,TE71..GEN198305-198707

main90522-60003iTE72..SDN;CE70,KE70,TE71..EUR197908-198309

SUMITOMO

main90522-60004iCE70,KE70..EUR198305-198707

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-12010iAE71..STD197908-198701

LH

main47748-12050iAE71..STD197908-198701

RH

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47735-12010iKE70,TE7#..ARL,EUR197911-198004

LH

main47744-12020iTE72..SDN;CE70,KE70,TE71..EUR198004-198309

main47744-12030iKE70,TE7#..ARL,EUR197911-198004

RH

main47744-12040iAE71,KE70,TE71..GEN,SAA197908-198707

main47744-14050iAE71..STD198305-198707

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47743-12020iAE71,KE70,TE71..GEN,SAA197908-198707

RH=UPR,LH=LWR

main47743-14040iAE71..STD198305-198707

RH=UPR,LH=LWR

main47748-12010iKE70,TE7#..ARL,EUR197908-198009

OUTER,SUMITOMO

main47748-12020iKE70,TE7#..ARL,EUR197908-198009

INNER,SUMITOMO

main47748-12030iKE70,TE7#..ARL,EUR197908-198009

OUTER,TOYOTA

main47748-12040iKE70,TE7#..ARL,EUR197908-198009

INNER,TOYOTA

main47748-12060iAE71,KE70,TE71..GEN,SAA197908-198707

RH=LWR,LH=UPR

main47748-12070iKE70,TE72..2D..ARL198009-198309

SUMITOMO

main47748-12080iKE70,TE72..2D..ARL198009-198309

TOYOTA

main47748-14050iAE71..STD198305-198707

RH=LWR,LH=UPR

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12100iKE70,TE71..SAA197908-198308

sub47750-12240

main47750-12110iKE70,TE7#..ARL,EUR197908-198009

SUMITOMO

sub47750-12111

main47750-12111iTE72..SDN;CE70,KE70,TE71..EUR198009-198309

SUMITOMO

main47750-12140iKE70,TE7#..ARL,EUR197908-198009

TOYOTA

sub47750-12111

main47750-12141iTE72..SDN;CE70,KE70,TE71..EUR198009-198309

TOYOTA

sub47750-12111

main47750-12240iAE71,KE70,TE71..GEN198305-198707

main47750-12250iAE71..STD198305-198707

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12010iKE70,TE71..GEN197908-198108

sub47769-28H02

main47769-14010iKE70,TE71..GEN,SAA198108-198308

sub47769-28H00

sub47769-28H01

main47769-28010iAE71..STD198305-198707

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-12010iKE70,TE71..GEN197908-198108

main47775-14010iAE71..STD198108-198707

47775ABOOT, PIN

main47775-12020iKE70,TE71..GEN197908-198108

sub47776-14010

main47776-14010iAE71..STD198108-198707

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-12070iTE71..GEN,SAA197908-198308

main47703-12080iAE71,KE70..GEN,SAA197908-198707

main47703-12090iKE70..EUR197908-198309

main47703-12100iCE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)197908-198305

main47703-12110iAE71..STD198305-198707

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-10082iKE70..ARL,EUR,GEN,SAA197908-198111

sub90119-10804

main90119-10157iAE71,KE70,TE71..GEN198111-198707

main91111-71020iCE70,TE71..EUR,GEN,SAA;TE72..(DX,SE)..(ARL,EUR)197908-198707

main91111-71025iAE71,KE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)198007-198707

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-12070iTE71..SAA197908-198308

main47704-12080iTE71..GEN197908-198707

main47704-12090iKE70..2D..ARL197908-198309

main47704-12100iCE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)197908-198305

main47704-12110iAE71..STD198305-198707

9453101000

main94531-01000

9453101200

main94531-01200

25 parts on this diagram · 3 diagrams in section
