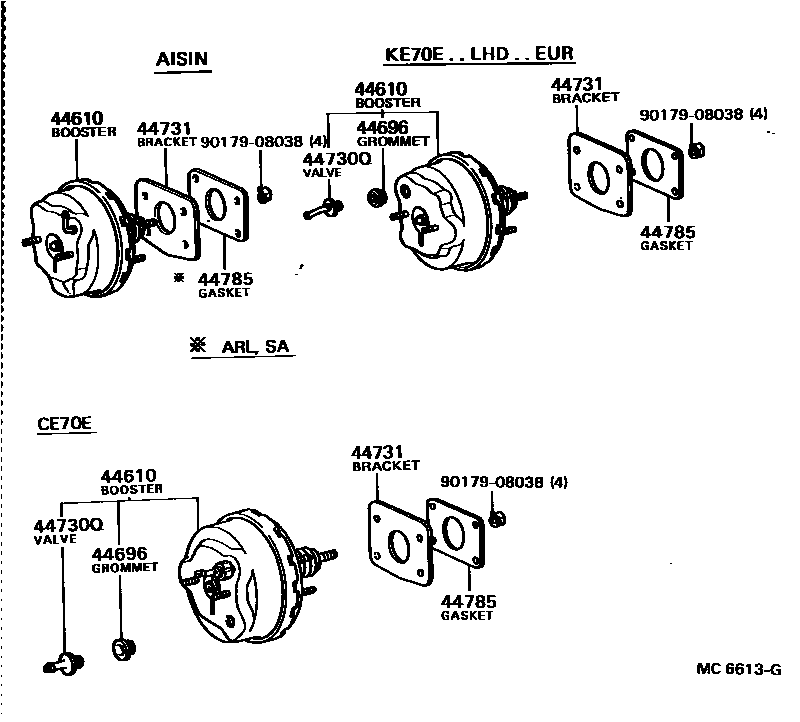

BRAKE BOOSTER & VACUUM TUBE

0001 1.RHD 0007 1.RHD 0013 1 0014 1 0016 1 0019 1 0021 1 0022 1 0023 1 0024 1 0025 1

44610BOOSTER ASSY, BRAKE

main44610-12220iKE70..RHD..GEN¥33,000197908-198305

JKC,5INCHES

main44610-12230iKE70,TE7#..SA¥35,000197908-198305

AISIN,6INCHES

main44610-12250iAE71,KE70..ARL¥40,500197908-198707

AISIN,7.5INCHES

main44610-12260iTE7#..RHD..(ARL,EUR)¥40,400197908-198305

JKC,7.5INCHES

main44610-12270iKE70..SAA¥31,500197908-198308

AISIN,5INCHES

main44610-12290iKE70..LHD..EUR197908-198305

AISIN,7.5INCHES

main44610-12300iTE7#..LHD..(EUG,SDN)197908-198305

JKC,7.5INCHES

main44610-12320iTE71..LHD..(GEN,SAA)¥36,300197908-198308

JKC,6INCHES

main44610-12350iAE71..GEN¥42,300198508-198707

main44610-12370iCE70..LHD¥41,200198210-198707

AISIN,7INCHES

main44610-12380iCE70..RHD198210-198305

AISIN,7.5INCHES

main44610-12400iKE70..RHD..EUG¥38,300198305-198707

JKC,7INCHES

main44610-12470iKE70,TE71..RHD..GEN¥35,100198305-198707

JKC,6INCHES

main44610-12490iKE70..LHD..EUR¥40,200198305-198707

AISIN,7INCHES

main44610-12500iKE70..LHD..GEN¥36,200198305-198707

AISIN,6INCHES

main44610-12600iCE70..RHD¥42,400198501-198707

44696GROMMET, CHECK VALVE

main90480-24439iKE70..LHD..EUR¥390197908-198707

44730QVALVE ASSY, VACUUM CHECK, NO.2

main44730-10010iCE70..LHD¥1,820198210-198707

main44730-20060iKE70..LHD..EUR¥2,920197908-198707

main44730-22080iCE70..RHD¥2,160198210-198707

44731BRACKET, BRAKE BOOSTER, FRONT

main44731-12030iAE71..GEN198508-198707

main44731-14020iKE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)¥760197908-198707

44785GASKET, BRAKE BOOSTER

main44785-14010iAE71,CE70,KE70,TE7#¥250197908-198707

9017908038

main90179-08038¥130

6 parts on this diagram · 11 diagrams in section
