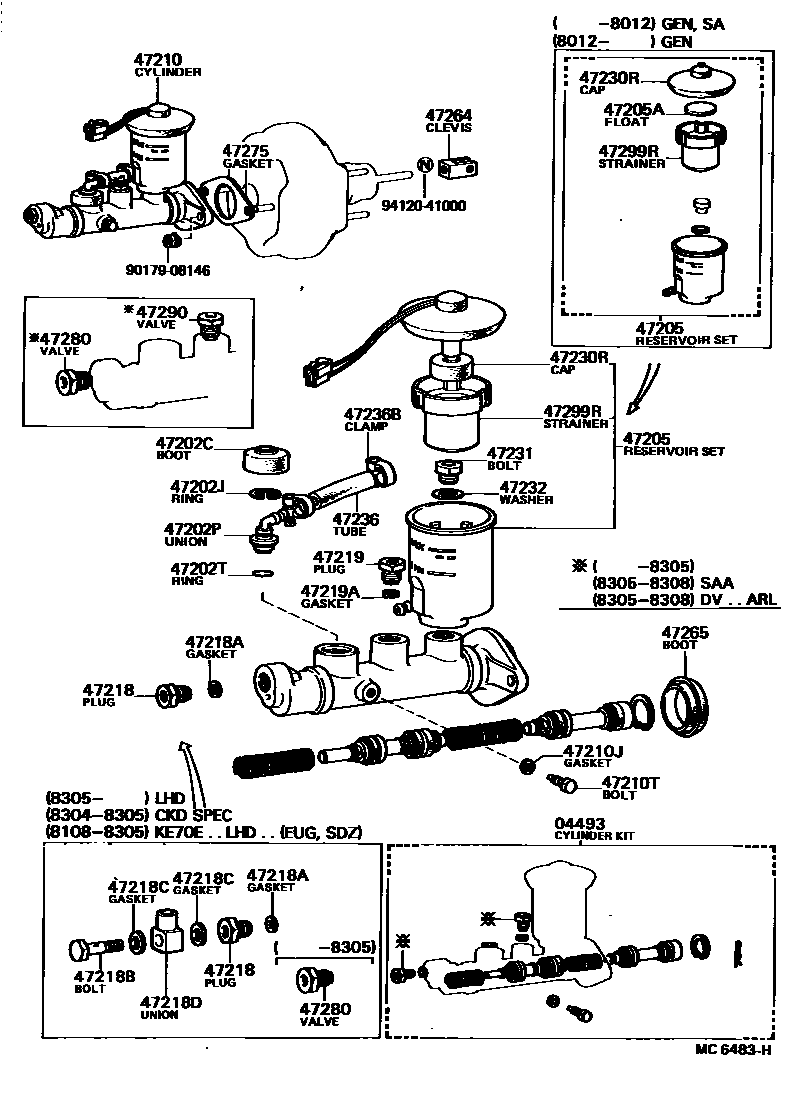

BRAKE MASTER CYLINDER

0001 1 0007 1 0008 1 0009 1

04493CYLINDER KIT, BRAKE MASTER

main04493-12090iKE70..LB..LHD..GEN;KE70..LHD..4D..DX..GEN;KE70..LHD..(GL,STD,XL)..GEN198304-198305

CKD SPEC

main04493-12090iKE70..LHD..(EUG,SDZ)198108-198305

main04493-12110iAE71..GEN198508-198707

main04493-12150iAE71..STD198305-198707

main04493-20100iKE70..SDZ198208-198305

SWEDEN PACKAGE

main04493-20100iAE71,KE70..ARL197908-198707

47202CBOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE)

main47265-20060iKE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;197908-198707

47202JRING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)

main96151-02000iKE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;197908-198707

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90405-10125iKE70,TE72..SDN,SDZ197908-198707

SWEDEN PACKAGE

main90407-10003iKE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;197908-198707

sub90407-10004

47202TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)

main90301-14001iKE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;197908-198707

47205RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)

main47202-12240iKE70,TE7#..RHD..(ARL,EUR)197908-198707

main47202-12250iCE70,KE70,TE71..LHD198305-198707

W/LEVEL WARNING

main47202-12250iTE71..LB..LHD..4F;KE70..SED..LHD..4F..4D..GEN198012-198108

SAUDI ARABIA SPEC

main47202-12250iKE70..SAA;TE71..LHD..(EUR,SAA);CE70,KE70,TE72..LHD..(EUG,SDZ)197908-198305

main47202-12260iKE70,TE72..SDN197908-198108

sub47202-14260

main47202-12280iAE71,KE70,TE71..LHD..GEN197908-198707

main47202-12290iKE70,TE71..RHD..GEN197908-198707

main47202-14260iKE70,TE72..SDN,SDZ198108-198707

SWEDEN SPEC

47205AFLOAT, BRAKE MASTER CYLINDER RESERVOIR(FOR REAR SIDE)

main31426-20010iKE70,TE71..GEN197908-198707

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-12230iCE70,KE70,TE7#..RHD..(ARL,EUR,SA)197908-198707

main47201-12231iAE71..STD198305-198707

main47201-12240iKE70,TE71..SAA197908-198308

sub47207-12020

sub84460-12011

main47201-12240iTE71..LB..LHD..4F;KE70..SED..LHD..4F..4D..GEN198012-198108

SAUDI ARABIA SPEC

sub47207-12020

sub84460-12011

main47201-12250iKE70,TE72..SDN,SDZ197908-198305

SWEDEN PACKAGE

main47201-12251iKE70..SDZ198305-198707

SWEDEN PACKAGE

main47201-12260iKE70,TE71..LHD..GEN197908-198305

sub47207-12020

sub31426-20010

sub47230-20030

main47201-12262iKE70..LHD..GEN198305-198707

main47201-12280iKE70,TE71..RHD..GEN197908-198305

sub47201-12281

main47201-12281iKE70,TE71..RHD..GEN198305-198707

main47201-12290iTE7#..LHD..(EUG,SDZ)198108-198305

sub47201-12330

main47201-12300iKE70..LHD..(EUG,SDZ)198108-198305

sub47207-12030

sub84460-12011

main47201-12301iKE70..LHD..EUR198305-198707

W/LEVEL WARNING

main47201-12330iCE70..LHD198210-198305

main47201-12331iCE70..LHD198305-198707

main47201-12470iKE70..LB..LHD..GEN;KE70..LHD..4D..DX..GEN;KE70..LHD..(GL,STD,XL)..GEN198304-198305

CKD SPEC

sub47207-12030

sub31426-20010

sub47230-20030

main47201-12520iAE71..GEN198508-198707

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iAE71,CE70,KE70,TE7#197908-198707

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iAE71,CE70,KE70,TE7#197908-198707

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-12040iKE70,TE71..RHD;AE71,CE70,TE72..ARL,EUR,SA198305-198707

SWEDEN SPEC

main47218-12050iKE70..LHD198305-198707

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iAE71,CE70,KE70,TE7#197908-198707

47218BBOLT, UNION(FOR MASTER CYLINDER FLUID OUTLET)

main90401-10037iKE70..LHD..(EUG,SDZ)198108-198707

main90401-10037iKE70..LB..LHD..GEN;KE70..LHD..4D..DX..GEN;KE70..LHD..(GL,STD,XL)..GEN198304-198305

CKD SPEC

47218CGASKET(FOR MASTER CYLINDER FLUID OUTLET)

main90430-10074iKE70..LHD198108-198707

main90430-10074iKE70..LB..LHD..GEN;KE70..LHD..4D..DX..GEN;KE70..LHD..(GL,STD,XL)..GEN198304-198305

CKD SPEC

47218DUNION(FOR MASTER CYLINDER FLUID OUTLET)

main90405-10073iKE70..LHD..(EUG,SDZ)198108-198707

main90405-10073iKE70..LB..LHD..GEN;KE70..LHD..4D..DX..GEN;KE70..LHD..(GL,STD,XL)..GEN198304-198305

CKD SPEC

47219PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE)

main47218-12040iAE71,CE70,KE70,TE7#198305-198707

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iAE71,CE70,KE70,TE7#197908-198707

47230RCAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)

main47230-20030iKE70,TE7#..GEN,SA197908-198707

main84460-12011iKE70..SAA;TE71..LHD..(EUR,SAA);CE70,KE70,TE72..LHD..(EUG,SDZ)197908-198305

main84460-12011iCE70,KE70,TE71..LHD198305-198707

W/LEVEL WARNING

main84460-12011iKE70..RHD;TE71..LB..RHD;TE71..CP,SED,WG;KE70..SED..LHD..4F..2D;KE70..SED..4F..4D..EUR;TE71..LB..LHD..(3FC,5F);KE70..SED..LHD..(2FC,5F);KE70..(CP,DV,LB,WG)..LHD198012-198108

SAUDI ARABIA SPEC

main84460-12030iKE70,TE72..SDN,SDZ197908-198707

SWEDEN PACKAGE

main84460-20051iKE70,TE7#..RHD..(ARL,EUR)197908-198707

sub84460-12011

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-20010iKE70,TE72..SDN,SDZ197908-198707

SWEDEN PACKAGE

main47231-30010iKE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;197908-198707

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iKE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;197908-198707

47236TUBE, RESERVOIR BRAKE

main47234-14010iAE71,CE70,KE70,TE7#197908-198707

47236BCLAMP(FOR RESERVOIR TUBE)

main90460-16069iTE72;KE70..SDN,SDZ;TE71..RHD..EUG;TE71..GEN,SA,SAA;AE71,CE70,KE70..RHD;KE70..LHD..(GEN,SAA)197908-198707

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-20020iKE70,TE7#197908-198011

main47264-22010iAE71,CE70,KE70,TE7#198011-198707

47265BOOT, MASTER CYLINDER

main47265-20050iAE71,CE70,KE70,TE7#197908-198707

47275GASKET, BRAKE MASTER CYLINDER

main47275-14010iAE71,CE70,KE70,TE7#197908-198707

sub47275-26010

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-12030iKE70..LB..LHD..GEN;KE70..LHD..4D..DX..GEN;KE70..LHD..(GL,STD,XL)..GEN198304-198305

CKD

sub47280-24010

main47280-12030iKE70..LHD..EUG198108-198208

sub47280-24010

main47280-30030iKE70..SDZ198208-198305

SWEDEN PACKAGE

sub47280-14010

main47280-30030iKE70..2D..ARL197908-198707

sub47280-14010

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47280-30030iCE70,KE70,TE7#197908-198707

sub47280-14010

47299RSTRAINER, MASTER CYLINDER RESERVOIR, REAR

main47299-14010iKE70,TE72..SDN198108-198707

main47299-20010iKE70,TE7#197908-198202

9017908146

main90179-08146

9412041000

main94120-41000

30 parts on this diagram · 4 diagrams in section
