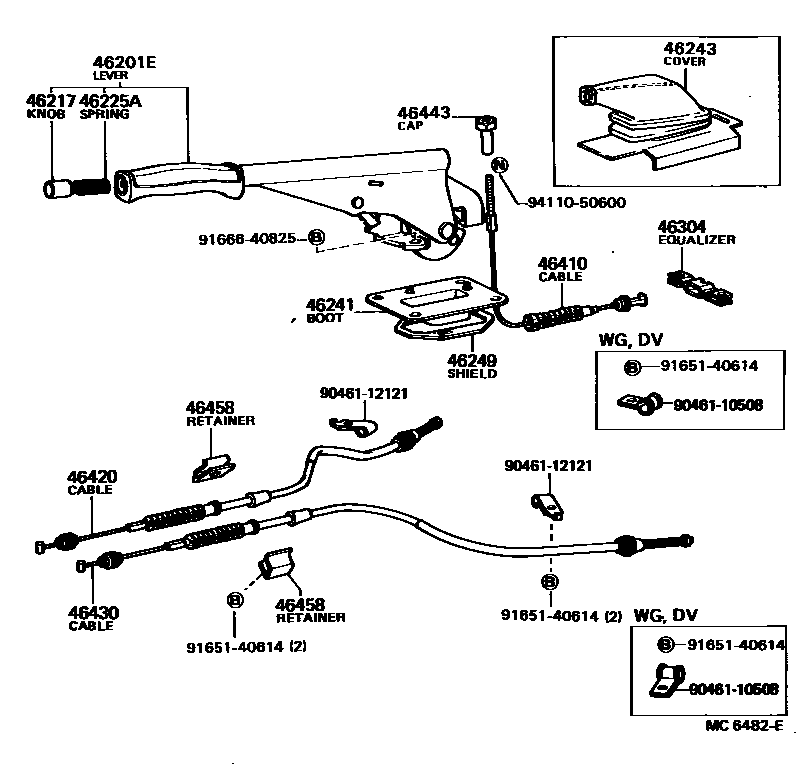

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12050iKE70,TE7#..EUR197908-198108

sub46201-10030

main46201-12070-01iKE70,TE71..(DX,GL)..GEN198108-198308

BLACK,BLACK,TRIM0#,2#,4#,8#

sub46201-12071

sub46241-12051

main46201-12070-01iKE70,TE7#..ARL,GEN,SA197908-198308

BLACK,BLACK,TRIM0#,2#

sub46201-12071

sub46241-12051

main46201-12070-01iKE70..2D..ARL198305-198309

BLACK,BLACK,TRIM2#,4#,8#

sub46201-12071

sub46241-12051

main46201-12070-02iCE70,KE70..(DV,WG)..(EUR,GEN)198305-198308

MAROON,RED/MAROON,TRIM3#

sub46201-12071

sub46241-12051

main46201-12070-03iCE70,KE70..(DV,WG)..(EUR,GEN)198305-198308

GRAY,GRAY,TRIM1#

sub46201-12071

sub46241-12051

main46201-12070-04iKE70,TE7#..(DX,GL,GT,SE,SR,XE,XL)..(ARL,GEN,SA)197908-198112

BLUE,BLUE,TRIM8#

sub46201-12071

sub46241-12051

main46201-12070-05iKE70,TE7#..(SED,WG)..(DX,GL,XL)..(GEN,SA)197908-198305

BEIGE,BEIGE,TRIM4#

sub46201-12071

sub46241-12051

main46201-12070-06iKE70,TE71..(DX,GL)..GEN197908-198308

DARK BROWN,BROWN,TRIM4#

sub46201-12071

sub46241-12051

main46201-12070-06iKE70,TE7#..(DX,GL,GT,SR,XE,XL)..(EUR,GEN,SAA)198108-198204

DARK BROWN,BROWN,TRIM8#

sub46201-12071

sub46241-12051

main46201-12070-14iKE70,TE71..(DX,GL)..GEN198112-198308

BLUE,BLUE,TRIM8#

sub46201-12071

sub46241-12051

main46201-12071-01iKE70,TE71..(DX,GL)..GEN198308-198410

BLACK,BLACK,TRIM0#,2#

sub46201-12072

main46201-12071-01iKE70,TE7#..SA198308-198501

BLACK,BLACK,TRIM0#,2#,4#,8#

sub46201-12072

main46201-12071-02iCE70,KE70..(DV,WG)..(EUR,GEN)198308-198408

MAROON,RED/MAROON,TRIM3#

sub46201-12072

main46201-12071-03iAE71..STD198308-198501

GRAY,GRAY,TRIM1#

sub46201-12072

main46201-12071-04iAE71,KE70..SED..ARL198308-198408

BLUE,BLUE,TRIM8#

sub46201-12072

main46201-12071-06iAE71,KE70..ARL198308-198501

DARK BROWN,BROWN,TRIM4#

sub46201-12072

main46201-12071-16iCE70,KE70..EUR,GEN198408-198501

BROWN,BROWN,TRIM4#

sub46201-12072

main46201-12072-01iAE71,KE70,TE71..SA198501-198707

BLACK,BLACK,TRIM2#

sub46201-12072

main46201-12072-03iAE71,CE70,KE70..EUR,GEN198501-198707

GRAY,GRAY,TRIM1#

sub46201-12072

main46201-12072-06iAE71,KE70,TE71..SA198501-198707

DARK BROWN,DARK BROWN,TRIM4#

sub46201-12072

main46201-12072-16iCE70,KE70..EUR,GEN198501-198707

BROWN,BROWN,TRIM4#

sub46201-12072

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-01iKE70,TE7#..ARL,GEN,SA197908-198707

BLACK,BLACK,TRIM0#,2#,4#,8#

sub46217-10020

sub46217-20020

main46217-10020-01iAE71,KE70..4D..ARL198305-198410

BLACK,BLACK,TRIM0#,2#

sub46217-10020

sub46217-20020

main46217-10020-01iKE70..2D..ARL198305-198309

BLACK,BLACK,TRIM2#,4#,8#

sub46217-10020

sub46217-20020

main46217-10020-04iKE70,TE7#..DX,GL,GT,SE,SR,XE,XL197908-198112

BLUE,BLUE,TRIM8#

sub46217-10020

sub46217-20020

main46217-10020-14iAE71,KE70..SED..ARL198112-198408

BLUE,BLUE,TRIM8#

sub46217-10020

sub46217-20020

main46217-10020-16iKE70,TE7#..(DX,GL)..SA197908-198305

BROWN,BROWN,TRIM4#

sub46217-10020

sub46217-20020

main46217-10020-22iCE70,KE70..(DV,WG)..(EUR,GEN)198305-198408

MAROON,RED/MAROON,TRIM3#

sub46217-10020

sub46217-20020

main46217-10020-23iAE71,CE70,KE70..(DV,WG)..(EUR,GEN)198305-198707

GRAY,GRAY,TRIM1#

sub46217-10020

sub46217-20020

main46217-10020-26iKE70,TE71..(DX,GL)..GEN197908-198707

DARK BROWN,BROWN,TRIM4#

sub46217-10020

sub46217-20020

main46217-10020-56iAE71,CE70,KE70..EUR,GEN198408-198707

BROWN,BROWN,TRIM4#

sub46217-10020

sub46217-20020

main46217-12010iKE70,TE7#..EUR197908-198108

sub46217-10020

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10745iAE71,CE70,KE70,TE7#197908-198707

46241BOOT, PARKING BRAKE LEVER

main46241-12050iAE71,CE70,KE70,TE7#197908-198308

sub46241-12051

main46241-12051iAE71,CE70,KE70,TE7#198308-198707

46243COVER, PARKING BRAKE LEVER

main46243-14031iCE70,KE70..2D198508-198707

46249SHIELD, PARKING BRAKE HOLE

main46249-22020iAE71,CE70,KE70,TE7#197908-198707

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-12010iAE71,CE70,KE70,TE7#197908-198707

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12070iAE71,CE70,KE70,TE7#197908-198707

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12210iTE71..(CP,LB,SED)..(DX,GL,SE,SR,XE)..(GEN,SAA)197908-198305

sub46420-12211

main46420-12211iAE71,KE70,TE71..(LB,SED)..(ARL,GEN,SAA)198305-198410

main46420-12230iTE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)197908-198502

main46420-13010iKE70,TE71..(DV,WG)..(ARL,EUR,GEN,SAA)197908-198305

sub46420-13011

main46420-13011iAE71,KE70..(DV,WG)..(ARL,EUR,GEN,SAA)198305-198707

main46420-13030iTE71..(DV,WG)..SA198204-198305

sub46420-13031

main46420-13031iCE70,TE71..DV,WG198305-198707

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12110iTE71..(CP,LB,SED)..(DX,GL,SE,SR,XE)..(GEN,SAA)197908-198305

sub46430-12111

main46430-12111iAE71,KE70,TE71..(LB,SED)..(ARL,GEN,SAA)198305-198410

main46430-12130iKE70,TE71..(LB,SED)..SA;TE72..(GL,SE,XE)..(EUR,SA)197908-198502

main46430-13010iKE70,TE71..(DV,WG)..(ARL,EUR,GEN,SAA)197908-198305

sub46430-13011

main46430-13011iAE71,KE70..(DV,WG)..(ARL,EUR,GEN,SAA)198305-198707

main46430-13030iTE71..(DV,WG)..SA198204-198305

sub46430-13031

main46430-13031iCE70,TE71..DV,WG198305-198707

46443CAP, CABLE ADJUSTING

main46443-12040iAE71,CE70,KE70,TE7#197908-198707

46458RETAINER, CABLE

main46458-20020iAE71,CE70,KE70,TE7#197908-198707

sub46458-50010

9046110508

main90461-10508

9046112121

main90461-12121

9165140614

main91651-40614

9166640825

main91666-40825

9411050600

main94110-50600

17 parts on this diagram · 1 diagram in section
