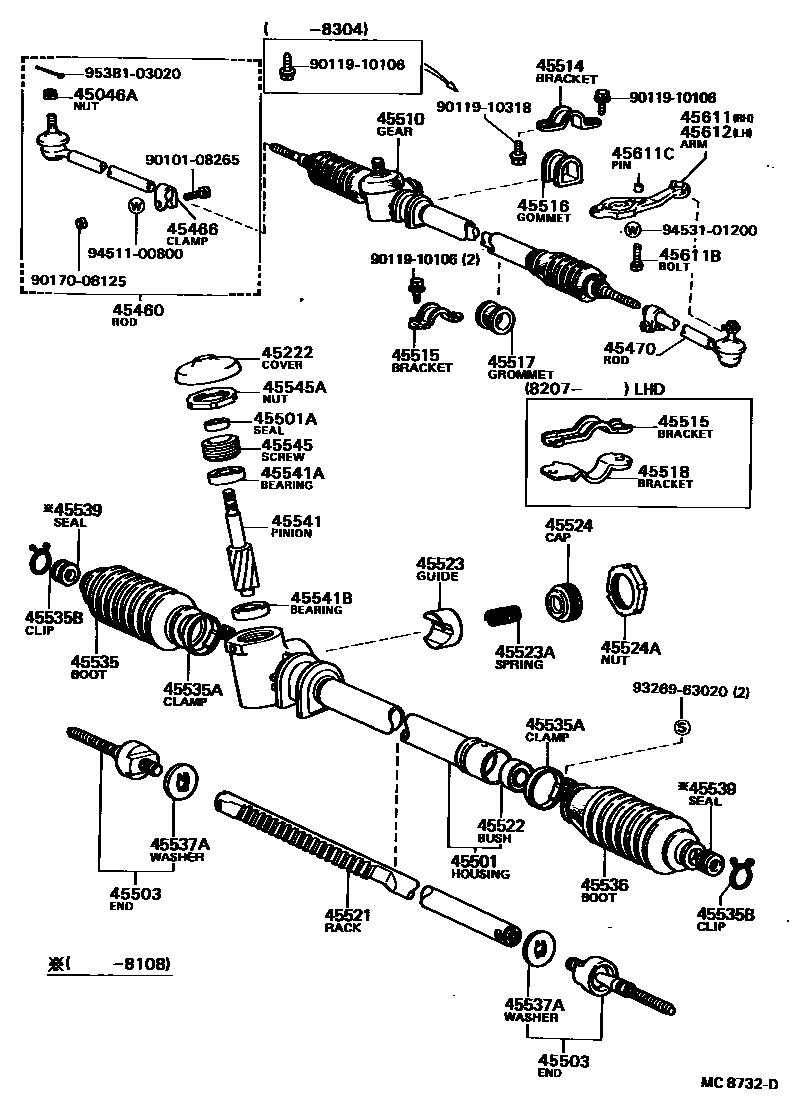

FRONT STEERING GEAR & LINK

0001 1 0003 1 0004 1RHD..SR..GEN; (8210- )CE700010 1 0014 1 0015 1

45046END SUB-ASSY, TIE ROD, RH

main45046-19135iCE70,TE71..DV,WG;KE70..(DV,WG)..(GEN,SAA)¥2,390197908-198707

sub45046-29075¥3,200

main45046-29075iCE70,TE7#..CP,LB,SED¥3,200197908-198502

sub45046-29076¥3,200

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAE71,CE70,KE70,TE7#¥130197908-198707

45222COVER, STEERING GEAR DUST

main45222-10030iAE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)¥590197908-198707

45460ROD ASSY, TIE, RH

main45460-19095iCE70,TE7#..CP,LB,SED¥9,500197908-198502

sub45460-19135¥9,500

main45460-19125iAE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)¥5,200197908-198707

main45460-19135iCE70,TE71..DV,WG¥9,500197908-198707

45466CLAMP, TIE ROD END

main45466-22010iAE71,CE70,KE70,TE7#¥300197908-198707

45470ROD ASSY, TIE, LH

main45460-19095iCE70,TE7#..CP,LB,SED¥9,500197908-198502

sub45460-19135¥9,500

main45460-19125iKE70..WG..5F..GEN¥5,200197908-198707

main45460-19135iKE70,TE71..(DV,WG)..(GEN,SA,SAA)¥9,500197908-198707

45501HOUSING SUB-ASSY, STEERING RACK

main45501-12041iKE70..LHD..EUR¥13,500198311-198707

main45501-12061iKE70..RHD..5F¥13,500198311-198707

main45501-12070iAE71;KE70..(CP,LB,SED)..RHD;KE70..(DV,WG)..RHD..(ARL,EUR)¥13,400197908-198311

sub45501-12061¥13,500

main45501-12080iKE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA)197908-198311

45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)

main90311-15001iKE70..WG..5F..GEN¥190197908-198707

sub90311-15002¥190

45503END SUB-ASSY, STEERING RACK

main45503-19015iAE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)¥5,300197908-198707

45510GEAR ASSY, STEERING

main45510-12010iKE70..WG..RHD..EUG;KE70..(CP,LB,SED)..RHD¥45,900197908-198108

sub45510-12011¥46,200

main45510-12011iAE71,KE70..ARL,SA¥46,200198108-198707

main45510-12020iKE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..GEN¥45,900197908-198108

sub45510-12021¥46,200

main45510-12021iKE70..SED..SAA¥46,200198108-198308

main45510-12030iAE71..GEN¥46,300198305-198707

main45510-12100iKE70..WG..5F..GEN¥46,300198305-198707

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-12010iKE70..(SED,WG)..(ARL,SA)197908-198305

main45514-12020iKE70..(CP,LB,SED)..GEN¥640198108-198707

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-12010iKE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)197908-198305

sub45515-12080¥590

main45515-12030iKE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA)¥620198207-198707

main45515-12080iAE71..SA¥590198305-198707

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-12020iKE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)¥650197908-198309

main45516-12040iAE71;KE70..ARL,EUR;KE70..SED..(GEN,SA,SAA)¥680198305-198707

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-12020iKE70..SAA¥650197908-198309

main45517-12080iAE71;KE70..ARL,EUR;KE70..SED..(GEN,SA,SAA)¥680198305-198707

45518BRACKET, STEERING RACK HOUSING, NO.3

main45518-12010iAE71..GEN¥740198207-198707

45521RACK, STEERING

main45521-12030iKE70..(CP,LB,SED)..RHD;KE70..(DV,WG)..RHD..(ARL,EUR)¥7,400197908-198707

main45521-12040iKE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA)¥6,600197908-198308

main45521-12060iAE71..GEN¥7,400198305-198707

main45521-12140iAE71..STD¥10,100198305-198707

45522BUSH, STEERING RACK

main45522-10021iKE70..WG..5F..GEN¥2,150198311-198707

main45522-10030iAE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)¥2,250197908-198311

sub45522-10031¥2,140

45523GUIDE, RACK(FOR STEERING GEAR)

main45523-10010iAE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)¥530197908-198707

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90501-23007iAE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)¥170197908-198707

45524CAP, STEERING RACK GUIDE SPRING

main45524-16010iAE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)¥630197908-198707

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main90179-36001iAE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)¥580197908-198707

45535BOOT, STEERING RACK, NO.1

main45535-12010iKE70..CP,LB,SED;KE70..(DV,WG)..EUR¥1,820197908-198108

main45535-12011iAE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)¥1,820198108-198707

45535ACLAMP(FOR STEERING RACK BOOT)

main90461-10273iAE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)¥310197908-198707

45535BCLIP(FOR STEERING RACK BOOT)

main90467-18003iAE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)¥120198108-198707

main90467-28002iKE70..CP,LB,SED;KE70..(DV,WG)..EUR¥220197908-198108

45536BOOT, STEERING RACK, NO.2

main45536-12010iKE70..CP,LB,SED;KE70..(DV,WG)..EUR¥2,030197908-198108

main45536-12011iAE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)¥2,300198108-198707

45537AWASHER, CLAW(FOR STEERING RACK END LOCK)

main90214-14002iAE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)¥550197908-198707

45539GUIDE, REAR STEERING CONTROL CABLE, NO.1

main45539-10010iKE70..CP,LB,SED;KE70..(DV,WG)..EUR¥300197908-198108

45541PINION, STEERING

main45541-12010iKE70..WG..RHD..EUG;KE70..(CP,LB,SED)..RHD¥6,800197908-198001

sub45541-12900¥7,300

main45541-12011iAE71..SA¥3,950198001-198707

main45541-12020iKE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..GEN¥6,800197908-198001

sub45541-12901¥7,300

main45541-12021iAE71..GEN¥3,950198001-198707

45541ABEARING, RADIAL BALL(FOR STEERING PINION UPPER)

main90363-15003iAE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)¥2,140197908-198707

45541BBEARING, RADIAL BALL(FOR STEERING PINION LOWER)

main90363-13001iKE70..WG..5F..GEN¥1,530198001-198707

ID=13

main90363-15002iKE70..CP,LB,SED;KE70..(DV,WG)..EUR197908-198001

ID=15

45545SCREW, PINION BEARING ADJUSTING

main45545-10010iAE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)¥980197908-198707

45545ANUT(FOR PINION BEARING ADJUSTING SCREW)

main90179-38001iAE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)¥580197908-198707

45611ARM, STEERING KNUCKLE, RH

main45611-12060iKE70..(DV,WG)..EUR;KE70..(CP,LB,SED)..(EUR,GEN)¥4,870197908-198108

main45611-12070iKE70..(DV,WG)..GEN197908-198108

main45611-12080iCE70,TE7#¥4,870197908-198707

main45611-12130iKE70..(DV,WG)..(GEN,SAA)198108-198308

main45611-12910iKE70..ARL,EUR¥4,870198108-198410

main45611-12913iKE70..EUR¥5,900198305-198707

45611BBOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)

main90101-12295iAE71,CE70,KE70,TE7#¥320197908-198707

45611CPIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)

main90253-15016iAE71,CE70,KE70,TE7#¥190197908-198707

45612ARM, STEERING KNUCKLE, LH

main45612-12060iKE70..(DV,WG)..EUR;KE70..(CP,LB,SED)..(EUR,GEN)¥4,870197908-198108

main45612-12070iKE70..(DV,WG)..GEN¥4,870197908-198108

main45612-12080iCE70,TE7#¥4,870197908-198707

main45612-12130iKE70..(DV,WG)..(GEN,SAA)198108-198308

main45612-12910iKE70..SED..SAA¥4,870198108-198410

main45612-12913iAE71..STD¥5,400198305-198707

9010108265

main90101-08265¥440

9011910106

main90119-10106¥230

9011910318

main90119-10318¥210

9017008125

main90170-08125¥320

9326963020

main93269-63020¥110

9451100800

main94511-00800¥100

9453101200

main94531-01200¥80

9538103020

main95381-03020¥90

44 parts on this diagram · 6 diagrams in section
