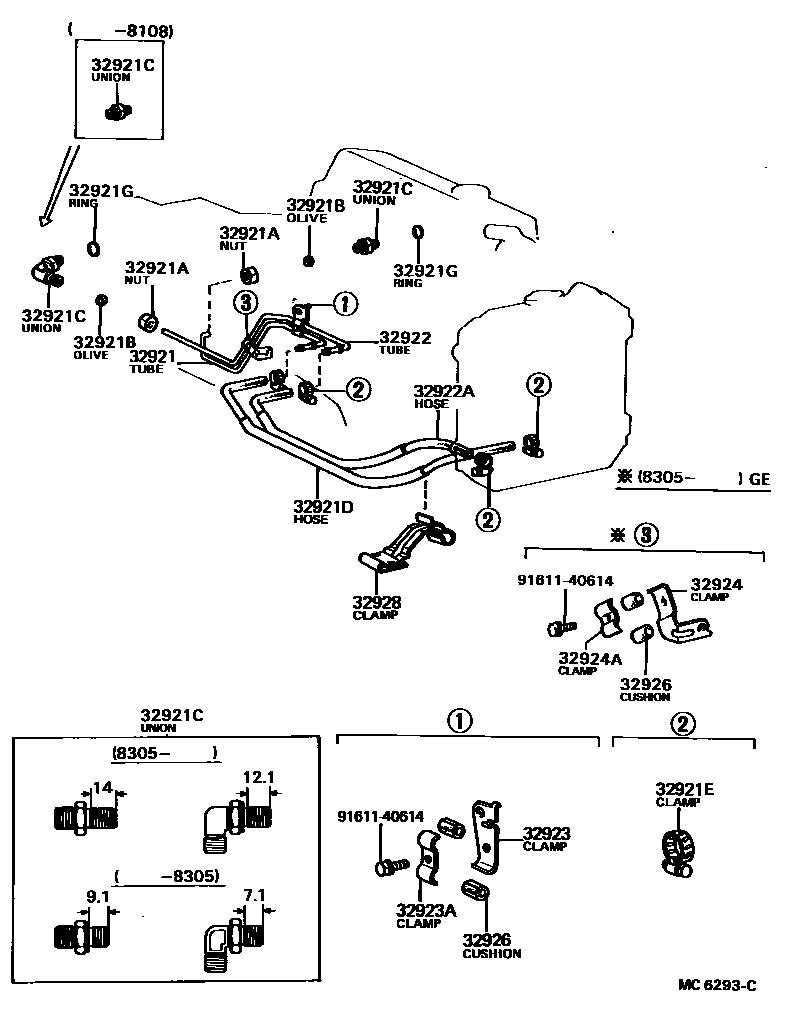

OIL COOLER & TUBE (ATM)

0001 1 0002 1 0003 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-12060iTE7#..3FC197908-198401

main32921-12100iKE70..2FC..GEN197908-198108

main32921-12110iKE70..2FC..EUG197908-198108

main32921-12131iKE70..3FC..GEN198108-198305

main32921-12141iKE70..3FC..EUG198108-198305

main32921-12150iTE72..4FC198204-198401

main32921-12170iAE71..3FC198305-198707

main32921-12230iKE70..3FC..GEN198305-198406

32921ANUT, UNION(FOR OIL COOLER TUBE)

main90402-13041iKE70,TE7#..ATM..(EUR,GEN,SA)197908-198707

32921BOLIVE(FOR OIL COOLER TUBE)

main96395-71400iKE70,TE7#..ATM..(EUR,GEN,SA)197908-198707

32921CUNION(FOR OIL COOLER TUBE)

main90404-13003iKE70..3FC..GEN198106-198707

INLET

main90404-13105iKE70..2FC197908-198108

main90404-13265iKE70..3FC..(EUR,GEN)197908-198305

INLET

main90407-13002iKE70..3FC..(EUR,GEN)198108-198305

OUTLET

main90407-13005iAE71,TE7#..ATM198106-198707

OUTLET

main90407-13060iTE7#..3FC197908-198106

OUTLET

sub90407-13002

32921DHOSE(FOR OIL COOLER INLET)

main32941-12030iKE70..2FC..EUG197908-198003

sub32941-12031

main32941-12031iKE70..ATM..EUG198003-198305

main32941-12041iTE7#..ATM197908-198401

main32941-12050iKE70..ATM..GEN197908-198305

main32941-12070iAE71..3FC198305-198707

main32941-14030iKE70..3FC..GEN198305-198406

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085iKE70,TE7#..ATM..(EUR,GEN,SA)197908-198707

sub90460-20004

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iKE70,TE7#..ATM..(EUR,GEN,SA)197908-198707

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-12050iTE7#..3FC197908-198011

main32922-12051iTE7#..3FC198011-198401

main32922-12090iKE70..2FC..GEN197908-198108

main32922-12100iKE70..2FC..EUG197908-198108

main32922-12120iKE70..3FC..GEN198108-198406

main32922-12130iKE70..3FC..EUG198108-198305

main32922-12140iTE72..4FC198204-198401

main32922-12160iAE71..3FC198305-198707

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-12021iTE7#..ATM197908-198305

main32942-12040iKE70..ATM..EUG197908-198305

main32942-12060iKE70..ATM..GEN197908-198406

main32942-12070iTE7#..ATM198305-198401

main32942-12071iAE71..3FC198305-198707

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-10020iKE70..ATM197908-198410

main32923-12050iAE71..3FC198305-198707

main90461-08039iTE7#..ATM197908-198401

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90462-12085iAE71,KE70..ATM197908-198707

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-13010iKE70..3FC..GEN198305-198406

main32924-14010iTE7#..ATM197908-198401

main32928-12020iAE71..3FC198305-198707

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main90461-08070iAE71..3FC198305-198707

main90462-12085iKE70..3FC..GEN197908-198406

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011iAE71,KE70,TE7#..ATM197908-198707

L=25,ID=8

32928CLAMP, FLEXIBLE HOSE, NO.1

main90463-06600iKE70,TE7#..ATM197908-198410

main90949-01048iKE70,TE7#..ATM..(GEN,SA)198305-198707

9161140614

main91611-40614

16 parts on this diagram · 3 diagrams in section
