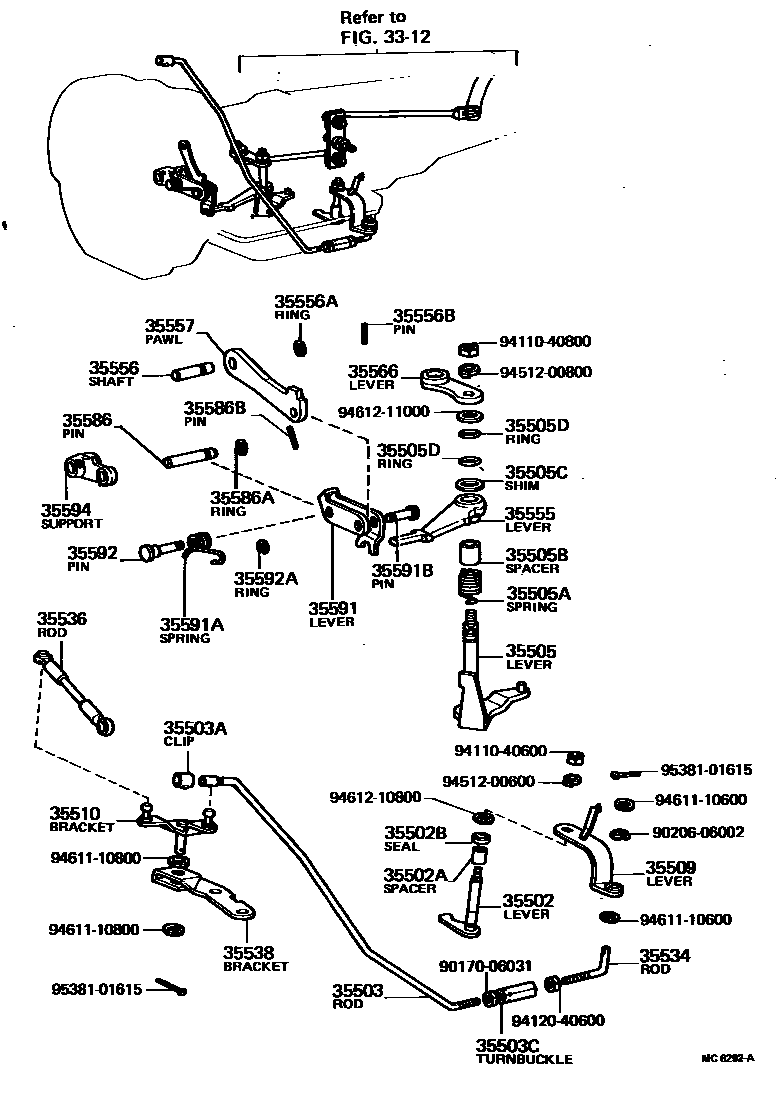

THROTTLE LINK & VALVE LEVER (ATM)
3312
35502LEVER SUB-ASSY, THROTTLE VALVE
35502ASPACER (FOR THROTTLE VALVE LEVER)
35502BSEAL, TYPE K OIL (FOR THROTTLE VALVE LEVER)
35503ROD SUB-ASSY, THROTTLE LINK CONNECTING, 1ST
35503ACLIP(FOR THROTTLE LINK CONNECTING ROD)
35503CTURNBUCKLE(FOR THROTTLE LINK CONNECTING ROD)
35505ASPRING, TORSION (FOR MANUAL VALVE LEVER)
35505BSPACER (FOR MANUAL VALVE LEVER)
35505CSHIM (FOR MANUAL VALVE LEVER)
35505DRING, O (FOR MANUAL VALVE LEVER)
35509LEVER SUB-ASSY, THROTTLE VALVE, OUTER
35510BRACKET ASSY, THROTTLE LINK BELLCRANK, NO.2
35534ROD, THROTTLE LINK CONNECTING, 1ST
35536ROD, THROTTLE LINK CONNECTING, 3RD
35538BRACKET, THROTTLE LINK BELLCRANK, NO.1
35555LEVER, TOGGLE OPERATING
35556ARING, O (FOR PARRING LOCK PAWL SHAFT)
35556BPIN, SLOTTED SPRING (FOR PARKING LOCK PAWL SHAFT)
35557PAWL, PARKING LOCK
35566LEVER, MANUAL VALVE CONTROL, OUTER
35586PIN, TOGGLE LEVER SUPPORT
35586ARING, O (FOR TOGGLE LEVER SUPPORT PIN)
35586BPIN, THROTTED SPRING (FOR TOGGLE LEVER SUPPORT PIN)
35591LEVER, TOGGLE
35591ASPRING, TORSION (FOR TOGGLE LEVER)
35591BPIN (FOR TOGGLE LEVER)
35592PIN, TOGGLE LEVER
35592ARING, E (FOR TOGGLE LEVER PIN STOPPER)
35594SUPPORT, TOGGLE LEVER
9017006031
main90170-06031
9020606002
main90206-06002
9411040600
main94110-40600
9411040800
main94110-40800
9412040600
main94120-40600
9451200600
main94512-00600
9451200800
main94512-00800
9461110600
main94611-10600
9461110800
main94611-10800
9461210800
main94612-10800
9461211000
main94612-11000
9538101615
main95381-01615
44 parts on this diagram · 4 diagrams in section
