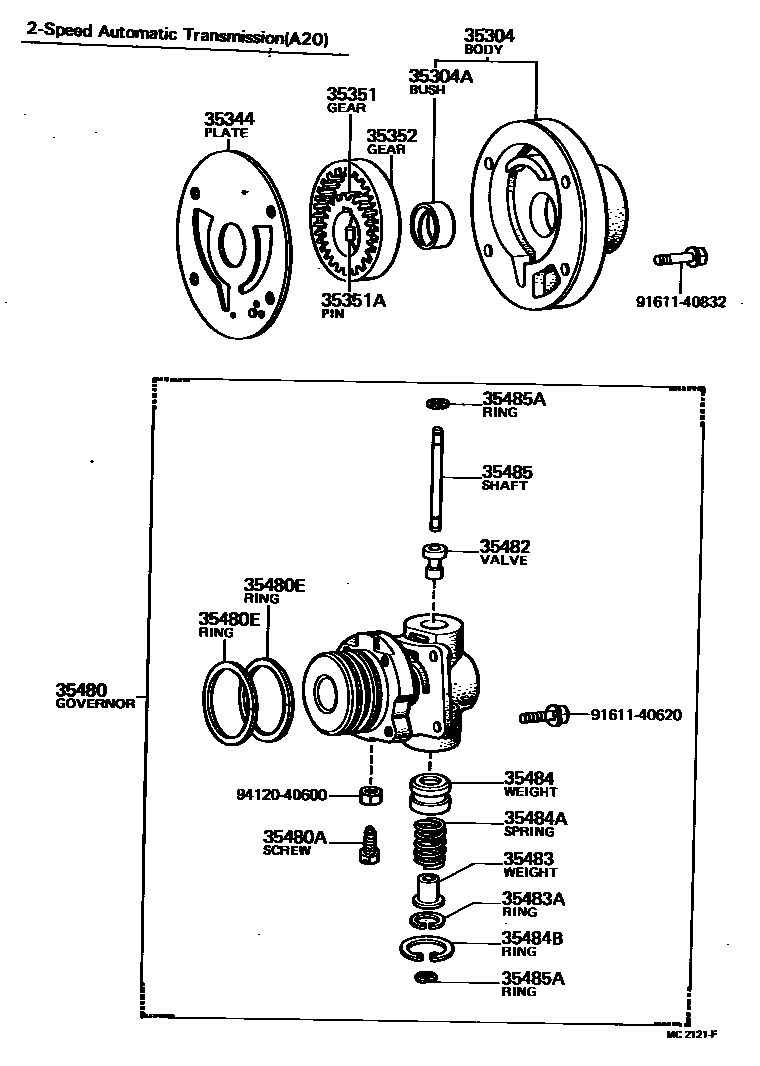

REAR OIL PUMP & GOVERNOR (ATM)

0001 1 0002 1

35304BODY SUB-ASSY, REAR OIL PUMP

main35304-12010iKE70..2FC¥7,700197908-198108

35304ABUSH, BIMETAL FORMED (FOR REAR OIL PUMP BODY)

main90999-72019iKE70..2FC¥750197908-198108

35344PLATE, REAR OIL PUMP

main35305-12011iKE70..2FC¥840197908-198108

35351GEAR, REAR OIL PUMP DRIVE

main35351-12010iKE70..2FC¥2,380197908-198108

35351APIN, STRAIGHT (FOR REAR OIL PUMP DRIVE GEAR)

main90250-06133iKE70..2FC¥180197908-198108

35352GEAR, REAR OIL PUMP DRIVEN

main35352-31010iKE70..2FC¥3,340197908-198108

35480GOVERNOR

main35480-19015iKE70..2FC¥17,000197908-198108

main35480-20010iKE70..3FC..(EUR,GEN)198108-198201

main35480-22020iTE7#..3FC¥12,600197908-198201

sub35480-30040¥12,600

main35480-26010iKE70..3FC..(EUR,GEN)¥11,500198201-198707

main35480-30060iTE72..4FC¥11,500198201-198401

35480ASCREW (FOR GOVERNOR BODY SET BOLT)

main90143-60017iKE70..2FC197908-198108

35480ERING (FOR REAR OIL PUMP GOVERNOR)

main35617-12010iKE70..2FC¥1,220197908-198108

35482VALVE, GOVERNOR

main35482-22010iKE70,TE7#..ATM..(EUR,GEN,SA)¥1,950197908-198401

main35482-30030iAE71..3FC¥2,190198305-198707

main35482-31010iKE70..2FC197908-198108

35483WEIGHT, GOVERNOR, INNER

main35483-31010iKE70..2FC197908-198108

35483ARING, HOLE SNAP (FOR GOVERNOR INNER WEIGHT)

main96151-01900iKE70..2FC¥200197908-198108

35484WEIGHT, GOVERNOR, OUTER

main35484-12010iKE70..2FC197908-198108

main35484-22010iTE7#..3FC¥750197908-198707

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09015iKE70..3FC..(EUR,GEN)¥190198108-198305

main90501-09673iKE70,TE7#..ATM..(GEN,SA)¥200197908-198707

main90501-12200iKE70..2FC¥180197908-198108

35484BRING, HOLE SNAP (FOR GOVERNOR OUTER WEIGHT)

main96151-02500iKE70..2FC¥100197908-198108

35485SHAFT, GOVERNOR VALVE

main35485-12010iKE70..2FC¥920197908-198108

main35485-22010iTE7#..3FC¥1,220197908-198707

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-03007iKE70..2FC¥160197908-198108

main90523-05020iTE7#..3FC¥190197908-198707

9161140620

main91611-40620¥160

9161140832

main91611-40832¥180

9412040600

main94120-40600¥170

20 parts on this diagram · 2 diagrams in section
