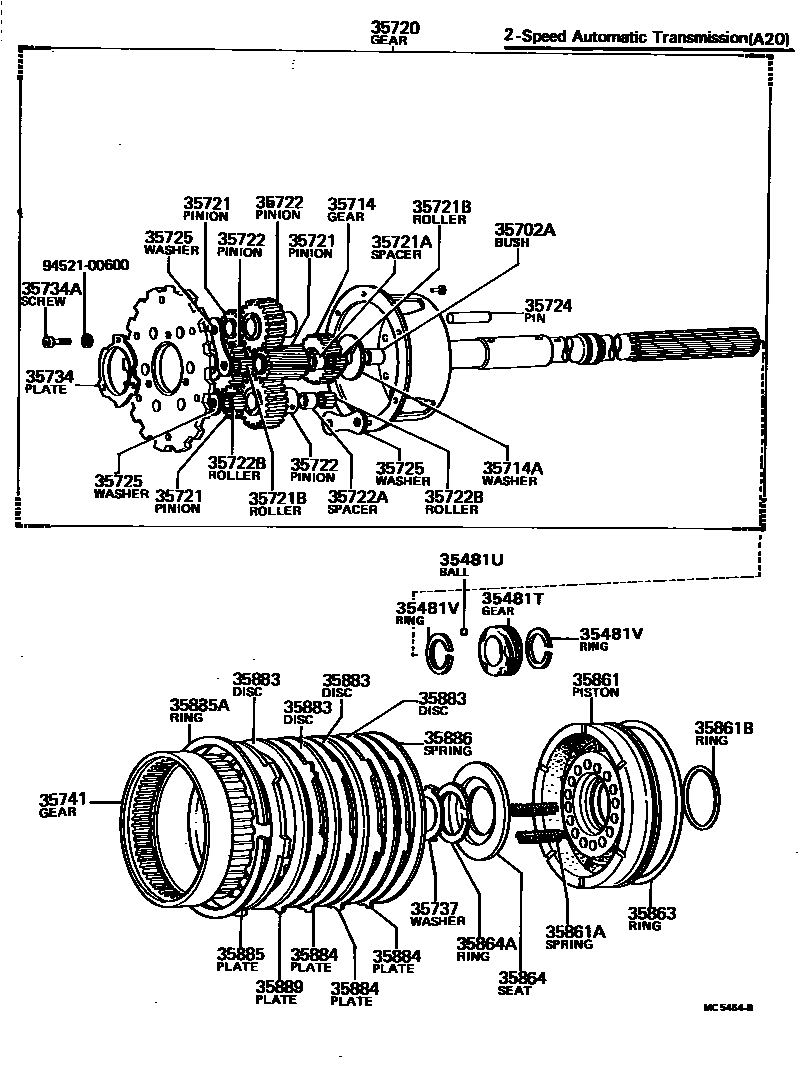

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35481TGEAR, SPEEDMETER DRIVE (ATM)
N=6
N=6,SMG R=21:6
N=6,175/70HR13 TIRE
N=6,MARK 6X21-23,N=6
N=6,MARK 6X18-20,N=6
N=6,MARK 6X18-20,N=6,SMG R=20:6
35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
T=1.50,OD=33.8
35702CARRIER SUB-ASSY, PLANETARY W/LOCK GEAR
sub35704-22030
35702ABUSH, BIMETAL FORMED (FOR PLANETARY OUTPUT SHAFT)
35714GEAR, INPUT SUN
35714AWASHER (FOR INPUT SUN GEAR THRUST)
35721PINION, PLANETARY LONG
35721ASPACER (FOR PLANETARY LONG PINION)
35721BROLLER (FOR PLANETARY LONG PINION)
sub90361-02006
35722PINION, PLANETARY SHORT
35722ASPACER (FOR PLANETARY SHORT PINION)
35722BROLLER (FOR PLANETARY SHORT PINION)
sub90361-02006
35724PIN, PLANETARY SHORT PINION
35725WASHER, PLANETARY PINION THRUST, NO.1
35734PLATE, PLANETARY PINION PIN LOCK
35734ASCREW (FOR PLANETARY PINION PIN LOCK PLATE)
35737WASHER, PLANETARY CARRIER THRUST
35741GEAR, REVERSE RING
35861PISTON, REVERSE
35861ASPRING, COMPRESSION (FOR REVERSE PISTON BACK)
35861BRING, O (FOR REVERSE PISTON INNER SEAL)
35863RING, REVERSE PISTON OIL SEAL, OUTER
35864SEAT, REVERSE PISTON RETURN SPRING
35864ARING, SHAFT SNAP (FOR OUTPUT)
35883DISC, REVERSE CLUTCH
sub35883-12012
35884PLATE, REVERSE CLUTCH, NO.2
35885PLATE, REVERSE CLUTCH PRESSURE
35885ARING, HOLE SNAP (FOR CLUTCH PLATE)
35886SPRING, REVERSE CLUTCH CUSHION
35889PLATE, REVERSE CLUTCH, NO.2
9452100600
main94521-00600
33 parts on this diagram · 2 diagrams in section
