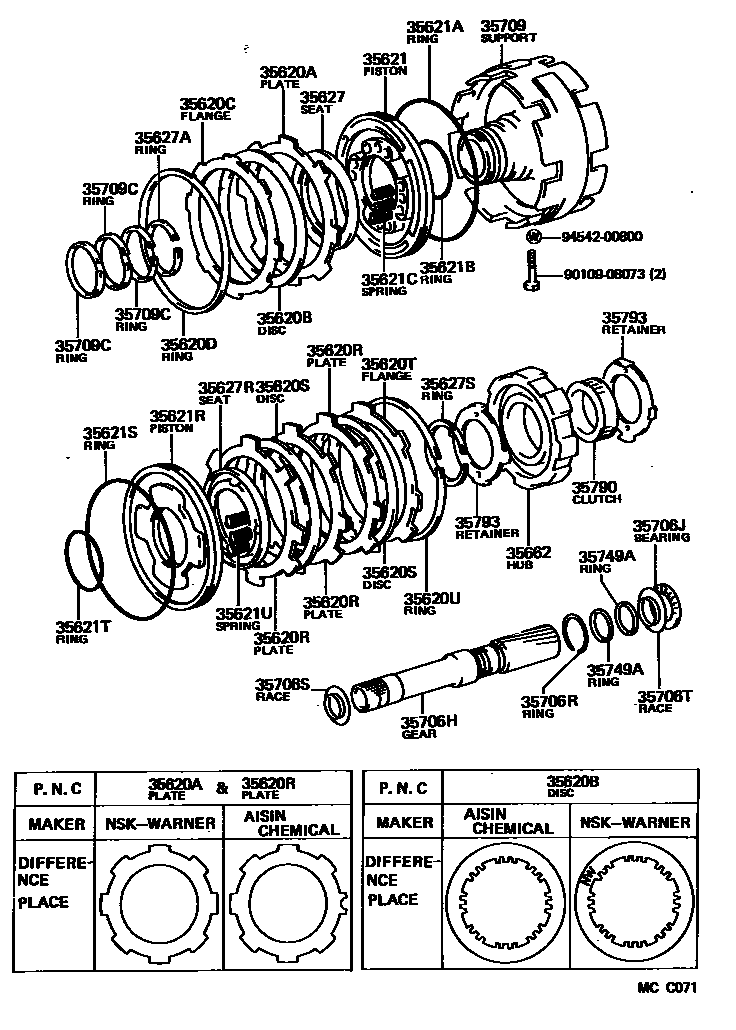

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1 0003 1

35620APLATE, CLUTCH (FOR BRAKE)

main35634-22060iTE7#..3FC197908-198108

NSK-WARNER

main35634-22060iKE70,TE7#..ATM..(EUR,GEN,SA)198108-198307

T=1.8,NSK-WARNER

main35634-22060iAE71..GEN198508-198707

main35634-22090iKE70,TE7#..3FC..(EUR,GEN,SA)197908-198410

AISIN CHEMICAL

sub35634-22060

main35648-30010iTE72..4FC198204-198401

T=2.0,NSK-WARNER

35620BDISC, CLUTCH (FOR BRAKE)

main35677-22020iAE71..3FC197908-198307

NSK-WARNER

sub35677-30030

main35677-22030iTE7#..3FC197908-198307

AISIN CHEMICAL

sub35677-22020

main35677-22050iKE70,TE71..3FC..(GEN,SA)198307-198410

sub35677-30030

main35677-30030iAE71..GEN198307-198601

sub35677-30160

main35677-30100iAE71..GEN198601-198707

35620CFLANGE, CLUTCH (FOR BRAKE)

main35675-22010iTE7#..3FC197908-198707

sub35675-22140

35620DRING (FOR BRAKE)

main90521-99139iKE70,TE7#..ATM..(EUR,GEN,SA)197908-198707

35620RPLATE, CLUTCH (FOR REAR BRAKE)

main35634-22060iTE7#..3FC197908-198707

NSK-WARNER

main35634-22090iTE7#..3FC197908-198307

AISIN CHEMICAL

sub35634-22060

35620SDISC, CLUTCH (FOR REAR BRAKE)

main35677-22040iTE7#..3FC197908-198307

sub35677-30020

main35677-30020iAE71..3FC198307-198707

35620TFLANGE, CLUTCH (FOR REAR BRAKE)

main35675-22010iTE7#..3FC197908-198707

sub35675-22140

35620URING (FOR REAR BRAKE)

main90521-99139iKE70,TE7#..3FC..(EUR,GEN,SA)197908-198707

35621PISTON, BRAKE, NO.1

main35621-22010iTE7#..3FC197908-198101

sub35624-22010

main35621-30010iTE72..4FC198204-198401

main35624-22010iTE7#..3FC198101-198707

35621ARING, O (FOR BRAKE PISTON OUTER)

main90301-99007iTE72..4FC198204-198401

sub90301-99107

main90301-99192iKE70,TE7#..3FC..(EUR,GEN,SA)197908-198707

35621BRING, O (FOR BRAKE PISTON INNER)

main90301-57188iTE7#..3FC197908-198707

35621CSPRING (FOR BRAKE PISTON RETURN)

main90501-10671iKE70,TE7#..ATM..(EUR,GEN,SA)197908-198707

35621RPISTON, BRAKE (FOR REAR BRAKE)

main35621-22010iTE7#..3FC197908-198101

sub35624-22010

main35621-30010iKE70,TE71..3FC..(EUR,GEN)198108-198707

main35624-22010iTE7#..3FC198101-198204

35621SRING (FOR REAR BRAKE PISTON OUTER)

main90301-99007iKE70,TE71..3FC..(EUR,GEN)198108-198707

sub90301-99107

main90301-99192iTE7#..3FC197908-198204

35621TRING (FOR REAR BRAKE PISTON INNER)

main90301-57188iTE7#..3FC197908-198707

35621USPRING (FOR REAR BRAKE PISTON RETURN)

main90501-10671iAE71..3FC197908-198707

35627SEAT, BRAKE RETURN SPRING

main35627-22010iTE7#..3FC197908-198707

35627ARING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)

main90520-52262iTE7#..3FC197908-198707

35627RSEAT, BRAKE RETURN SPPING (FOR REAR BRAKE)

main35627-22010iTE7#..3FC197908-198707

35627SRING, SHAFT SNAP (FOR REAR BRAKE RETURN SPRING SEAT)

main90520-52262iTE7#..3FC197908-198707

35662HUB, BRAKE

main35662-22011iTE7#..3FC197908-198410

sub35662-30010

main35662-30010iAE71..GEN198508-198707

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-22010iTE7#..3FC197908-198101

sub35706-22011

main35706-22011iTE7#..3FC198101-198707

main35706-30030iTE72..4FC198204-198401

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-23012iAE71..3FC197908-198707

35706RRING, SHAFT SNAP (FOR PLANETARY SUN GEAR)

main90520-34001iTE72..4FC198204-198401

main90520-34260iTE7#..3FC197908-198707

35706SRACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)

main35789-22030iKE70,TE7#..ATM..(EUR,GEN,SA)197908-198707

35706TRACE, THRUST BEARING (FOR PLANETARY SUN GEAR REAR)

main35789-22010iTE7#..3FC197908-198707

35709SUPPORT SUB-ASSY, CENTER

main35709-12011iAE71..3FC198108-198707

main35709-22011iTE7#..3FC197908-198204

sub35709-12010

sub35621-30010

sub90301-99007

sub90501-23738

main35709-30021iTE72..4FC198204-198401

35709CRING, OIL SEAL (FOR CENTER SUPPORT)

main35617-16010iKE70,TE71..3FC..(EUR,GEN)198108-198707

main35617-22020iTE7#..3FC..SA197908-198204

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-22010iAE71..3FC197908-198707

35790CLUTCH ASSY, 1 WAY

main35791-30020iTE7#..3FC197908-198707

35793RETAINER, 1 WAY CLUTCH

main35793-22011iTE7#..3FC197908-198707

9010908073

main90109-08073

9454200800

main94542-00800

33 parts on this diagram · 2 diagrams in section
