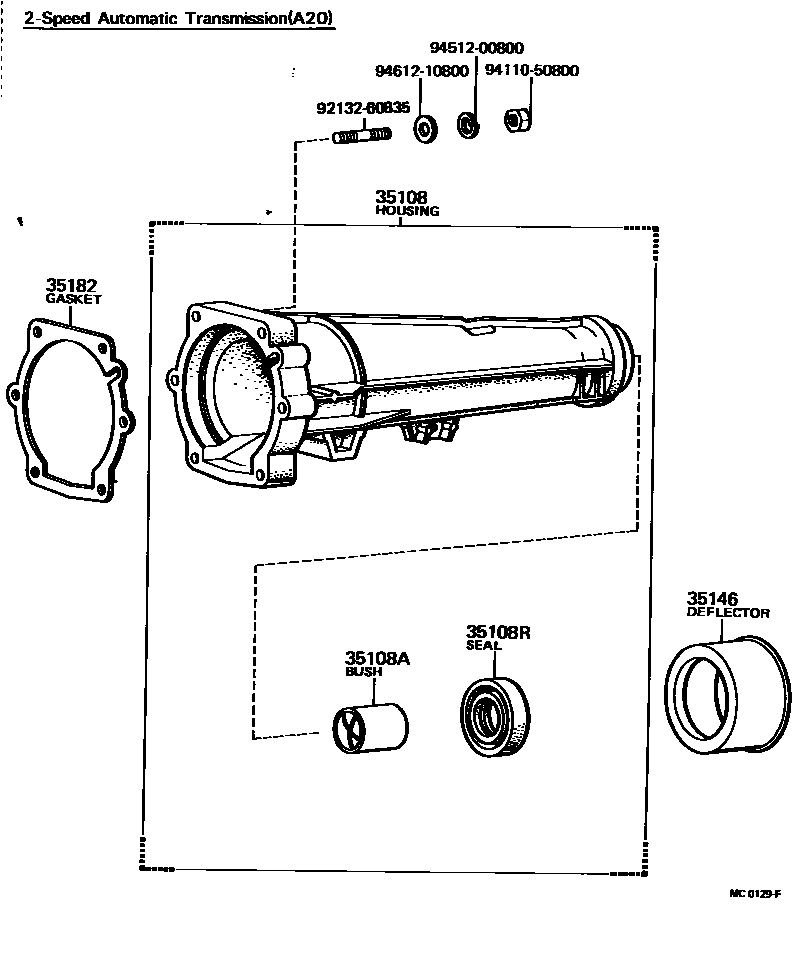

EXTENSION HOUSING (ATM)

0001 1 0002 1

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-12901iKE70..2FC197908-198108

sub35181-12901¥14,800

main35108-22032iTE7#..3FC¥28,200197908-198201

sub35108-22033¥28,100

main35108-22033iKE70,TE7#..ATM..(EUR,GEN,SA)¥28,100198201-198707

sub35108-22034¥28,300

35108ABUSH, BIMETAL FORMED (FOR ATM EXTENSION HOUSING)

main90999-72020iKE70..2FC¥1,760197908-198108

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-32074iKE70..2FC¥370197908-198108

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-12010iKE70..2FC¥1,560197908-198108

main33146-30010iTE7#..3FC¥1,680197908-198707

sub33146-30020¥990

35182GASKET, EXTENSION HOUSING (ATM)

main35182-12011iKE70..2FC¥390197908-198108

main35182-22010iTE7#..3FC¥780197908-198707

sub35182-28010¥520

9213260835

main92132-60835¥190

9411050800

main94110-50800¥80

9451200800

main94512-00800¥80

9461210800

main94612-10800¥80

9 parts on this diagram · 2 diagrams in section
