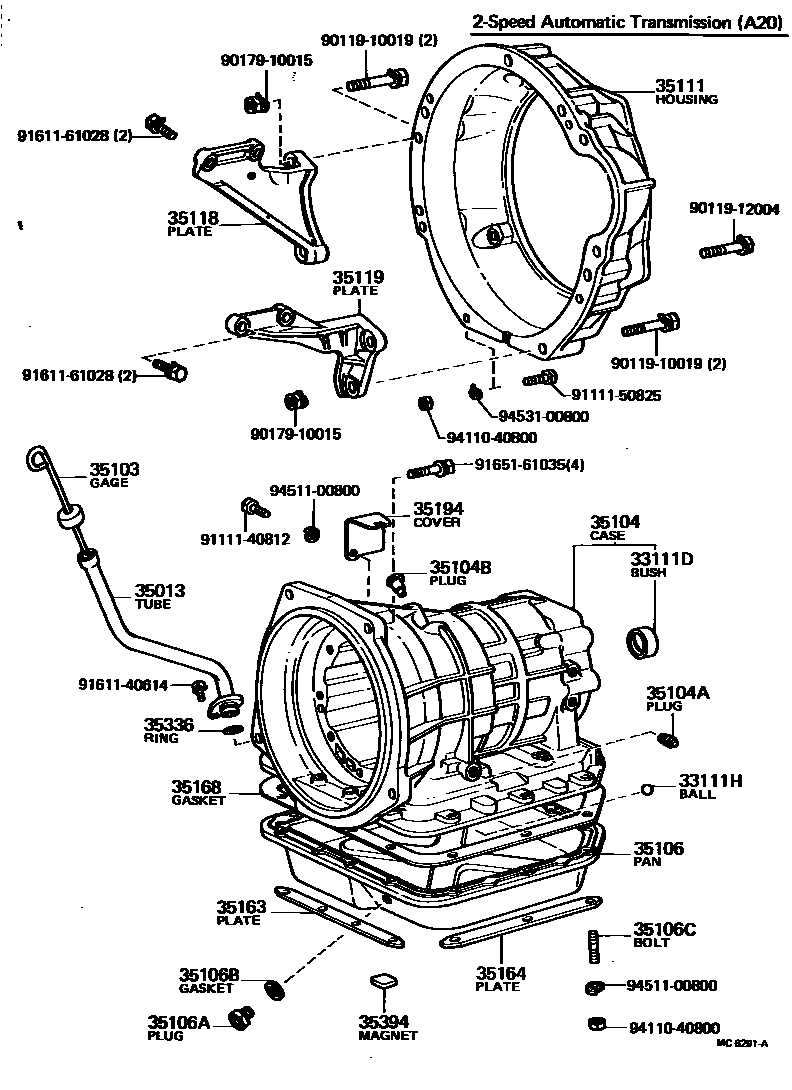

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1 0003 1 0004 1

33111DBUSH, BIMETAL FORMED(FOR TRANSMISSION CASE)

main90999-73039iKE70..2FC¥750197908-198108

33111HBALL(FOR THROTTLE RELAY VALVE)

main90360-06004iKE70..2FC¥90197908-198108

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-12050iKE70..2FC197908-198108

main35013-12080iTE72..4FC197908-198305

main35013-12100iTE7#..RHD..3FC197908-198401

main35013-12110iKE70..3FC..(EUR,GEN)¥1,700198108-198406

main35013-12120iAE71..3FC¥1,700198305-198707

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-12012iKE70..2FC¥1,180197908-198108

main35103-14050iTE72..4FC¥1,320198204-198307

main35103-14051iTE72..4FC198307-198401

main35103-20040iTE7#..3FC¥1,190197908-198307

main35103-20041iTE71..3FC198307-198401

main35103-20071iKE70..3FC..(EUR,GEN)¥1,180198108-198307

main35103-20072iKE70..3FC..GEN¥1,180198307-198406

main35103-22030iAE71..3FC¥1,190198305-198307

main35103-22031iAE71..3FC¥1,180198307-198707

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-12020iKE70..3FC..(EUR,GEN)¥72,200198108-198406

sub35104-12140

main35104-12030iTE72..4FC¥71,900198204-198401

sub35104-12120

main35104-20020iKE70..2FC197908-198108

main35104-22023iTE7#..3FC¥72,500197908-198008

sub35104-22024¥72,700

main35104-22024iTE7#..3FC¥72,700198008-198106

sub35104-22025¥84,100

main35104-22025iAE71,TE7#..3FC¥84,100198106-198707

sub35104-22050

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iTE7#..3FC¥120198106-198707

main90341-08079iTE7#..3FC197908-198106

main90345-51025iKE70..2FC¥210197908-198108

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03001iKE70..2FC¥310197908-198108

main90930-03061iTE7#..3FC..SA¥530197908-198204

sub90930-03069¥540

main90930-03069iKE70,TE71..3FC..(EUR,GEN)¥540198108-198608

main90930-03108iAE71..GEN¥1,650198608-198707

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-14020iAE71..3FC¥5,700198305-198707

sub35106-14021¥5,200

main35106-22010iKE70..2FC197908-198108

main35106-22020iTE7#..3FC¥5,000197908-198406

sub35106-22021¥4,950

main35106-22031iTE72..4FC¥7,100198204-198401

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10003iTE7#..3FC¥260197908-198307

sub90341-10011¥100

main90341-10006iKE70,TE7#..ATM..(GEN,SA)¥210198307-198707

sub90341-10011¥100

main90341-18057iKE70..2FC¥350197908-198108

35106BGASKET, DRAIN PLUG (ATM)

main12157-10010iKE70..2FC¥100197908-198108

main35178-30010iTE7#..3FC¥190197908-198707

35106CBOLT, STUD (FOR AUTOMATIC TRANSMISSION OIL PAN SETTING)

main90116-08037iKE70..2FC¥200197908-198108

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-12020iTE7#..3FC¥36,700197908-198008

sub35111-14050

main35111-12040iKE70..2FC¥19,200197908-198108

main35111-12070iTE72..4FC198204-198401

main35111-12080iKE70..3FC..(EUR,GEN)¥33,400198108-198406

main35111-12090iAE71..3FC¥33,500198305-198707

main35111-14050iTE7#..3FC198008-198401

35118PLATE, STIFENER, RH (ATM)

main33118-12020iTE7#..ATM¥2,390197908-198401

main33118-12080iKE70..ATM¥2,380197908-198406

main33118-12090iAE71..3FC¥2,480198305-198410

sub33118-12110¥2,510

main33118-12110iAE71..GEN¥2,510198508-198707

35119PLATE, STIFENER, LH (ATM)

main33119-12011iTE7#..ATM¥2,390197908-198401

main33119-12050iKE70..ATM¥2,430197908-198406

main33119-12100iAE71..3FC¥2,170198305-198707

35163PLATE, TRANSMISSION OIL PAN FLANGE, NO.1

main35163-12010iKE70..2FC197908-198108

35164PLATE, TRANSMISSION OIL PAN FLANGE, NO.2

main35164-12010iKE70..2FC197908-198108

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-12011iKE70..2FC¥660197908-198108

main35168-22010iTE7#..3FC¥680197908-198008

sub35168-22011¥520

main35168-22011iKE70,TE7#..ATM..(EUR,GEN,SA)¥520198008-198707

35194COVER, TRANSMISSION CASE DUST

main35194-12010iKE70..2FC197908-198108

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iTE7#..3FC¥140197908-198707

main90301-17006iKE70..2FC¥580197908-198108

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iKE70,TE7#..ATM..(EUR,GEN,SA)¥360197908-198707

9011910019

main90119-10019¥280

9011912004

main90119-12004¥310

9017910015

main90179-10015¥100

9111140812

main91111-40812¥190

9111150825

main91111-50825¥190

9161140614

main91611-40614¥180

9161161028

main91611-61028¥140

9165161035

main91651-61035¥200

9411040800

main94110-40800¥120

9451100800

main94511-00800¥100

9453100800

main94531-00800¥160

31 parts on this diagram · 4 diagrams in section
