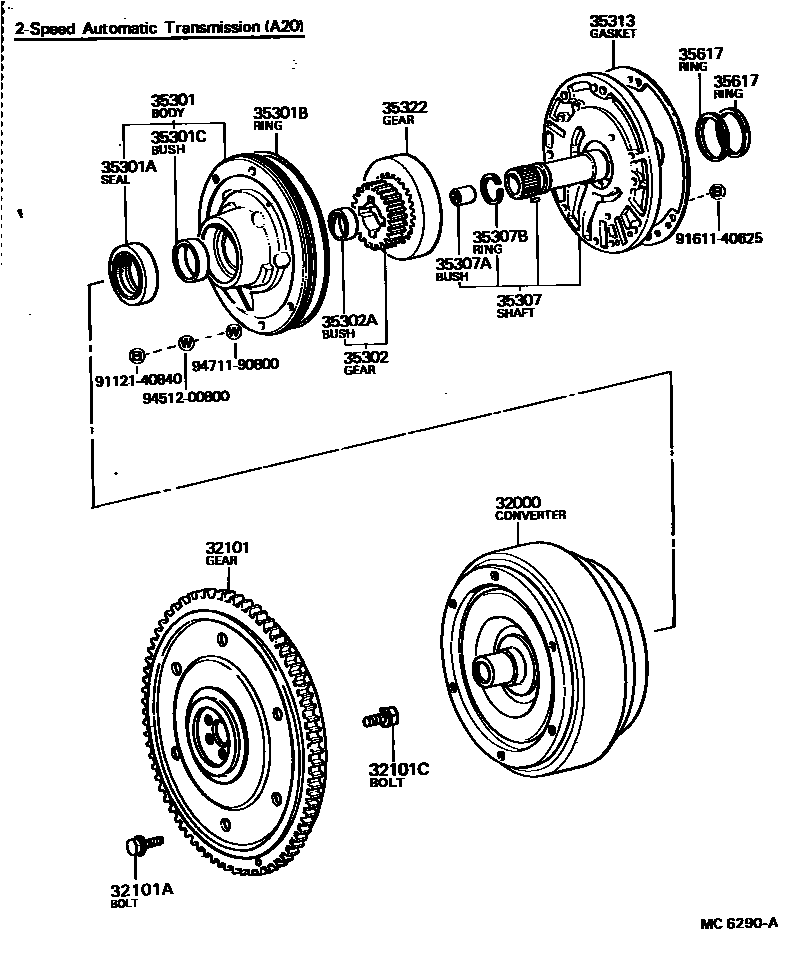

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1 0002 1 0003 1 0004 1

32000CONVERTER ASSY, TORQUE

main32000-12012iKE70..2FC197908-198108

main32000-12030iTE7#..3FC¥116,000197908-198401

main32000-12050iKE70..3FC..(EUR,GEN)¥104,000198108-198406

sub32000-12051¥104,000

main32000-12060iAE71..3FC¥105,000198305-198407

sub32000-12061¥104,000

main32000-12061iAE71..3FC¥104,000198407-198707

main32000-14080iTE72..4FC¥105,000198204-198401

sub32000-14081¥116,000

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12020iKE70..2FC¥16,200197908-198108

main32101-12030iAE71..3FC¥16,100198305-198707

main32101-12040iKE70..3FC..(EUR,GEN)¥16,200198108-198406

main32101-14030iTE7#..ATM¥20,900197908-198311

sub32101-22030¥21,000

main32101-22030iTE7#..ATM¥21,000198311-198401

sub32101-22031¥21,000

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08090iTE72..4FC;KE70,TE71..3FC..(EUR,GEN,SA)¥170198301-198707

WHITE

main90119-08223iTE72..4FC;KE70,TE71..3FC..(EUR,GEN,SA)¥190198301-198707

*8-1.25PX10.5-6.5,YELLOW

main90119-08223iKE70,TE7#..ATM¥190197908-198301

*8-1.25PX10.5-6.5

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10006iTE7#..3FC¥270197908-198204

*10-1.25X23-14.5

main90105-10046iTE71..3FC..(EUR,GEN)¥240198108-198401

*10-1.25PX23-15.5

main90105-10048iKE70..3FC..(EUR,GEN)¥130198108-198707

*10-1.25PX18-13

main90119-10078iKE70..2FC¥180197908-198108

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-12010iKE70..2FC¥10,600197908-198108

main35301-22011iTE71..3FC¥18,300197908-197909

sub35301-30030¥19,000

sub90101-06002¥130

sub90101-08046¥230

sub90301-99010¥590

main35301-22012iTE7#..3FC¥18,100197909-198010

sub35301-30030¥19,000

sub90101-06002¥130

sub90101-08046¥230

main35301-30030iTE7#..3FC¥19,000198010-198707

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iAE71..3FC¥540198311-198707

main90311-38129iKE70,TE7#..ATM..(EUR,GEN,SA)¥540197908-198311

sub90311-38020¥540

main90311-42083iKE70..2FC197908-198108

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35147-22010iTE71..3FC¥1,280197908-197909

main90301-99010iAE71..3FC¥590197909-198707

main90301-99102iKE70..2FC¥940197908-198108

35301CBUSH, BIMETAL FORMED (FOR FRONT OIL PUMP BODY)

main90999-73036iKE70..2FC¥680197908-198108

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35302-12010iKE70..2FC¥4,150197908-198108

main35321-22010iTE7#..3FC¥3,820197908-198707

sub35321-22090¥3,680

35302ABUSH, BIMETAL FORMED (FOR FRONT OIL PUMP DRIVE GEAR)

main90999-73037iKE70..2FC¥800197908-198108

35307SHAFT SUB-ASSY, STATOR

main35307-12012iKE70..2FC¥18,100197908-198108

main35307-22011iTE7#..3FC¥25,300197908-198108

sub35370-22010¥25,500

main35370-12011iKE70..3FC..(EUR,GEN)¥17,900198108-198406

sub35370-12012¥17,800

main35370-12020iAE71..3FC¥25,200198305-198410

sub35370-12021¥25,200

main35370-12021iAE71..GEN¥25,200198508-198707

main35370-22010iTE7#..3FC..SA¥25,500198108-198204

main35370-22011iTE71..3FC¥26,500198108-198401

sub35370-22012¥26,900

main35370-22030iTE72..4FC¥25,300198204-198401

sub35370-22031¥25,300

35307ABUSH, BIMETAL FORMED (FOR STATOR SHAFT)

main90999-73047iKE70..2FC¥540197908-198108

35307BRING, SHAFT SNAP (FOR STATOR SHAFT)

main90520-25116iKE70..2FC¥160197908-198108

35313GASKET, FRONT OIL PUMP COVER

main35313-12011iKE70..2FC¥440197908-198108

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-22010iAE71..3FC¥4,910197908-198707

T=15.286-15.235

sub35322-22090¥5,400

main35322-31010iKE70..2FC¥4,350197908-198108

35617RING, CLUTCH DRUM OIL SEAL

main35617-12010iKE70..2FC¥1,220197908-198108

main35617-16010iTE72..4FC¥1,260198204-198401

main35617-22010iTE7#..3FC¥1,360197908-198204

main35617-22011iKE70,TE71..3FC..(EUR,GEN,SA)¥2,010198108-198509

sub35617-32010¥1,400

main35617-32010iAE71..GEN¥1,400198509-198707

9112140840

main91121-40840¥210

9161140625

main91611-40625¥160

9451200800

main94512-00800¥80

9471190800

main94711-90800¥190
