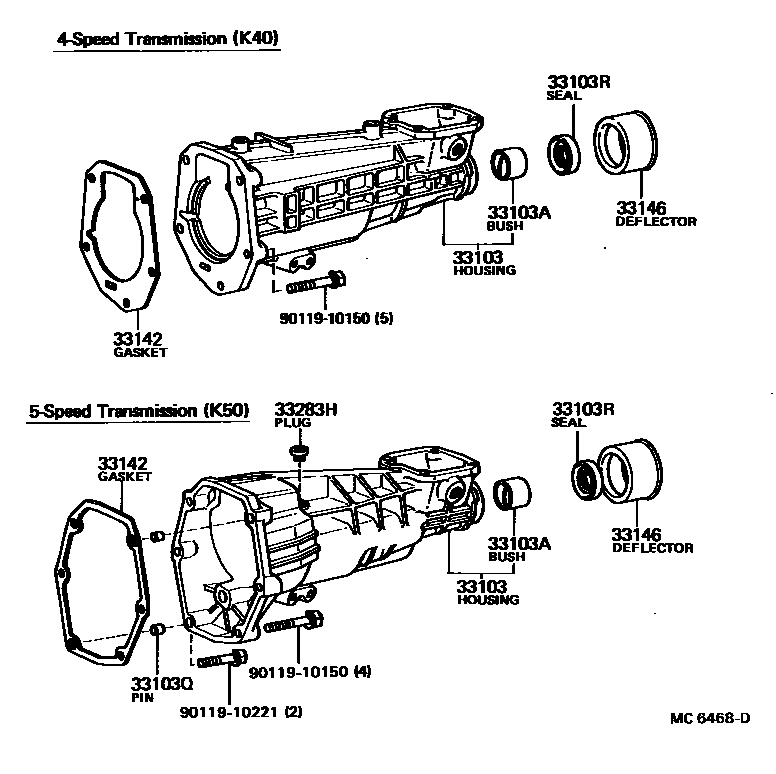

EXTENSION HOUSING (MTM)

0001 1 0002 1 0004 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-12070iKE70..4F197908-198707

main33103-12090iKE70..5F197908-198102

sub33103-12H00

main33103-12091iKE70..5F198102-198707

main33103-12130iAE71..SA198503-198707

main33103-14030iAE71,TE71..4F198106-198403

sub33103-14031

main33103-14031iAE71,TE71..STD198403-198406

sub33103-12120

main33103-14040iAE71,TE7#..5F198106-198403

sub33103-14041

main33103-14041iAE71,TE7#..5F198403-198503

sub33103-12130

main33103-20100iCE70198210-198306

main33103-20101iCE70198306-198508

main33103-20120iTE7#..4F197908-198106

sub33103-14031

sub90341-18006

sub90430-18008

main33103-20130iTE7#..5F197908-198106

sub33103-14040

main33103-22090iCE70198508-198707

sub33103-22091

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72022iKE70..4F197908-198707

main90999-72023iCE70198508-198512

sub90999-73139

main90999-72024iKE70..5F197908-198707

main90999-73062iCE70198210-198508

33103QPIN, RING(FOR EXTENSION HOUSING)

main90253-13017iKE70..5F197908-198707

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-32010iAE71,KE70,TE7#..MTM198109-198707

main90311-32086iTE7#..MTM;KE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198109

sub90311-32010

main90311-38040iCE70198609-198707

sub90311-38030

main90311-38043iCE70198210-198609

sub90311-38040

33142GASKET, EXTENSION HOUSING(MTM)

main33142-10021iKE70..5F197908-198707

main33142-12020iKE70..4F197908-198707

main33142-14010iAE71,TE7#..MTM197908-198707

main33142-20020iCE70198210-198508

main33142-22010iCE70198508-198707

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-12010iKE70..CP..5F;AE71,TE7#..MTM;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

main33146-30010iCE70198210-198707

sub33146-30020

33283HPLUG, W/HEAD STRAIGHT SCREW

main90341-10065iAE71,KE70,TE7#..5F197908-198707

9011910150

main90119-10150

9011910221

main90119-10221

9 parts on this diagram · 3 diagrams in section
