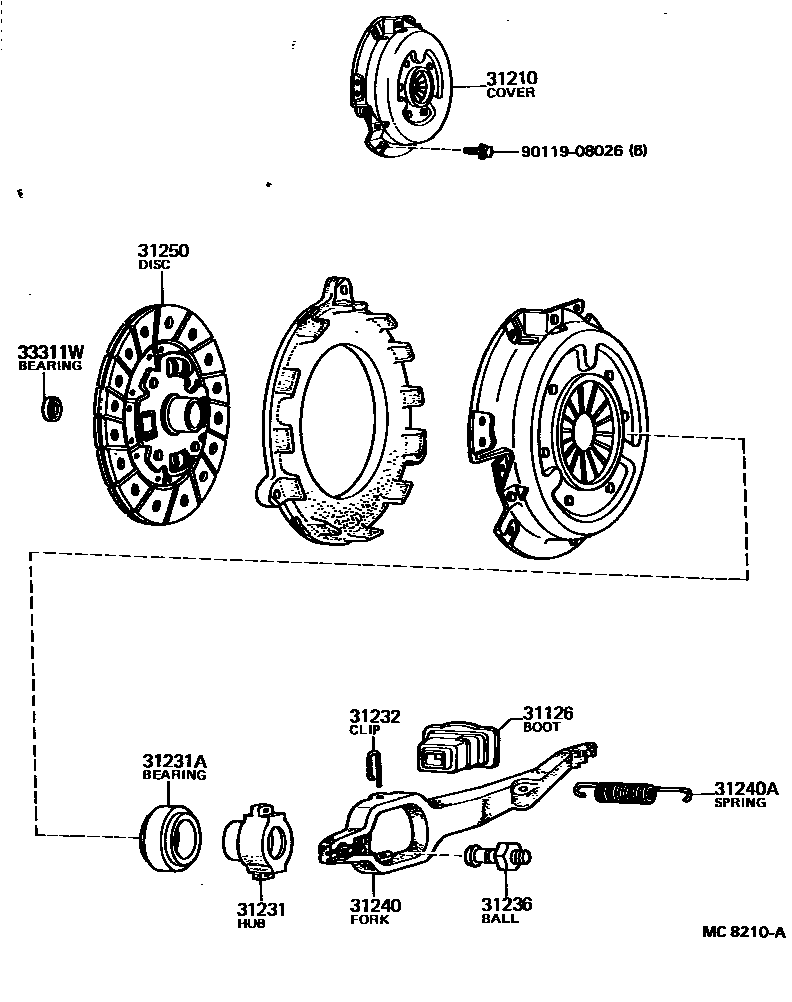

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0005 1 0006 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12020iKE70..2D..ARL197908-198707

main31126-12040iKE70..5F197908-198707

main31126-20070iAE71,CE70,TE7#..MTM198008-198707

main31126-22040iTE7#..MTM197908-198008

31210COVER ASSY, CLUTCH

main31210-12051iKE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198008

sub31210-12052

main31210-12052iKE70..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..4F198008-198707

sub31210-12053

main31210-12080iTE72..5F198305-198404

sub31210-12120

main31210-12100iAE71..MTM198305-198508

sub31210-12180

main31210-14013iTE71..MTM..(DX,GL,SE,SR,STD,XE)197908-198012

sub31210-14070

main31210-14033iTE71..GT197908-198012

sub31210-14100

main31210-14070iTE71..MTM..(DX,GL,SE,SR,STD,XE)198012-198502

sub31210-14100

main31210-14100iTE71..GT198012-198305

sub31210-14101

main31210-20200iAE71..SA198508-198707

sub31210-16100

main31210-23011iTE72..MTM197908-198012

sub31210-23012

main31210-23012iTE72..5F198012-198305

sub31210-12210

main31210-30172iCE70198508-198707

sub31210-20270

main31210-35042iCE70198210-198508

sub31210-22120

31231HUB, CLUTCH RELEASE BEARING

main31231-12032iKE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198010

main31231-12033iKE70..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..4F198010-198707

main31231-12050iAE71..MTM198305-198707

main31231-14031iTE7#..MTM197908-198007

sub31231-14032

main31231-14032iTE7#198007-198008

main31231-20081iTE7#..MTM198008-198502

main31231-20090iCE70198508-198707

main31231-36070iCE70198210-198508

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-33002iKE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198204

sub90363-33004

main90363-33004iKE70..MTM198204-198707

main90363-40001iTE7#..MTM197908-198002

sub90363-40008

main90363-40008iTE7#..MTM198002-198007

main90363-40015iTE7#..MTM198007-198012

sub90363-40022

main90363-40022iAE71,CE70,TE7#..MTM198012-198707

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-12010iKE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

main31232-22010iAE71,CE70,TE7#..MTM197908-198707

31236BALL, RELEASE FORK

main31236-20020iTE7#..MTM197908-198108

sub31236-30060

main31236-30030iKE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

main31236-30060iAE71,CE70,TE7#..MTM198108-198707

31240FORK ASSY, CLUTCH RELEASE

main31204-10040iKE70..5F197908-198010

main31204-12010iKE70..4F197908-198010

main31204-12011iKE70..4F198010-198707

main31204-12031iKE70..5F198010-198707

main31204-20080iAE71,TE7#..MTM198008-198707

main31204-20090iCE70198210-198707

main31204-22030iTE7#..MTM197908-198008

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-14139iKE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

31250DISC ASSY, CLUTCH

main31250-12021iKE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198012

sub31250-12070

main31250-12061iTE71..MTM..(EUR,GEN,SAA)198001-198208

sub31250-12062

main31250-12062iTE71..GT198208-198305

sub31250-16040

main31250-12070iKE70..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..4F198012-198409

sub31250-12071

main31250-12071iKE70..MTM198409-198707

sub31250-12072

main31250-12080iTE72..MTM198001-198108

sub31250-12081

main31250-12081iAE71,TE72..MTM198108-198707

sub31250-12184

main31250-14090iTE71..MTM197908-198208

sub31250-14091

main31250-14091iTE71..MTM..(DX,GL,SR,STD,XE)198208-198502

sub31250-14092

main31250-14100iTE72197908-197910

sub31250-14101

main31250-14101iTE72197910-198001

sub31250-12080

main31250-20111iCE70198210-198407

sub31250-20112

main31250-20112iCE70198407-198502

sub31250-20113

main31250-20113iCE70198502-198508

sub31250-20114

main31250-22210iCE70198508-198707

sub31250-22211

33311WBEARING (FOR INPUT SHAFT)

main90363-12003iKE70..5F;AE71,TE7#..MTM;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..4F198010-198707

main90363-12004iCE70198210-198707

main97123-06001iTE7#..MTM;KE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198010

9011908026

main90119-08026

11 parts on this diagram · 5 diagrams in section
