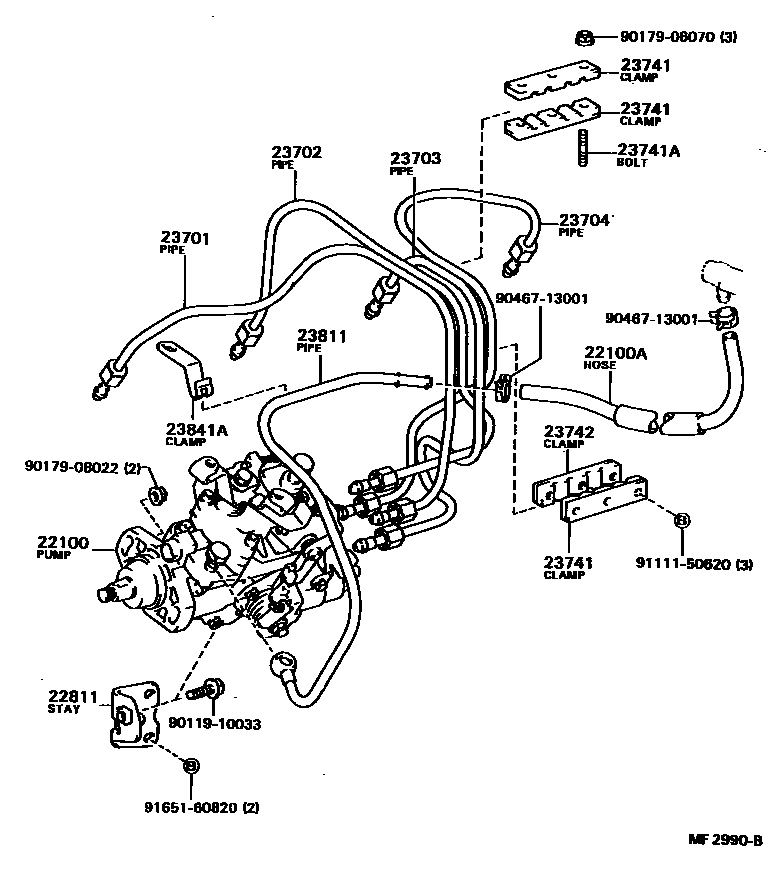

INJECTION PUMP ASSEMBLY

0001 1 0003 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-64090i1C..CE70198210-198305

main22100-64110i1C..CE70..LHD198210-198305

COLD SPEC

sub88031-12120

main22100-64230i1C..CE70198305-198501

sub22100-64280

main22100-64240i1C..CE70198305-198501

COLD SPEC

sub88031-30070

main22100-64820i1C..CE70198508-198707

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-64011i1C..CE70..RHD198210-198305

main90447-14044i1C..CE70..RHD198606-198707

main95332-08030i1C..CE70..LHD198210-198702

L=300

main95333-08030i1C..CE70..LHD198702-198707

L=300

22811STAY, INJECTION PUMP, NO.1

main22811-64010i1C..CE70198210-198707

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-64010i1C..CE70198210-198707

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-64020i1C..CE70198210-198707

sub23702-64010

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-64010i1C..CE70198210-198707

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-64020i1C..CE70198210-198707

sub23704-64010

23741CLAMP, INJECTION PIPE, NO.1

main23741-64010×3i1C..CE70198210-198707

sub23741-64011

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main92122-60622×3i1C..CE70198210-198707

23742CLAMP, INJECTION PIPE, NO.2

main23742-64010i1C..CE70198210-198707

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-64011i1C..CE70198210-198707

sub23811-64012

23841ACLAMP, FUEL PIPE, NO.1(FOR INJECTION PUMP)

main90929-01018i1C..CE70198210-198707

9011910033

main90119-10033

9017906070

main90179-06070

9017908022

main90179-08022

9046713001

main90467-13001

9111150620

main91111-50620

9165160820

main91651-60820

18 parts on this diagram · 2 diagrams in section
