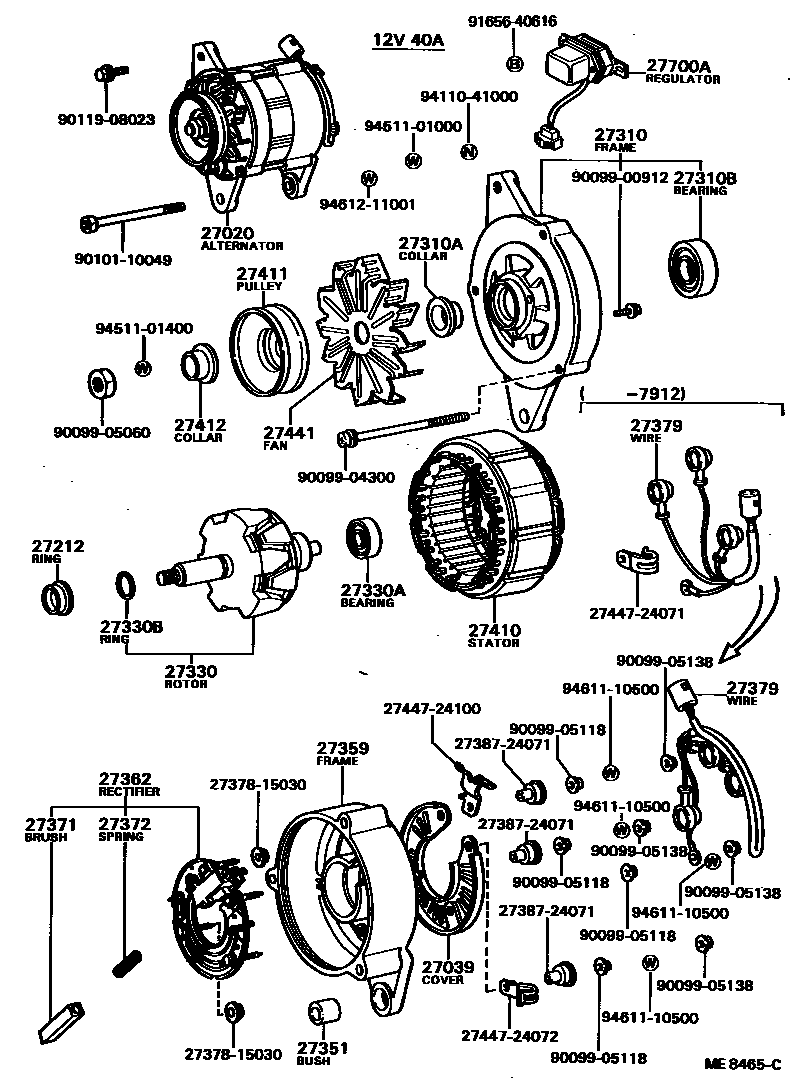

ALTERNATOR

0001 1 0003 1 0006 1 0007 1 0008 1 0009 1 0010 1 0012 1 0015 1 0016 1

27020ALTERNATOR ASSY

main27020-13040i4K..KE70197908-197912

12V 40A

sub27020-13041

main27020-13041i4K..KE70..SA197912-198204

12V 40A

main27020-13110i4K#..KE70..LHD..EUR198108-198707

12V 50A,12V 50A

main27020-13140i4KC..KE70..2D..ARL198108-198707

12V 40A,12V 40A

main27020-15030i4A..AE71198501-198707

12V 40A,12V 40A

main27020-15100i4AC..AE71198305-198410

12V 45A,12V 45A

sub27020-15022

main27020-18010i2T..TE71..LHD..GEN197908-197912

12V 40A

sub27020-18011

main27020-18011i2T,2TB..TE71..LHD..(GEN,SAA)197912-198502

12V 40A,12V 40A

sub27020-38120

main27020-24100i4K#..KE70..LHD..EUR197908-197910

12V 50A

sub27020-24101

main27020-24101i4K#..KE70..LHD..EUR197910-197912

12V 50A

sub27020-24102

main27020-24102i4K#..KE70..LHD..EUR197912-198108

12V 50A

main27020-26110i2TG..TE71..EUG197908-197910

12V 50A

sub27020-26111

main27020-26111i2TG..TE71..GEN197910-198305

12V 50A

sub27020-26121

main27020-26150i2TG..TE71197908-198108

12V 40A

sub27020-26111

main27020-34020i3TC..TE72..SDN197908-198004

12V 55A

sub27020-34021

main27020-34021i3TC..TE72..EUR198004-198305

12V 55A,12V 55A

main27020-34051i2T..TE71..LHD..3FC..GEN197908-198305

12V 50A,12V 50A

sub27020-34021

main27020-38120i3TC..TE72..ARL198108-198305

12V 45A,12V 45A

main27020-64010i1C..CE70198210-198707

12V 55A,12V 55A

27039COVER, ALTERNATOR REAR END

main27039-15010i4K#..KE70..LHD..EUR197908-198108

12V 50A

sub27039-61034

main27039-15030i2T,2TB,3TC..TE7#..RHD197908-197912

12V 40A

sub27039-18011

main27039-18011i4K,2TG..KE70,TE71197912-198707

12V 40A

main27039-18011i4K,2TG..KE70,TE71197912-198410

12V 45A

main27039-36070i3TC..TE72..SDN197908-198004

12V 50A,55A

main27039-45110i2TG..TE71..GEN197908-198305

12V 50A

sub27039-34022

main27039-45110i2TG..TE71..GEN198004-198305

12V 50A,55A

sub27039-34022

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i4K..KE70..SA197908-198707

12V 40A

main27212-39050i4AC..AE71;4KC..KE70..2D..ARL198108-198410

12V 40A,45A

main27412-15150i4K#..KE70..LHD..EUR198604-198707

12V 50A

main27412-45070i4K#,2T#,3TC..KE70,TE7#..LHD..EUR197908-198305

12V 50A

main27412-45070i4K#,2T#,3TC..KE70,TE7#..LHD..EUR197908-198604

12V 50A,55A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-13050i4K..KE70197908-198707

12V 40A

main27310-15030i4A..AE71198501-198707

12V 40A

main27310-15030i4AC..AE71198305-198410

12V 45A

main27310-18010i2T,2TB,3T#..TE7#..RHD197908-198502

12V 40A

main27310-24071i4K#..KE70..LHD..EUR197908-198707

12V 50A

main27310-34050i2T..TE71..RHD..2D..GEN197908-198305

12V 50A

main27310-34050i2TG..TE71..GEN197908-198305

12V 50A,55A

main27310-64030i1C..CE70198210-198707

12V 55A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27333-57060i1C..CE70198210-198707

12V 55A

main27412-31040i4AC..AE71;4KC..KE70..2D..ARL198108-198410

12V 40A,45A

main27412-31040i2T#,3T#..TE7#198108-198502

12V 40A,50A,55A

main27412-31040i4A..AE71198204-198707

12V 40A

main27412-31040i4K#..KE70..EUR,GEN,SAA198108-198707

12V 40A,50A

main27412-31040i4K#,2T#,3T#..KE70,TE7#197908-198108

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10114i4K#..KE70..LHD..EUR197908-198008

12V 50A

sub90099-10126

main90099-10115i2TB..TE71..LHD..GEN197908-198007

12V 50A

sub90099-10125

main90099-10115i2TB..TE71..LHD..GEN197908-198007

12V 50A,55A

sub90099-10125

main90099-10125i2T#,3TC..TE7#..(DX,GT,XE)..(EUG,SDN)198007-198305

12V 50A,55A

main90099-10125i2TB..TE71..LHD..GEN198007-198305

12V 50A

main90099-10126i4K,2TG..KE70,TE71197908-198707

12V 40A

sub90099-10125

main90099-10126i4AC..AE71;4KC..KE70..2D..ARL198108-198410

12V 40A,45A

sub90099-10125

main90099-10126i4K#..KE70..LHD..EUR198008-198707

12V 50A

sub90099-10125

main90099-10137i1C..CE70198210-198707

12V 55A

27330ROTOR ASSY, ALTERNATOR

main27330-16030i4K#..KE70..LHD..EUR198604-198707

12V 50A

main27330-26050i2T,2TB..TE71..LHD..(GEN,SAA)197908-198707

12V 40A

main27330-33010i4K..KE70197908-198204

12V 40A

main27330-45020i3TC..TE72..ARL198108-198410

12V 45A

main27330-45070i4K#,2T#,3TC..KE70,TE7#..LHD..EUR197908-198604

12V 50A,55A

sub27330-16030

main27330-45070i4K#,2T#,3TC..KE70,TE7#..LHD..EUR197908-198305

12V 50A

sub27330-16030

main27330-64010i1C..CE70198210-198707

12V 55A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10111i4K..KE70197908-198707

12V 40A

sub90099-10116

main90099-10111i4K..KE70197908-197910

12V 50A,55A

sub90099-10116

main90099-10111i3TC..TE72..SDN197910-198004

12V 55A

sub90099-10116

main90099-10111i4K#..KE70..LHD..EUR197908-198108

12V 50A

sub90099-10116

main90099-10111i4AC..AE71;4KC..KE70..2D..ARL198108-198410

12V 40A,45A

sub90099-10116

main90099-10111i4K#..KE70..EUR,GEN,SA,SAA198108-198707

12V 40A,50A

sub90099-10116

main90099-10116i2TG..TE71..GEN197908-198305

12V 50A

main90099-10116i2T,2TB,3TC..TE7#..EUR,GEN198004-198305

12V 50A,55A

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048i4A..AE71197908-198707

12V 40A

main90099-07048i4AC..AE71;4KC..KE70..2D..ARL198108-198410

12V 40A,45A

main90099-07103i1C..CE70198210-198707

12V 55A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i4A..AE71198501-198707

12V 40A

main27351-38051i4K#,2T#,3T#..KE70,TE7#197908-198108

main27351-38051i4AC..AE71;4KC..KE70..2D..ARL198108-198410

12V 40A,45A

main27351-38051i2T#,3T#..TE7#198108-198502

12V 40A,50A,55A

main27351-38051i4K#..KE70..EUR,GEN,SA,SAA198108-198707

12V 40A,50A

main27351-64010i1C..CE70198210-198707

12V 55A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-13040i4K..KE70197908-198204

12V 40A

main27359-13050i2TG..TE71197908-198502

12V 40A

main27359-13090i4KC..KE70..2D..ARL198108-198707

12V 40A

main27359-13110i4K#..KE70..LHD..EUR198108-198707

12V 50A

main27359-15030i4AC..AE71198305-198410

12V 45A

main27359-15030i4A..AE71198501-198707

12V 40A

main27359-24060i4K#..KE70..LHD..EUR197910-198108

12V 50A

main27359-24071i4K#..KE70..LHD..EUR197908-197910

12V 50A

main27359-24100i2TG..TE71..GEN198004-198305

12V 50A,55A

main27359-24100i2TB..TE71..LHD..GEN197908-198305

12V 50A

main27359-45081i2TG,3TC..TE7#..EUR197908-198004

12V 50A,55A

27362RECTIFIER ASSY, W/BRUSH

main27362-13040i4K..KE70..SA197908-198204

12V 40A

main27362-13090i4K..KE70..EUR,GEN,SAA198108-198707

12V 40A

main27362-13110i4K#..KE70..LHD..EUR198108-198707

12V 50A

main27362-15021i2TG..TE71..GEN198007-198305

12V 50A

sub27362-63011

main27362-15030i2TG..TE71197908-198108

12V 40A

main27362-18011i4AC..AE71198305-198410

12V 45A

main27362-18011i2T,2TB..TE71..LHD..(GEN,SAA)198108-198707

12V 40A

main27362-34020i3TC..TE72..SDN198004-198007

12V 55A

main27362-34021i3TC..TE72..EUR198007-198305

12V 55A

sub27362-63011

main27362-34050i2T..TE71..LHD..3FC..GEN197908-198007

12V 50A

sub27362-15021

27371BRUSH, ALTERNATOR

main27371-31011i4K,2TG..KE70,TE71197910-198707

12V 40A

main27371-31011i2T#,3T#..TE7#198007-198502

12V 40A,50A,55A

main27371-31011i4K#..KE70..EUR,GEN,SA,SAA198108-198707

12V 40A,50A

main27371-31011i4K,2T#,3TC..KE70,TE7#197908-198410

12V 40A,45A

main27371-31011i4K,2T#,3TC..KE70,TE7#197908-197910

12V 50A,55A

main27371-31011i3TC..TE72..SDN197910-198004

12V 55A

main27371-44070i2T..TE71..LHD..3FC..GEN197908-198007

12V 50A

sub27371-31011

main27371-44070i4K#,2T#,3TC..KE70,TE7#..LHD..EUR198004-198007

12V 50A,55A

sub27371-31011

main27371-56070i1C..CE70198210-198707

12V 55A

sub27371-54412

27372SPRING, ALTERNATOR BRUSH

main27372-31011i4K#,2T#,3T#..KE70,TE7#198007-198502

12V 40A,50A,55A

main27372-31011i4K,2T#,3TC..KE70,TE7#197908-198707

12V 40A

main27372-31011i4K,2T#,3TC..KE70,TE7#197908-197910

12V 50A,55A

main27372-31011i3TC..TE72..SDN197910-198004

12V 55A

main27372-31011i4AC..AE71;4KC..KE70..2D..ARL198108-198410

12V 40A,45A

main27372-31011i4K#..KE70..EUR,GEN,SA,SAA198108-198707

12V 40A,50A

main27372-56070i1C..CE70198210-198707

12V 55A

main90099-17114i4K#,2T,2TB..KE70,TE71..LHD..EUR197908-198007

12V 50A

sub27372-31011

main90099-17114i4K#,2T#,3TC..KE70,TE7#..LHD..EUR198004-198007

12V 50A,55A

sub27372-31011

27379WIRE, ALTERNATOR LEAD

main27037-24100i4K#..KE70197908-197912

12V 40A,50A

main27037-24101i4K#..KE70197912-198108

12V 40A,50A

27410STATOR ASSY, ALTERNATOR

main27410-15030i4K,2TG..KE70,TE71197908-198707

12V 40A

sub27410-38120

main27410-34020i3TC..TE72..SDN197908-198004

12V 55A

sub27410-45070

main27410-34050i4K#,2TG..KE70,TE71..LHD..EUR197908-197910

12V 50A

sub27410-45080

main27410-38120i3TC..TE72..ARL198108-198410

12V 45A

main27410-41080i2T,2TB..TE71..LHD..EUG197908-198707

12V 50A

main27410-43040i3TC..TE72..SDZ198208-198707

12V 55A

main27410-45120i3TC..TE72..SDN198004-198208

12V 55A

sub27410-43040

main27410-64010i1C..CE70198210-198307

12V 55A

27411PULLEY, ALTERNATOR

main27411-26111i4A..AE71198108-198707

12V 40A

main27411-26111i4K#,2TG..KE70,TE71197908-198108

12V 40A,50A

main27411-26111i2TG..TE71198108-198305

12V 50A

main27411-26111i4AC..AE71198305-198410

12V 45A

main27411-31042i2T,2TB,3T#..TE7#197908-198502

12V 40A,45A,50A,55A

main27411-31042i4K#..KE70..EUR,GEN,SAA198108-198707

12V 40A,50A

main27411-31042i4K..KE70..SA198108-198707

12V 40A

main27411-64010i1C..CE70198210-198707

12V 55A

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44030i4AC..AE71;4KC..KE70..2D..ARL198108-198410

12V 40A,45A

sub27412-44031

main27412-44030i4K#,2T#,3T#..KE70,TE7#197908-198108

12V 40A,50A,55A

sub27412-44031

main27412-44030i2T#,3T#..TE7#198108-198502

12V 40A,45A,50A,55A

sub27412-44031

main27412-44030i4K#..KE70..EUR,GEN,SA,SAA198108-198707

12V 40A,50A

sub27412-44031

main27412-44030i4A..AE71198501-198707

12V 40A

sub27412-44031

main27412-57060i1C..CE70198210-198707

12V 55A

27441FAN, ALTERNATOR

main27441-34030i4K#,2T#,3T#..KE70,TE7#197908-198108

12V 40A,50A,55A

main27441-34030i4AC..AE71;4KC..KE70..2D..ARL198108-198410

12V 40A,45A

main27441-34030i2T#,3T#..TE7#198108-198502

12V 40A,45A,50A,55A

main27441-34030i4K#..KE70..EUR,GEN,SA,SAA198108-198707

12V 40A,50A

main27441-34030i4A..AE71198501-198707

12V 40A

main27441-56090i1C..CE70198210-198707

12V 55A

27700AREGULATOR ASSY, GENERATOR

main27700-15010i4K#,2T#,3T#..KE70,TE7#197908-198009

12V 40A,45A,50A,55A

sub27700-15011

main27700-15011i4K,2T..KE70,TE71..SAA198305-198308

12V 40A

sub27700-15040

main27700-15011i1C,4K#,2T#,3T#..CE70,KE70,TE7#198009-198305

12V 40A,45A,50A,55A

sub27700-15040

main27700-15030i4KC..KE70..2D198305-198309

12V 40A

sub27700-15040

main27700-15030i4KC..KE70..SDZ;4A#,1C,4K,2T,3T..AE71,CE70,KE70,TE7#..ARL,EUR,GEN,SA198305-198707

12V 40A,45A,50A,55A

sub27700-15040

main27700-15050i1C,4K..CE70,KE70..LHD..EUG198305-198707

COLD SPEC & HALOGEN HEADLAMP

sub27700-15051

2737815030INSULATOR, ALTERNATOR, NO.1

main27378-15030

2738724071INSULATOR, TERMINAL

main27387-24071

2744724071CLIP, ALTERNATOR CORD

main27447-24071

2744724072CLIP, ALTERNATOR CORD

main27447-24072

2744724100CLIP, ALTERNATOR CORD

main27447-24100

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905138

main90099-05138

9010110049

main90101-10049

9011908023

main90119-08023

9165640616

main91656-40616

9411041000

main94110-41000

9451101000

main94511-01000

9451101400

main94511-01400

9461110500

main94611-10500

9461211001

main94612-11001

38 parts on this diagram · 10 diagrams in section
