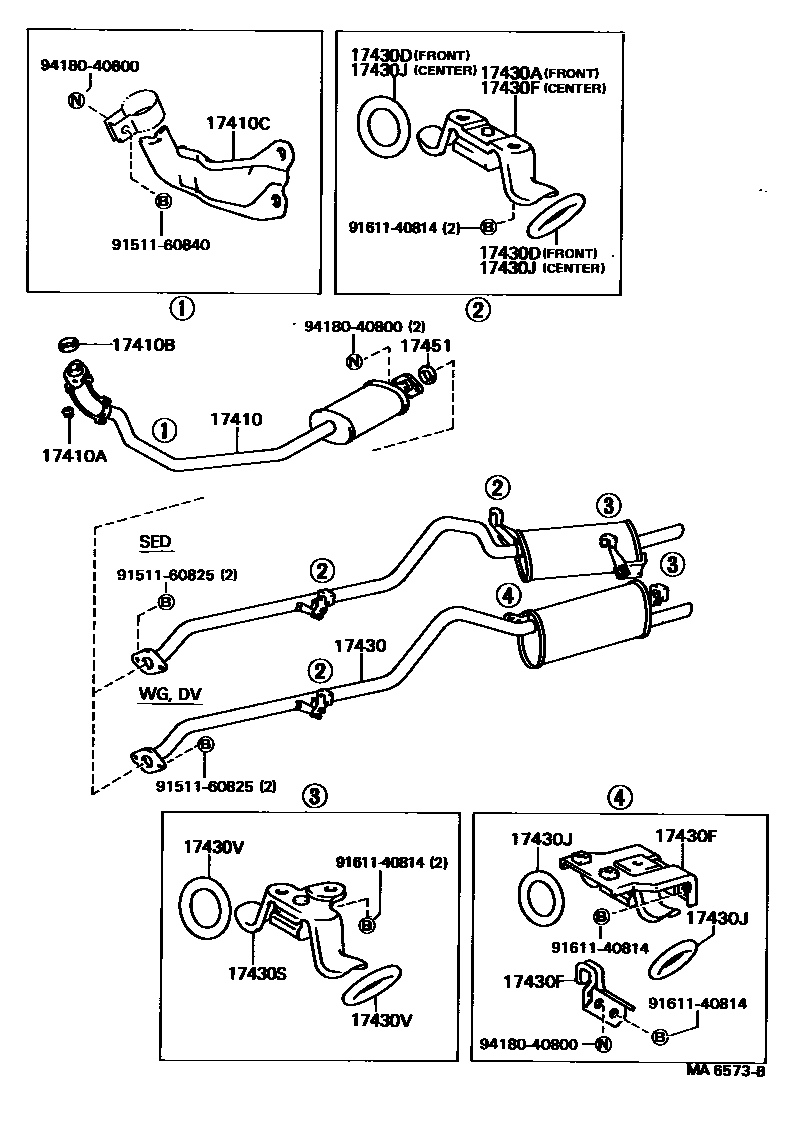

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-13070i4KC..KE70197908-198204

main17410-13080i4K..KE70..(DV,WG)..4F..(GEN,SA,SAA)197908-198707

main17410-13140i4K..KE70..(CP,LB,SED)..(EUR,GEN,SAA)198108-198707

main17410-13150i4KC..KE70..2D;4KC..KE70..4D..EUR198108-198707

main17410-16110i4AC..AE71..3FC198306-198707

main17410-26270i2T#,3T..TE7#197908-198502

main17410-26340i2T,2TB..TE71..EUR,GEN,SAA198108-198406

main17410-28040i3TC..TE72197908-198305

main17410-64030i1C..CE70198210-198508

sub17410-64031

main17410-64031i1C..CE70198508-198707

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10010i4AC,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7#197908-198406

main90179-10070i4A#,1C,4K#,2T..AE71,CE70,KE70,TE71198406-198707

17410BGASKET, EXHAUST PIPE

main17451-22010i4K..KE70197908-198707

sub17451-13010

main17451-41020i2TG..TE71;2T,2TB,3T..TE7#..SA197908-198502

sub17451-28010

main90917-06001i2T,2TB..TE71..EUR,GEN,SAA198108-198406

sub90917-06038

main90917-06004i4A#,1C,3TC..AE71,CE70,TE72197908-198707

sub90917-06039

main90917-06020i4KC..KE70198108-198707

sub90917-06044

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-13050i4K..KE70..(DV,WG)..4F..(GEN,SA,SAA)197908-198707

main17571-13060i4K..KE70..WG..5F..GEN197908-198707

main17571-13110i4KC..KE70..4D..ARL198108-198707

main17571-16060i4AC..AE71..5F198305-198308

main17571-16070i4A#..AE71..3FC198305-198707

main17571-16080i4A#..AE71..MTM198308-198707

main17571-26150i3TC..TE72197908-198305

main17571-26160i2T#,3T..TE7#197908-198502

main17571-64030i1C..CE70198210-198707

17430PIPE ASSY, EXHAUST, TAIL

main17430-13050i4K#..KE70..(CP,LB,SED)..EUR197908-198212

main17430-13060i4K..KE70..(CP,LB,SED)..(GEN,SA,SAA)197908-198205

sub17430-13061

main17430-13061i4K..KE70..SED..SAA198205-198308

sub17430-26470

main17430-13070i4K,2T..KE70,TE71..(DV,WG)..(GEN,SAA)197908-198308

sub17430-13080

main17430-13080i4K,2T..KE70,TE71..(DV,WG)..(GEN,SA)197908-198707

main17430-13110i4KC..KE70..SED..ARL198108-198502

main17430-16120i4A..AE71198309-198707

main17430-26470i2T#,3T#..TE7#..CP,LB,SED197908-198502

main17430-26480i2T..TE71..SA197908-198204

sub17430-26470

main17430-64040i1C..CE70198210-198305

main17430-64130i1C..CE70198305-198707

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17506-13020i4A#,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7#197908-198707

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main90301-34207i4A#,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7#197908-198707

17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)

main17506-13020i4AC,1C,4K#,2T#,3TC..AE71,CE70,KE70,TE7#..CP,LB,SED197908-198502

main17507-24020i4AC,1C,4K#,2T..AE71,CE70,KE70,TE71..DV,WG197908-198707

UPR

main17507-64010i1C..CE70198410-198707

UPR

main17562-13030i1C,4K#,2T..CE70,KE70,TE71..DV,WG197908-198502

LWR

main17562-64050i4A#,1C,4K#..AE71,CE70,KE70..DV,WG198309-198707

LWR

17430JBOLT OR RING, EXHAUST TAILPIPE(FOR CENTER)

main90301-34207i4A#,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7#197908-198707

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17508-13010i4AC,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7#..CP,LB,SED197908-198502

main17508-24040i4A#,1C,4K#,2T..AE71,CE70,KE70,TE71..DV,WG197908-198707

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main90301-34207i4A#,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7#197908-198707

17451GASKET, EXHAUST PIPE

main90917-06004i4AC..AE71..DV,WG198210-198707

sub90917-06039

main90917-06026i4A#..AE71..WG197908-198707

sub90917-06060

9151160825

main91511-60825

9151160840

main91511-60840

9161140814

main91611-40814

9418040800

main94180-40800

16 parts on this diagram · 4 diagrams in section
