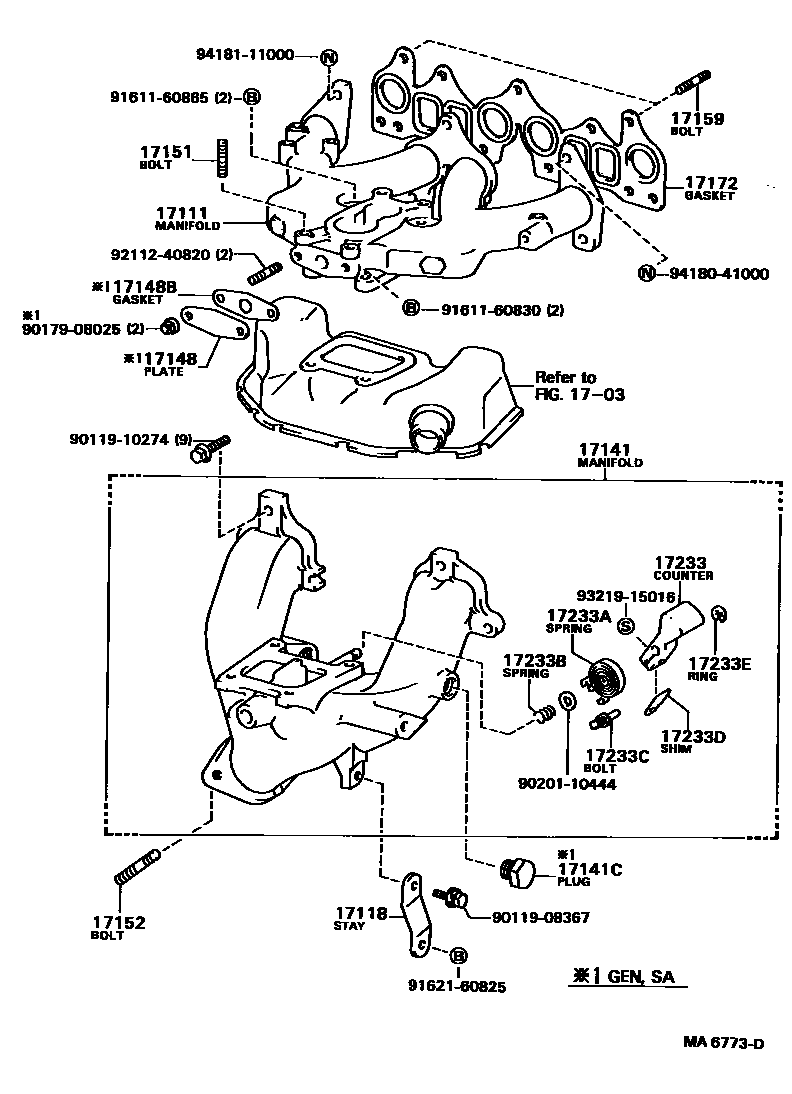

MANIFOLD

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1

1703

17111MANIFOLD, INTAKE

main17111-16010i4A#..AE71198305-198707

main17111-25901i2TB..TE71197908-198305

main17111-26051i2T,3T#..TE7#197908-198502

main17111-64010i1C..CE70198210-198707

main17111-88222i2TG..TE71197908-198305

17118STAY, MANIFOLD

main17118-15030i4A#..AE71198305-198707

main17118-26010i2TB..TE71197908-198305

main17118-64010i1C..CE70198210-198707

17141MANIFOLD, EXHAUST

main17140-16070i4A#..AE71198305-198707

main17141-26012i2T#,3T..TE7#197908-198502

main17141-26061i3TC..TE72197908-198305

main17141-27011i2T,2TB..TE71..EUR,GEN,SAA198108-198406

main17141-64010i1C..CE70198210-198307

main17141-64011i1C..CE70198307-198707

sub17141-64012

sub17173-64060

17141CPLUG, W/HEAD STRAIGHT SCREW

main90341-20086i4A..AE71..GEN198508-198707

17148PLATE, EXHAUST MANIFOLD(FOR EGR INLET)

main25617-14010i4A..AE71..GEN198508-198707

17148BGASKET, EGR INLET

main25629-15011i4A..AE71..SA198508-198707

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

main90116-08008i2TB..TE71197908-198305

FR

main90116-08009i2TB..TE71197908-198305

RR

main90116-08010i4K#..KE70197908-198707

main90116-08023i2T,3T#..TE7#197908-198502

L=41,S=14&14

main90116-08110i2TG..TE71197908-198305

main92112-40832i4A#..AE71198310-198707

main92122-40832i4AC..AE71198305-198310

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10017i2T,2TB,3T#..TE7#197908-198707

L=41,S=14&21

main90116-10056i2T,2TB,3T#..TE7#198008-198305

L=44,S=14&21

sub90116-10087

main90116-10058i2TG..TE71198107-198707

L=46.5,S=14&20

main92122-41022i2TG..TE71197908-198107

L=37,S=15&15

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08015i2TG..TE71197908-198305

L=37,S=13.5&13.5

main90116-08035i2T,2TB,3T#..TE7#197908-198502

INTAKE MANIFOLD

main90116-10095i1C..CE70198307-198707

EXHAUST MANIFOLD

main92112-61032i4A#..AE71198305-198707

main92122-41028i4K#..KE70197908-198707

L=43,S=15&15

main92122-60820i1C..CE70198210-198707

INTAKE MANIFOLD

main92122-61025i2T#,3T#..TE7#197908-198502

EXHAUST MANIFOLD

main92122-61032i1C..CE70198210-198307

EXHAUST MANIFOLD

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17172-13020i4K#..KE70198108-198308

sub17172-13021

main17172-13021i4K#..KE70198308-198707

sub17172-13030

main17172-14010i4A#..AE71198305-198707

sub17172-14011

main17172-24011i4K#..KE70197908-198108

sub17172-13020

17233COUNTER WEIGHT

main17233-15010i4A#..AE71198305-198707

17233ASPRING, SPIRAL, NO.1(FOR COUNTER WEIGHT)

main90510-06001i4A#..AE71198305-198707

17233BSPRING, SPIRAL, NO.2(FOR COUNTER WEIGHT)

main90501-08022i4A#..AE71198305-198707

17233CBOLT(FOR COUNTER WEIGHT)

main90109-10045i4A#..AE71198305-198707

17233DSHIM(FOR COUNTER WEIGHT)

main90910-10005i4A#..AE71198305-198707

17233ERING, E(FOR COUNTER WEIGHT)

main96160-00800i4A#..AE71198305-198707

9011908367

main90119-08367

9011910274

main90119-10274

9017908025

main90179-08025

9020110444

main90201-10444

9161160830

main91611-60830

9161160865

main91611-60865

9162160825

main91621-60825

9211240820

main92112-40820

9321915016

main93219-15016

9418041000

main94180-41000

9418111000

main94181-11000

28 parts on this diagram · 8 diagrams in section
