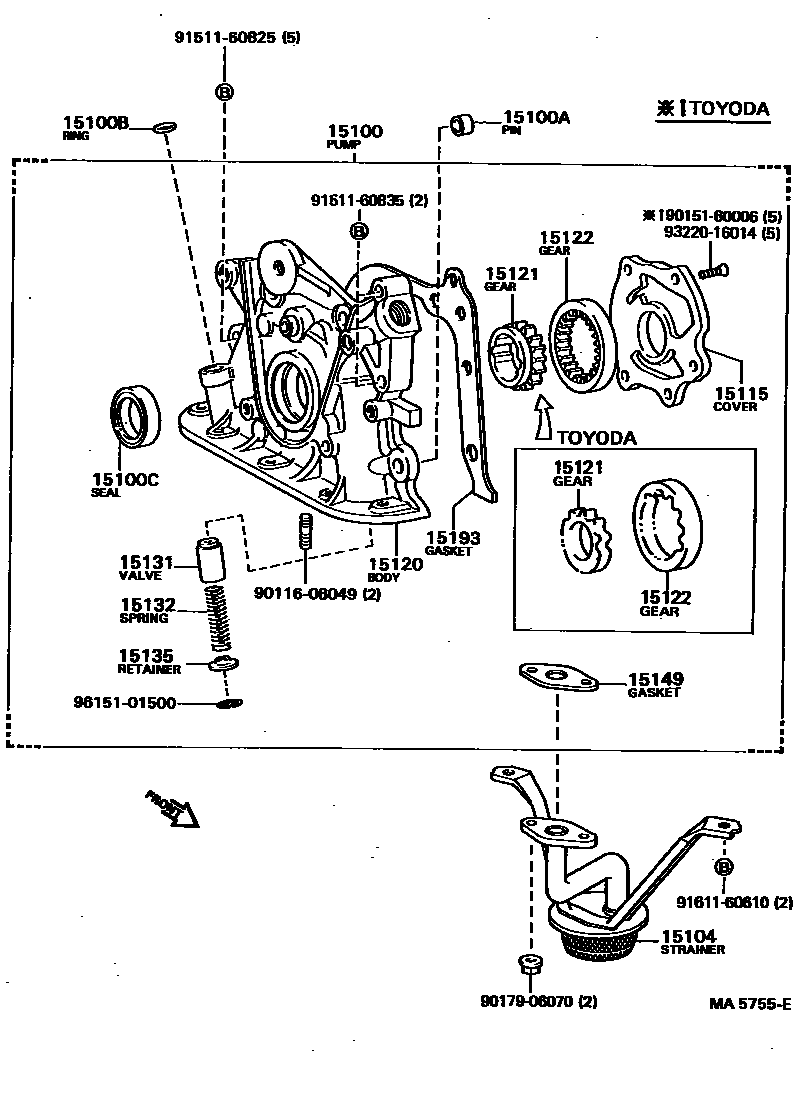

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

15100PUMP ASSY, OIL

main15100-13010i4K#..KE70197908-198009

sub15100-13011

main15100-13011i4K#..KE70198009-198508

sub15100-13030

main15100-13030i4K#..KE70198508-198707

main15100-15020i4A..AE71198511-198707

main15100-19015i4A#..AE71198305-198511

sub15100-15020

main15100-25020i2T#,3T#..TE7#197908-198502

main15100-64011i1C..CE70198210-198707

sub15100-64012

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021i4A#..AE71198210-198707

15100BRING, O(FOR OIL PUMP)

main96711-19010i4A#..AE71198305-198707

15100CSEAL(FOR OIL PUMP)

main15165-64010i1C..CE70198210-198505

main90029-21007i1C..CE70198505-198707

sub90029-21020

main90311-32001i4A#..AE71198305-198707

sub90311-32018

15104STRAINER SUB-ASSY, OIL

main15104-15080i4A#..AE71198305-198707

sub15104-15090

main15104-64010i1C..CE70198210-198508

main15104-64030i1C..CE70198508-198707

sub15104-64050

15115COVER, OIL PUMP

main15012-13010i4K#..KE70197908-198508

sub15012-13030

main15012-13030i4K#..KE70198508-198707

main15012-25020i2T#,3T#..TE7#197908-198502

main15115-15010i4A#..AE71198305-198511

AISIN

main15115-15020i4A..AE71198511-198707

AISIN

main15115-15030i4A..AE71198505-198707

TOYODA

sub15115-16060

15120BODY SUB-ASSY, OIL PUMP

main15101-15020i4A..AE71198511-198707

AISIN

main15101-15030i4A..AE71198505-198707

TOYODA

main15120-15011i4A#..AE71198305-198511

AISIN

15121GEAR, OIL PUMP DRIVE

main15121-15010i4A#..AE71198305-198511

AISIN

main15121-15030i4A..AE71198505-198707

TOYODA

sub15103-15H00

15122GEAR, OIL PUMP DRIVEN

main15122-15010i4A#..AE71198305-198511

AISIN

main15122-15030i4A..AE71198505-198707

TOYODA

sub15103-15H00

15131VALVE, OIL PUMP RELIEF

main15131-15030i4A..AE71198505-198707

TOYODA

main15131-22010i1C..CE70197908-198502

main15131-24010i4A#..AE71197908-198707

AISIN

main15131-64020i1C..CE70198212-198707

15132SPRING, OIL PUMP RELIEF VALVE

main15132-15030i4A..AE71198505-198707

TOYODA

main15132-40010i4A#..AE71197908-198707

AISIN

main15132-76011i1C..CE70198210-198707

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-13010i4K#..KE70197908-198707

main15135-15010i4A#..AE71198305-198707

AISIN

main15135-15030i4A..AE71198505-198707

TOYODA

15149GASKET, OIL STRAINER FLANGE

main15149-15010i4A#..AE71198305-198707

sub15149-15011

15193GASKET, OIL PUMP

main15193-64021i1C..CE70198210-198707

sub15193-64022

main15197-15011i4A#..AE71198305-198707

sub15197-15012

9011606049

main90116-06049

9015160006

main90151-60006

9017906070

main90179-06070

9151160825

main91511-60825

9151160835

main91511-60835

9161160610

main91611-60610

9322016014

main93220-16014

9615101500

main96151-01500

22 parts on this diagram · 6 diagrams in section
