HEATING & AIR CONDITIONING - COOLER UNIT

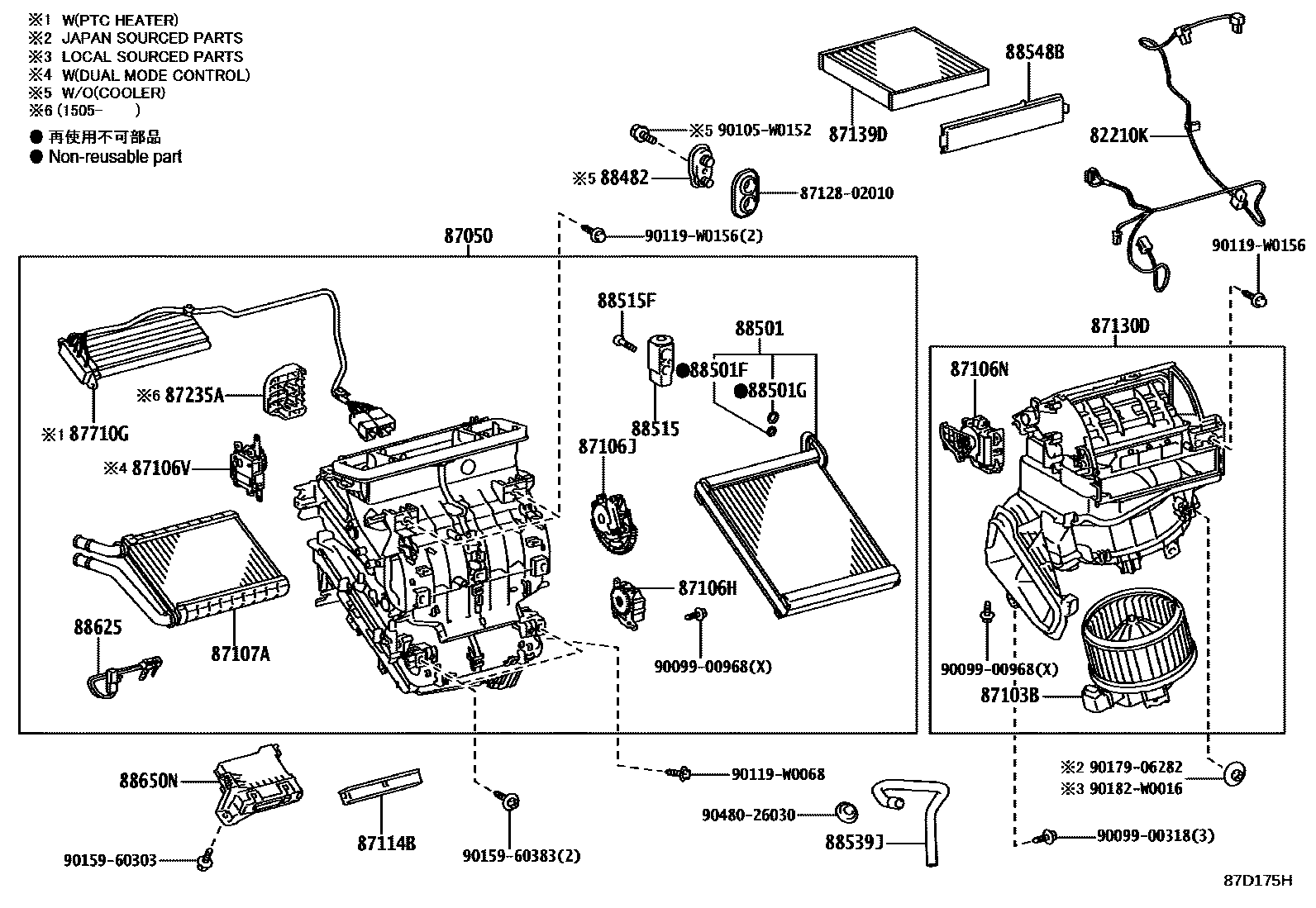

Parts diagram
82210KHARNESS ASSY, AIR CONDITIONER
main82212-02010i201607
main82212-02020i201607
main82212-02050supersedes 82212-02010i201210-201505
LIGHT GRADE
main82212-02060supersedes 82212-02020i201210-201505
LIGHT GRADE
87050RADIATOR ASSY, AIR CONDITIONER
main87050-02F70i201210-201505
REFRIGERANT GAS TYPE=R-134A&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)
main87050-02Q60i201210-201505
LIGHT GRADE
main87050-02R70i201607
AIR CONDITIONER-AUTO(SINGLE MODE)
main87050-02R80i201607
AIR CONDITIONER-AUTO(SINGLE MODE)
main87050-02S10i201607
main87050-02S21i201607
main87050-02S70supersedes 87050-02S80i201607
AIR CONDITIONER-AUTO(SINGLE MODE)
main87050-02U00supersedes 87050-02U10i201607
LIGHT GRADE
main87050-05690i201505
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT
main87050-05731i201210-201505
main87050-05761supersedes 87050-05810i201210-201505
COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE)
main87050-02800i201306-201505
REFRIGERANT GAS TYPE=R-134A&HIGH GRADE&ADDITIONAL HEATER-WITH(PTC HEATER)
main87050-02830i201210-201505
HIGH GRADE
main87050-02890i201210-201505
HIGH GRADE
main87050-02A00i201210-201505
HIGH GRADE&ADDITIONAL HEATER-WITH(EXHAUST HEATER & PTC HEATER)
main87050-02E60supersedes 87050-02G10i201210-201505
HIGH GRADE
main87050-02M10supersedes 87050-02L90i201210-201505
GERMANY SPEC&SUB COLD AREA SPEC
main87050-02M20supersedes 87050-02M00i201210-201505
GERMANY SPEC&SUB COLD AREA SPEC
main87050-02U20i201505
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT
main87050-02U30supersedes 87050-02Q70i201505
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT
main87050-02U60i201505
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT
main87050-02U70i201607
COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE)
main87050-02U80supersedes 87050-02V10i201607
GERMANY SPEC&SUB COLD AREA SPEC
main87050-02U90i201505
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT&COLD AREA SPEC
main87050-02V20supersedes 87050-02M00i201505
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT
main87050-02V30supersedes 87050-02V10i201607
GERMANY SPEC&SUB COLD AREA SPEC
main87050-02V40supersedes 87050-02M00i201505
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT&COLD AREA SPEC
main87050-05700i201505
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT
main87050-05771i201210-201505
ADDITIONAL HEATER-WITH(EXHAUST HEATER & PTC HEATER)
main87050-05780supersedes 87050-05720i201505
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT&COLD AREA SPEC
main87050-05790i201505
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT
main87050-05820i201505
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT
main87050-05840i201505
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT
87103BMOTOR SUB-ASSY, BLOWER W/FAN
main87103-02130i201607
main87103-02150i201607
main87103-05050supersedes 87103-02130i201607
LIGHT GRADE
main87103-05060supersedes 87103-02150i201210-201505
LIGHT GRADE
87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)
main87106-02270i201607
main87106-05040supersedes 87106-02270i201607
LIGHT GRADE
87106JSERVO SUB-ASSY, DAMPER(FOR MODE)
main87106-02140i201210-201505
87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
main87106-02160i201505
main87106-02180i201210-201505
87106VSERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2)
main87106-02280i201210-201505
HIGH GRADE&ADDITIONAL HEATER-WITH(PTC HEATER)
87107AUNIT SUB-ASSY, HEATER RADIATOR
main87107-02150i201210-201505
87114BCOVER, HEATER
main87114-02010i201505
COLD AREA SPEC
87130DBLOWER ASSY
main87130-02A80i201607
main87130-02A90i201701
main87130-02B00i201701
main87130-02B10i201607
main87130-05171supersedes 87130-02271i201210-201505
LIGHT GRADE
main87130-05181i201210-201505
main87130-05191supersedes 87130-05201i201210-201505
LIGHT GRADE
main87130-05201supersedes 87130-02311i201210-201505
REFRIGERANT GAS TYPE=R-134A&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)
main87130-02281i201505
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT
main87130-02321i201505
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT
87139DELEMENT, AIR REFINER
main87139-0D070i201210-201505
POLLEN FILTER
main87139-50100i201210-201505
*DPF
87235ABRACKET, HEATER COVER
main87235-05010i201505
87710GQUICK HEATER ASSY
main87710-02070i201210-201505
REFRIGERANT GAS TYPE=R-134A&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)
main87710-02100i201210-201505
main87710-02020i201505
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT&COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE)
88482CAP, COOLER
main88482-26040
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
main88501-02202supersedes 88501-02290i201505
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT
main88501-02300i201210-201505
88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
main90068-14037supersedes 90099-14120i201505
ID=10.8,OD=15.6,EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT&COLD AREA SPEC
main90099-14120i201210-201505
ID=10.8,OD=15.6
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
main90068-14038supersedes 90099-14121i201210-201505
ID=13.4,OD=18.2,LIGHT GRADE
main90099-14121i201210-201505
ID=13.4,OD=18.2
88515VALVE, COOLER EXPANSION
main88515-02500i201210-201505
main88515-02520i201210-201505
main88515-48090i201607
AIR CONDITIONER-AUTO(SINGLE MODE)
main88515-64010i201607
main88515-68010i201505
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT
88515FBOLT(FOR COOLER EXPANSION VALVE)
main90099-04542×2i201210-201505
HIGH GRADE
main90099-04597×2i201210-201505
COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE)
sub90068-04062
88539JHOSE, DRAIN COOLER
main88539-02250i201505
main88539-02260i201505
88548BCASE, AIR FILTER
main88548-02060i201505
main88548-02070i201505
88625THERMISTOR, COOLER, NO.1
main88625-02110i201505
88650NAMPLIFIER ASSY, AIR CONDITIONER
main88650-02A20supersedes 88650-02A40i201306-201505
AIR CONDITIONER-AUTO(SINGLE MODE)
main88650-02A70supersedes 88650-02A80i201306-201505
LIGHT GRADE
main88650-02D70supersedes 88650-02D90i201210-201306
AIR CONDITIONER-AUTO(SINGLE MODE)
main88650-02E00supersedes 88650-02E10i201210-201306
LIGHT GRADE
main88650-02J80supersedes 88650-02K20i201607-201706
AIR CONDITIONER-AUTO(SINGLE MODE)
sub88650-02M50
main88650-02J90i201607-201706
main88650-02K30supersedes 88650-02K40i201607-201706
LIGHT GRADE
main88650-02A30i201306-201405
HIGH GRADE&AIR CONDITIONER-AUTO(DUAL MODE)
main88650-02D80i201210-201306
HIGH GRADE&AIR CONDITIONER-AUTO(DUAL MODE)
main88650-02E70i201505-201607
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT
main88650-02E80i201505-201607
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT
main88650-02E90i201505-201607
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT
main88650-02F00i201505-201607
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT
main88650-02F10i201505-201607
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT
main88650-02M60supersedes 88650-02M50i201707
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT
main88650-02M80supersedes 88650-02M70i201707
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT
main88650-02N10supersedes 88650-02N00i201707
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT
main88650-02N30supersedes 88650-02N20i201707
EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT
8712802010GROMMET, HEATER
main87128-02010
9009900318
main90099-00318
9009900968
main90099-00968
90105W0152
main90105-W0152
90119W0068
main90119-W0068
90119W0156
main90119-W0156
9015960303
main90159-60303
9015960383
main90159-60383
9017906282
main90179-06282
90182W0016
main90182-W0016
9048026030
main90480-26030

34 parts on this diagram · 2 diagrams in section
