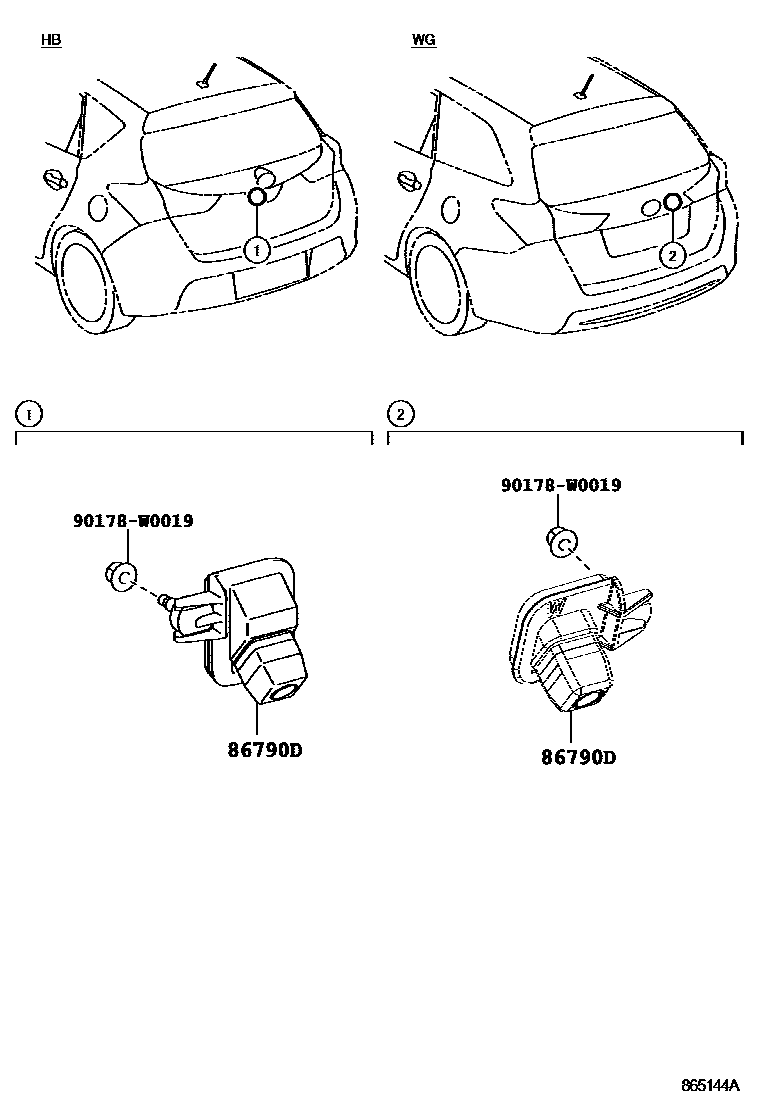

CAMERA & REAR MONITOR DISPLAY

86790DCAMERA ASSY, TELEVISION, RR

main86790-02030iADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(G,N)201210-201505

main86790-02040iADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N)201306-201505

main86790-02120iNDE180,NRE18#,ZRE185,ZWE186..HB..(G,N,S)201505-201804

AUDIO-RADIO LESS & 6SPEAKER

main86790-02120iNDE180,NRE18#,ZRE185,ZWE186..HB..(G,N,S)201505-201804

AUDIO-RADIO LESS & WITHOUT(SPEAKER)

main86790-02130iNDE180,NRE18#,ZRE185,ZWE186..WG..(G,N,S)201505-201804

AUDIO-RADIO LESS & WITHOUT(SPEAKER)

main86790-02130iWWE185..WG201505-201804

AUDIO-RADIO LESS & 6SPEAKER

90178W0019

main90178-W0019

2 parts on this diagram · 1 diagram in section
