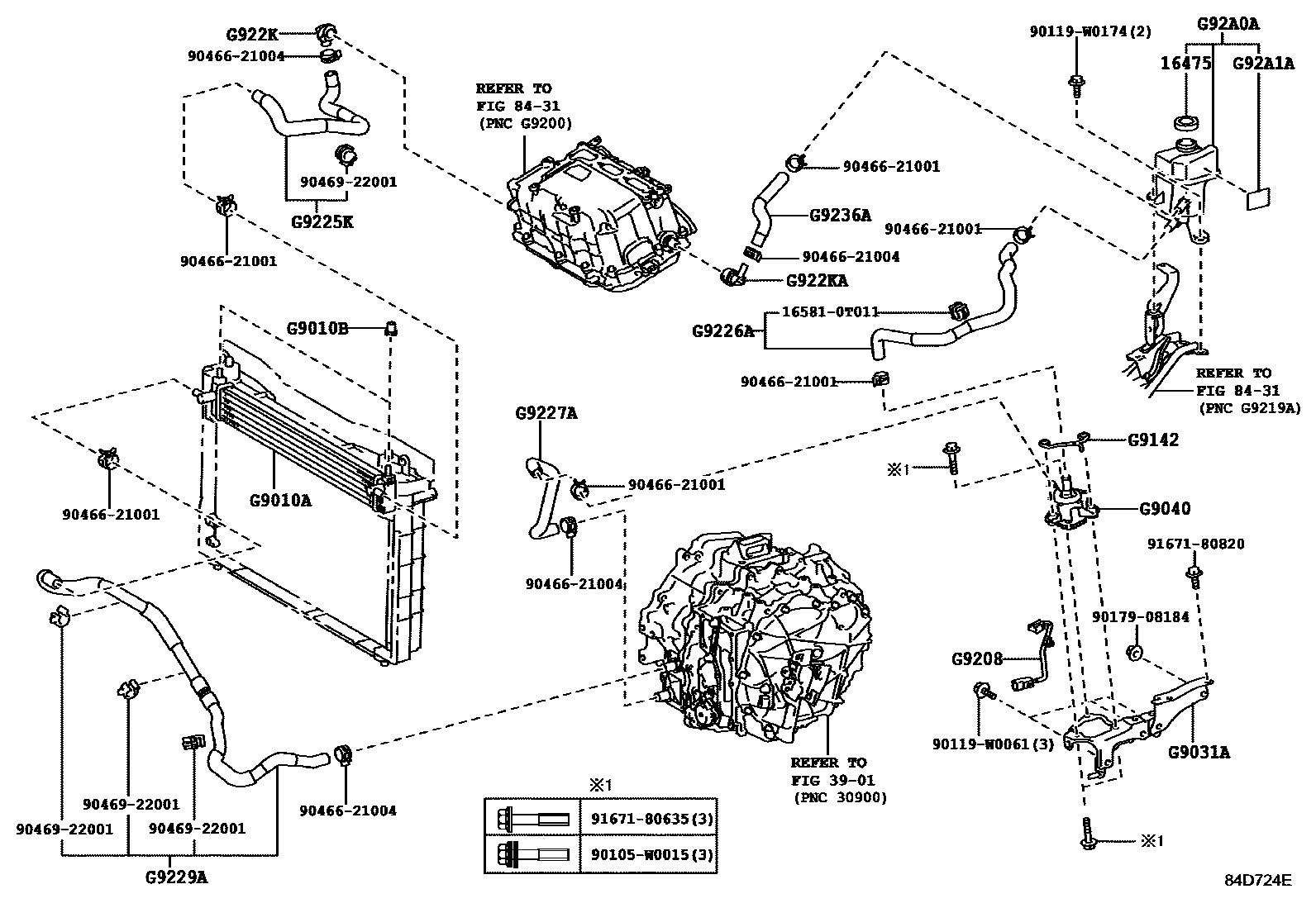

INVERTER COOLING

16475CAP, RESERVE TANK

main16475-28140i2ZRFXE..ZWE186201608

main16475-37010i2ZRFXE..ZWE186201210-201410

main16475-37011i2ZRFXE..ZWE186201410-201505

3901

8431

G9010ARADIATOR ASSY

mainG901002010iZWE186201505

G9010BCUSHION, INVERTER RADIATOR

main16716-37010×2iZWE186201210-201505

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG903147010iZWE186201210-201505

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904052010iZWE186201210-201505

G9142BRACKET, HYBRID WATER PUMP, NO.2

mainG914247010iZWE186201210-201505

G9208WIRE SUB-ASSY, INVERTER

mainG920847080iZWE186201210-201505

G9225KHOSE, INVERTER COOLING, NO.1

mainG922502010iZWE186201210-201505

G9226AHOSE, INVERTER COOLING, NO.2

mainG922602010iZWE186201210-201505

mainG922602011iZWE186201606

G9227AHOSE, INVERTER COOLING, NO.3

mainG922702010iZWE186201505

G9229AHOSE, INVERTER COOLING, NO.5

mainG922912010iZWE186201210-201505

G922KCONNECTOR, HYBRID WATER HOSE

mainG922K47011iZWE186201210-201505

G922KACONNECTOR, HYBRID WATER HOSE, NO.1

mainG922K47011iZWE186201210-201505

G9236AHOSE, INVERTER COOLING, NO.6

mainG923647031iZWE186201505

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H002010iZWE186201210-201409

(L)

mainG91H002011iZWE186201505

(L)

mainG92A076010iZWE186201210-201409

(J)

mainG92A076011iZWE186201505-201607

(J)

mainG92A076012iZWE186201608

(J)

G92A1ALABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A176010iZWE186201210-201505

165810T011CLAMP, HOSE(FOR WATER HOSE)

main16581-0T011

90105W0015

main90105-W0015

90119W0061

main90119-W0061

90119W0174

main90119-W0174

9017908184

main90179-08184

9046621001

main90466-21001

9046621004

main90466-21004

9046922001

main90469-22001

9167180635

main91671-80635

9167180820

main91671-80820

28 parts on this diagram · 1 diagram in section
