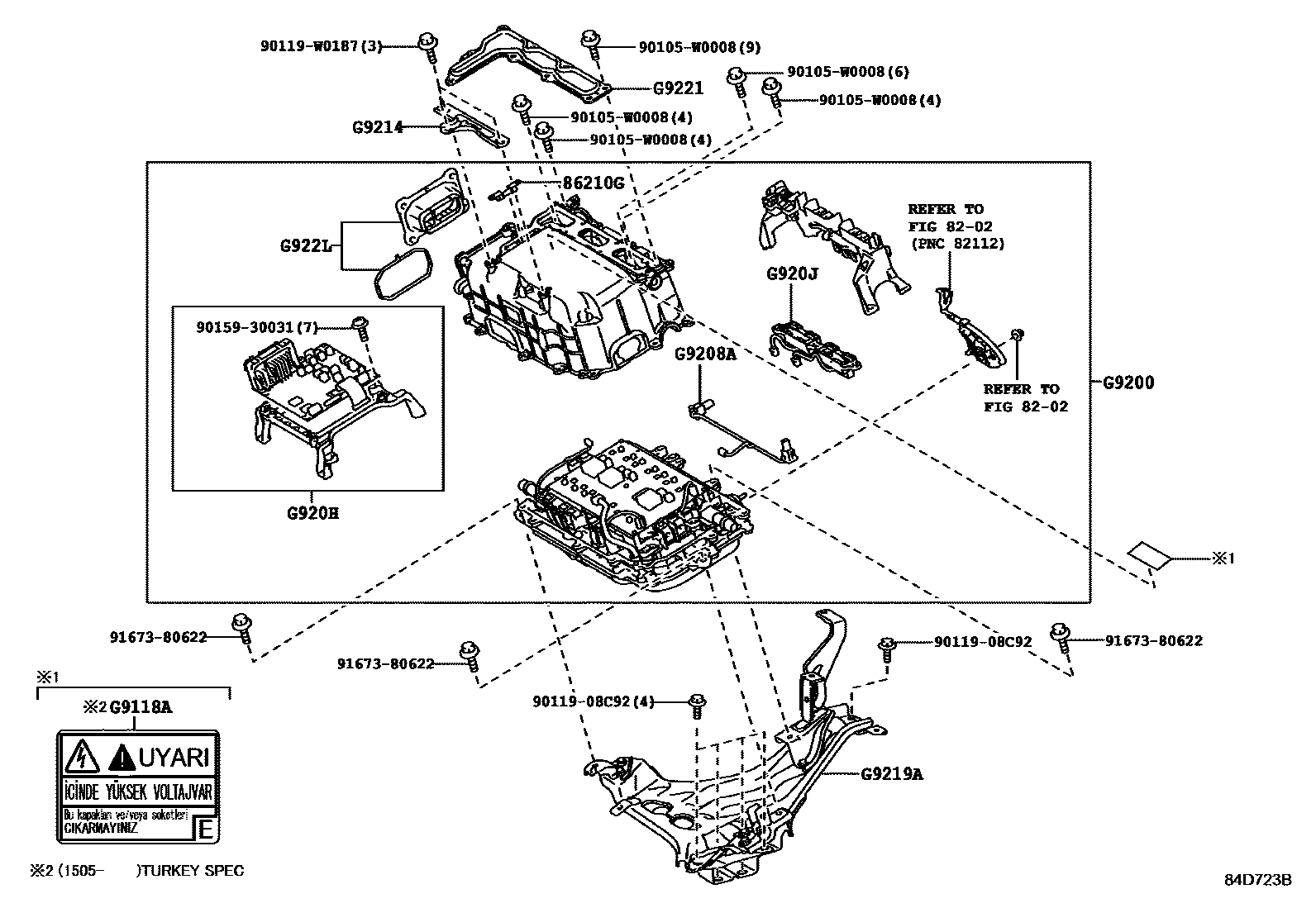

HEV INVERTER

0001 1INVERTER ASSY 0002 1KIT PARTS 0003 1

8202

86210GFUSE, HIGH VOLTAGE

main90982-11050iZWE186201210-201505

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

G9200INVERTER ASSY, W/CONVERTER

mainG920049025iZWE186201210-201505

G9208AWIRE SUB-ASSY, INVERTER

mainG920847090iZWE186201210-201505

G920HCOMPUTER SUB-ASSY, MOTOR GENERATOR CONTROL

mainG920H47030iZWE186201210-201810

subG920H-47150

G920JSENSOR SUB-ASSY, INVERTER CURRENT

mainG920J52010iZWE186201210-201505

G9214BRACKET, INVERTER, NO.1

mainG921402010iZWE186201210-201505

G9219ABRACKET, INVERTER TRAY

mainG911047011iZWE186201210-201308

subG9110-47030

mainG911047030iZWE186201309-201505

G9221COVER, INVERTER

mainG902247041iZWE186201210-201811

G922LCOVER, INVERTER SIGNAL CONNECTOR

mainG922L47010iZWE186201210-201505

90105W0008

main90105-W0008

9011908C92

main90119-08C92

90119W0187

main90119-W0187

9015930031

main90159-30031

9167380622

main91673-80622

16 parts on this diagram · 3 diagrams in section
