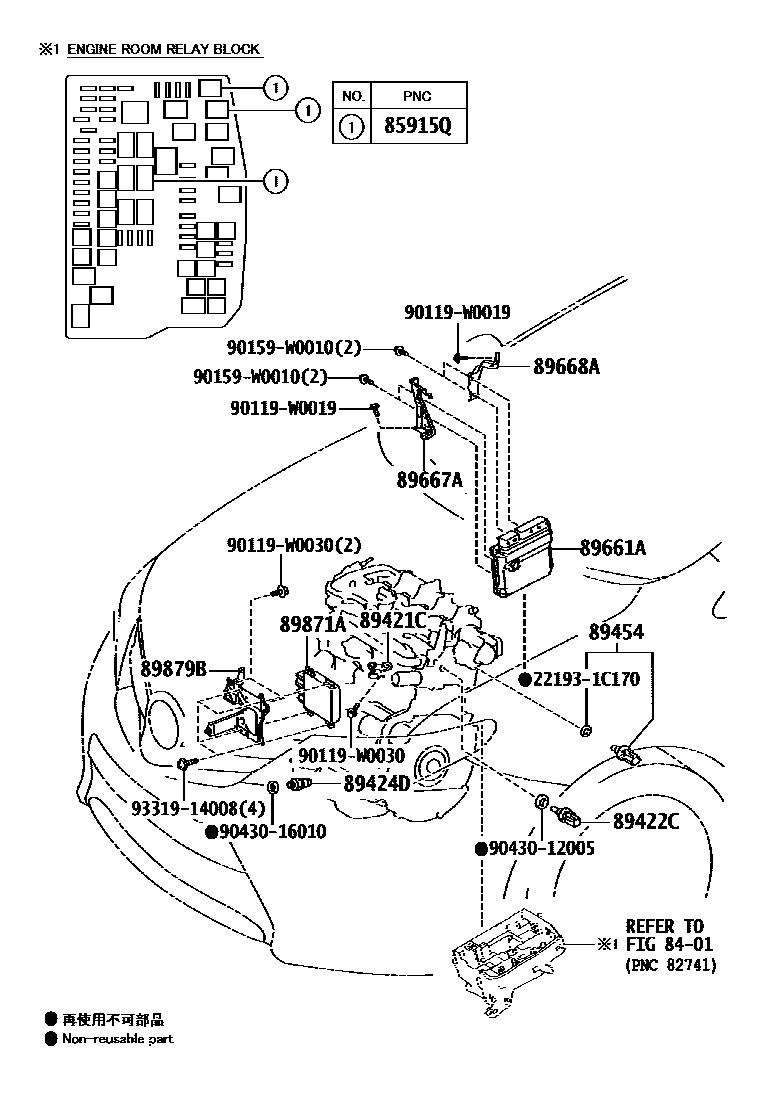

ELECTRONIC CONTROLED DIESEL (ECD)
8401
85915QRELAY, COMPUTER (FOR DIESEL)
sub90987-02027
89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE
89424DSENSOR, INLET AIR TEMPERATURE
89454SENSOR, FUEL TEMPERATURE
89661ACOMPUTER, ENGINE CONTROL
sub89661-0Z601
sub89661-0Z741
sub89661-0Z761
START & STOP SYSTEM PACKAGE&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.736
N1 PACKAGE&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.944
sub89661-0ZK81
BOSCH
sub89661-0ZL21
sub89661-0ZL22
sub89661-0ZM01
89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1
89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2
89871ADRIVER, INJECTOR
89879BBRACKET, INJECTOR DRIVER
221931C170RING, O(FOR LEVER CONNECTING PIN)
main22193-1C170
90119W0019
main90119-W0019
90119W0030
main90119-W0030
90159W0010
main90159-W0010
9043012005
main90430-12005
9043016010
main90430-16010
9331914008
main93319-14008
18 parts on this diagram · 3 diagrams in section
