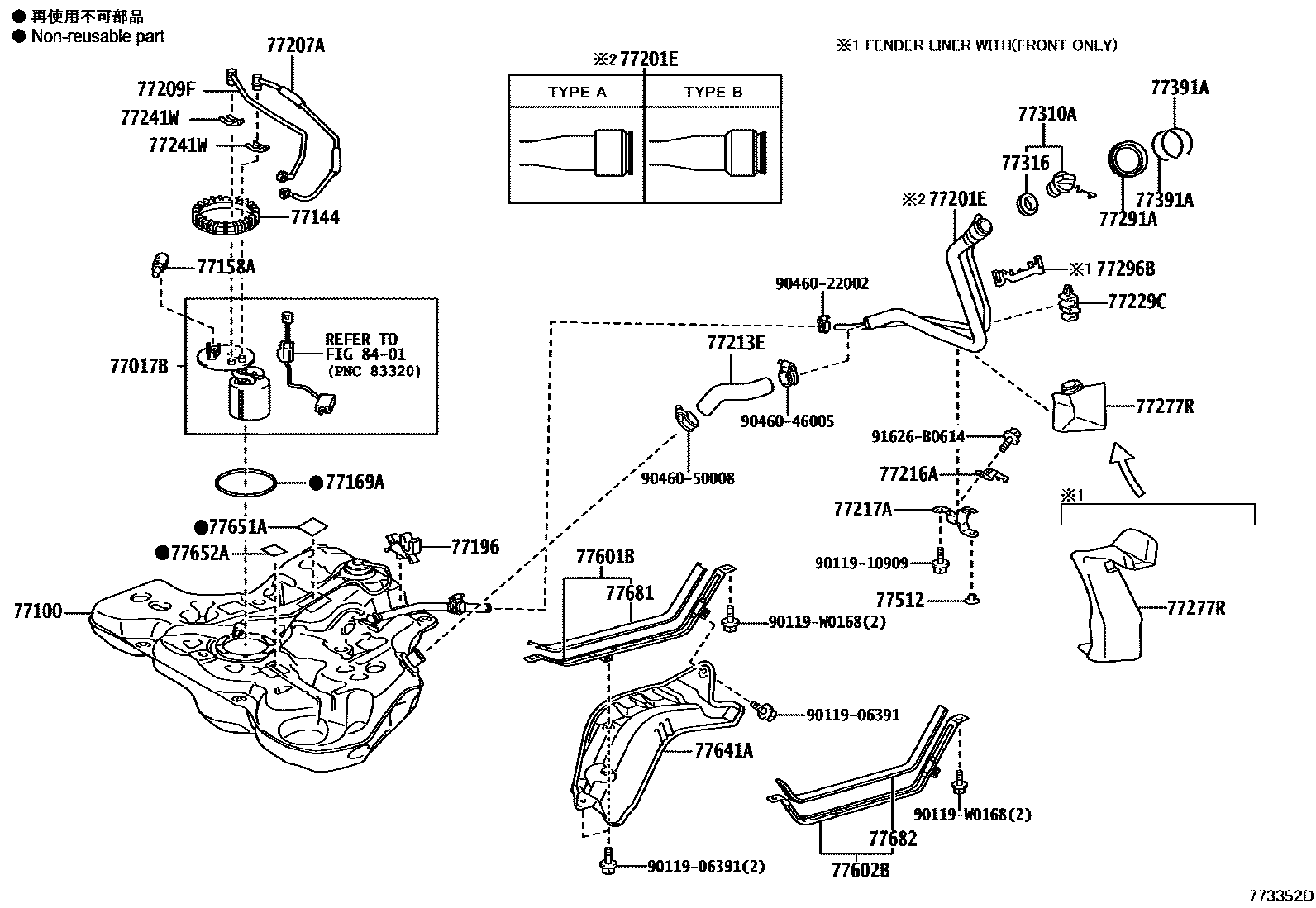

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TANK 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL TUBE 0010 1FUEL TUBE 0011 1FUEL TUBE 0012 1FUEL TUBE 0013 1FUEL LID OPENER 0014 1FUEL LID OPENER

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77010-02060iADE186,NDE180201210-201501

sub77010-02061

main77010-02061iADE186,NDE180201502-201505

77100TANK ASSY, FUEL

main77001-02370iNRE185..CVT201505

LIGHT GRADE

main77001-02370iNRE185..CVT201210-201505

LIGHT GRADE&START & STOP SYSTEM PACKAGE

main77001-02370iNRE180..RHD201401-201505

main77001-02390iNDE180201210-201804

main77001-02560iZWE186201210-201505

main77001-02580iNRE185..6F201505

START & STOP SYSTEM PACKAGE

main77001-02580iNRE180..RHD201210-201401

77144RETAINER, FUEL PUMP GAUGE

main77144-02110iZRE185;NRE18#..6F201505

TYPE A:REFER ILLUST.

main77144-02110iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

main77144-02110iNRE185..CVT;NDE180,ZWE186201505

LIGHT GRADE,TYPE A:REFER ILLUST.

main77144-02110iNRE185..CVT;NDE180,ZWE186201505

START & STOP SYSTEM PACKAGE

main77144-0H010iZRE185;NRE18#..6F201512

LIGHT GRADE,TYPE B:REFER ILLUST.

main77144-0H010iNRE185..CVT201512

TYPE B:REFER ILLUST.

77158ASUPPORT, TANK SUCTION TUBE

main77158-0D020iADE186,NDE180201210-201804

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0D030iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-02050iADE186,NDE180,NRE180,ZRE185201210-201804

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-02490iNRE18#,ZRE185,ZWE186201505

main77201-02490iNRE180,ZRE185,ZWE186201305-201505

TYPE B:REFER ILLUST.

main77201-02500iNDE180201505-201804

main77201-02500iADE186,NDE180201305-201505

TYPE B:REFER ILLUST.

main77201-12840iNRE180,ZRE185,ZWE186201210-201306

TYPE A:REFER ILLUST.

main77201-12860iADE186,NDE180201210-201306

TYPE A:REFER ILLUST.

77207ATUBE SUB-ASSY, FUEL RETURN

main77204-02050iADE186,NDE180201210-201505

main77204-02120iNDE180201505

main77204-05050iWWE185201505-201804

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02090iWWE185201210-201804

main77209-02190iZWE186201210-201505

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-02220iNDE180,NRE18#,ZRE185,ZWE186201306-201804

(L)

main77213-20190iADE186,NDE180,NRE180,ZRE185,ZWE186201306-201804

(J)

main77213-20190iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201306

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-02170iADE186,NDE180,NRE180,ZRE185,ZWE186201305-201505

PNC 77201E=TYPE B

main77216-02170iWWE185201505-201804

main77216-12190iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201306

PNC 77201E=TYPE A

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-02140iADE186,NDE180,NRE180,ZRE185,ZWE186201305-201505

PNC 77201E=TYPE B

main77217-02140iWWE185201505-201804

main77217-47080iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201306

PNC 77201E=TYPE A

77229CCLAMP, BREATHER TUBE

main77229-12070iNDE180,NRE18#,ZRE185,ZWE186201210-201804

77241WCLIP, TUBE JOINT

main77241-32060iADE186,NDE180201210-201505

main77241-35450iWWE185201505-201804

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12180iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-02080iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

77310ACAP ASSY, FUEL TANK

main77300-12020iNRE18#,ZRE185,ZWE186201306-201505

main77300-12030iADE186,NDE180201306-201804

main77300-20020iADE186,NDE180201210-201306

main77300-52030iNRE180,ZRE185,ZWE186201210-201306

77316GASKET, FUEL TANK CAP

main77316-52040iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

77391ARING, FUEL INLET BOX

main77391-12020iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

77512BRACKET, FUEL TANK, REAR

main77512-35140iNDE180,NRE18#,ZRE185,ZWE186201210-201804

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-02150iZRE185;NRE185..6F201210-201505

main77601-05050iNRE185..6F201505

START & STOP SYSTEM PACKAGE

main77601-05050iADE186201210-201804

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-02120iADE186201210-201804

main77602-02120iNRE185..CVT201505

START & STOP SYSTEM PACKAGE

main77602-02130iZRE185;NRE185..6F201210-201505

77641APROTECTOR, FUEL TANK, NO.1

main77641-02060iNDE180,NRE180201210-201505

main77641-02070iADE186201210-201804

main77641-02170iNRE185,ZRE185201210-201505

main77641-02180iZWE186201210-201505

77651ACUSHION, FUEL TANK, NO.1

main77651-02110iZWE186201210-201505

main77651-12070iADE186,NDE180,NRE180,ZRE185201210-201804

77652ACUSHION, FUEL TANK, NO.2

main77652-45020iADE186,NDE180201210-201804

77681SEAT, FUEL TANK BAND, RH

main77681-05010iADE186,ZRE185201210-201804

77682SEAT, FUEL TANK BAND, LH

main77681-05020iNRE185,ZRE185201210-201804

8401

9011906391

main90119-06391

9011910909

main90119-10909

90119W0168

main90119-W0168

9046022002

main90460-22002

9046046005

main90460-46005

9046050008

main90460-50008

91626B0614

main91626-B0614

36 parts on this diagram · 14 diagrams in section
