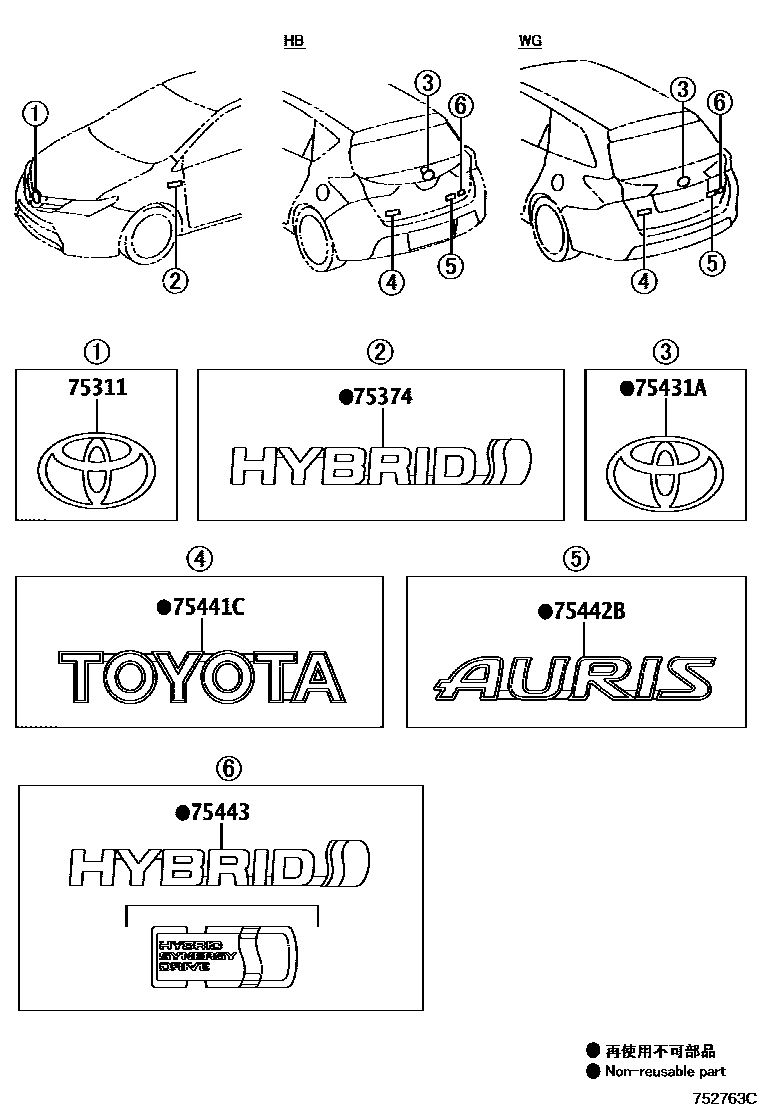

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75301-02020iADE186,NDE180,NRE180,ZRE185201210-201505

main75301-02150iWWE185201505-201804

main75301-02170iZWE186201505

main75301-12440iZWE186201210-201505

main75301-02110iNRE180,ZRE185..LHD..D201210-201306

RUSSIA SPEC

main75301-12450iZWE186..LHD..HB201210-201505

RUSSIA SPEC

75374EMBLEM, SIDE PANEL

main75374-12030iZWE186201505

RH

main75374-12040iZWE186201210-201505

LH

main75374-12010iZWE186..LHD..HB201210-201505

RUSSIA SPEC,RH

main75374-12020iZWE186..LHD..HB201210-201505

RUSSIA SPEC,LH

75431AEMBLEM, BACK DOOR, NO.1

main75403-12040iZWE186..WG201505

main75403-12070iZWE186..HB201505

main75431-0D050iWWE185..WG201505-201804

main90975-02069iNDE180,NRE18#,ZRE185..HB201505

main75403-12050iZWE186..LHD..HB201210-201505

RUSSIA SPEC

main75403-12080iZWE186..LHD..HB201505-201707

RUSSIA SPEC

main90975-02104iNRE180,ZRE185..LHD..HB201505-201707

RUSSIA SPEC

main90975-02128iNRE180,ZRE185..LHD..HB201210-201505

RUSSIA SPEC

75441CPLATE, BACK DOOR NAME

main75441-02110supersedes 75441-02110iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

TOYOTA

main75441-12A30iNRE180,ZRE185,ZWE186..LHD..HB201505-201707

TOYOTA,RUSSIA SPEC

75442BPLATE, BACK DOOR NAME, NO.2

main75442-02140supersedes 75442-02140iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

AURIS

main75442-12A80iNRE180,ZRE185,ZWE186..LHD..HB201505-201707

AURIS,RUSSIA SPEC

75443PLATE, BACK DOOR NAME, NO.3

main75443-12B00iZWE186201210-201505

main75444-02C00iZWE186201505

HYBRID

main75444-02C10iZWE186..LHD..HB201505-201707

HYBRID,RUSSIA SPEC

6 parts on this diagram · 1 diagram in section
