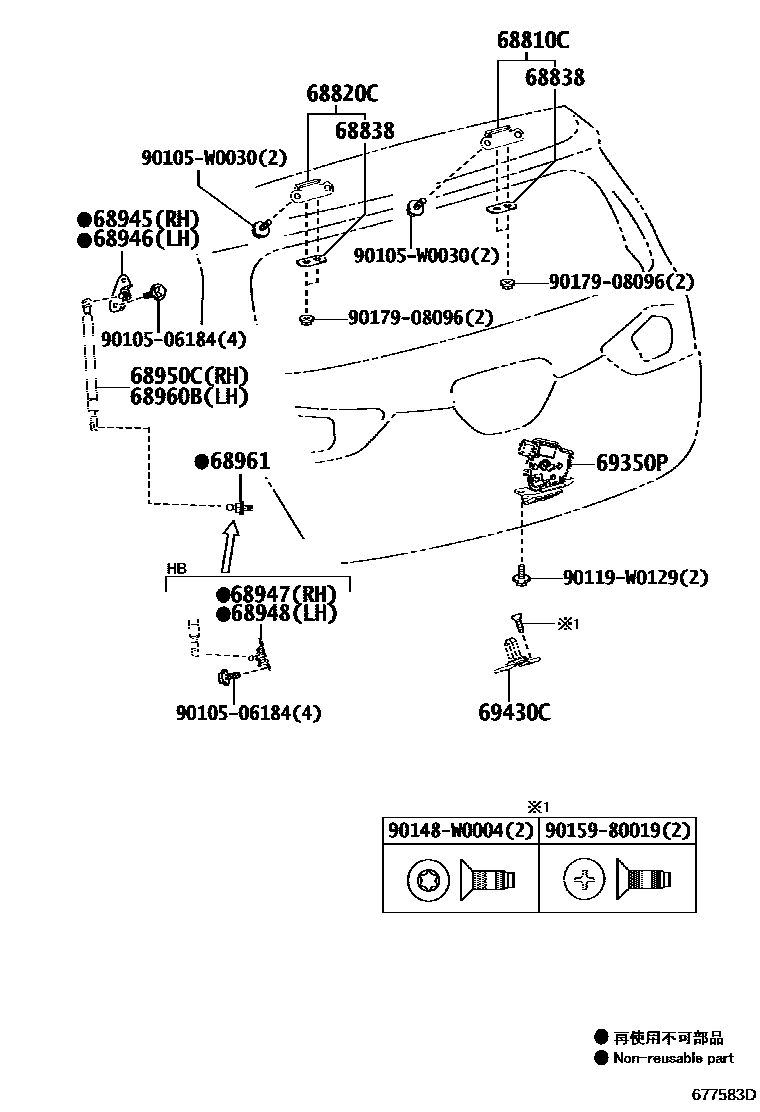

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-02020iWWE185201505-201804

sub68810-21051

68820CHINGE ASSY, BACK DOOR, LH

main68810-02020iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

sub68810-21051

68838PAD, BACK DOOR HINGE, NO.1

main68838-05040×2iNDE180,NRE18#,ZRE185,ZWE186201505

T=1.0

main68838-05050×2iWWE185201505-201804

T=1.6

main68838-05060×2iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-12050iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-12020iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-12050iWWE185..HB201505-201804

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-12050iWWE185..HB201505-201804

68950CSTAY ASSY, BACK DOOR, RH

main68950-02130iADE186,NDE180,NRE180,ZRE185,ZWE186..HB201210-201505

main68950-02140iADE186,NDE180,NRE180,ZRE185,ZWE186..WG201306-201505

main68950-02170iNDE180,NRE18#,WWE185,ZRE185,ZWE186..WG201505

main68950-02180iWWE185..HB201505-201804

68960BSTAY ASSY, BACK DOOR, LH

main68960-02120iADE186,NDE180,NRE180,ZRE185,ZWE186..HB201210-201505

main68960-02130iADE186,NDE180,NRE180,ZRE185,ZWE186..WG201306-201505

main68960-02160iNDE180,NRE18#,WWE185,ZRE185,ZWE186..WG201505

main68960-02170iWWE185..HB201505-201804

68961BOLT, BACK DOOR STAY

main68961-02050×2iADE186,NDE180,NRE180,ZRE185,ZWE186..WG201306-201505

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-02090iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-02030iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

9010506184

main90105-06184

90105W0030

main90105-W0030

90119W0129

main90119-W0129

90148W0004

main90148-W0004

9015980019

main90159-80019

9017908096

main90179-08096

18 parts on this diagram · 1 diagram in section
