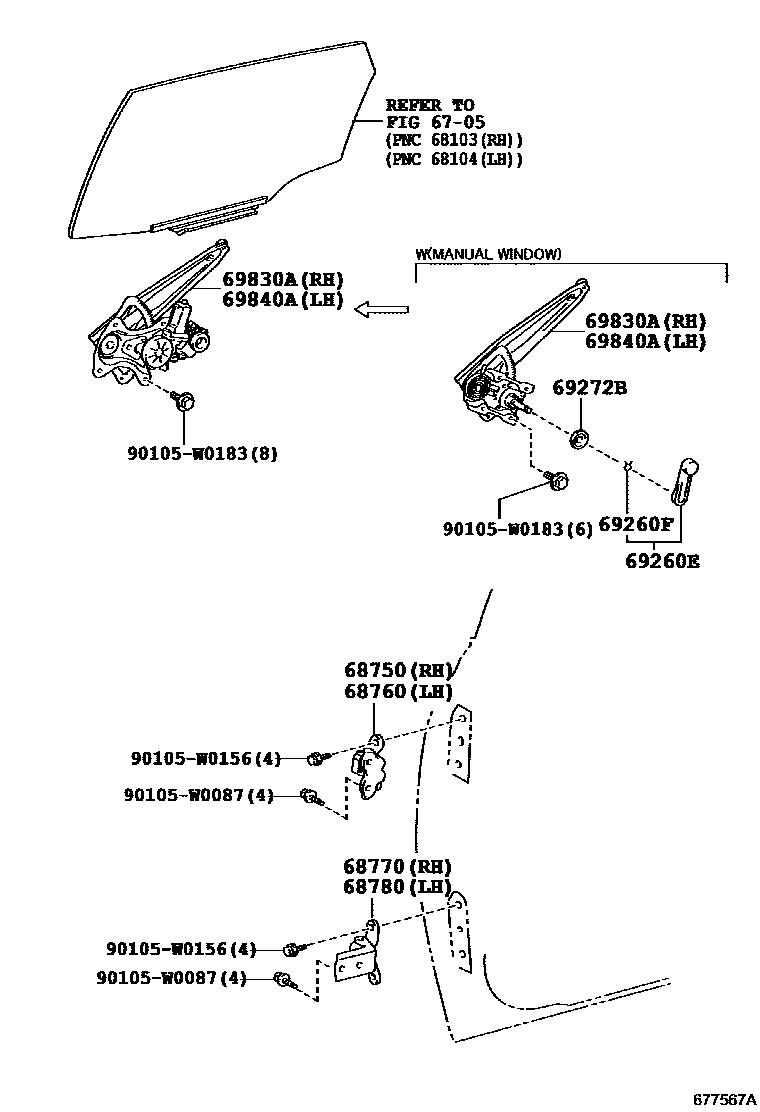

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0H010iADE186,NDE180,NRE180,ZRE185,ZWE186¥2,030201210-201804

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0H010iADE186,NDE180,NRE180,ZRE185,ZWE186¥2,030201210-201804

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0H010iADE186,NDE180,NRE180,ZRE185,ZWE186¥2,420201210-201804

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0H010iNDE180,NRE18#,ZRE185,ZWE186¥2,410201210-201804

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-02020-C0iZWE186..RHD..N201210-201504

LIGHT GRADE,BLACK,TRIM2#

sub69260-02020¥1,600

sub69260-02021

main69260-02020-C0iZWE186..RHD..N201210-201504

POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN),BLACK,TRIM2#

sub69260-02020¥1,600

sub69260-02021

main69260-02020-C0iZWE186..RHD..N201210-201504

POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN),BLACK,TRIM2#

sub69260-02020¥1,600

sub69260-02021

main69260-02020-C0iZWE186..RHD..N201210-201504

POWER WINDOW-FRONT & REAR(DRIVER ONE-TOUCH UP/DOWN),BLACK,TRIM2#

sub69260-02020¥1,600

sub69260-02021

main69260-02020-C0iNDE180,NRE180,ZRE185..RHD..N201210-201504

BLACK,TRIM2#

sub69260-02020¥1,600

sub69260-02021

main69260-02020-C1iNDE180,NRE180,ZRE185,ZWE186..D201505-201601

EU BLACK,TRIM2#

sub69260-02020¥1,600

sub69260-02021

main69260-02020-C1iNDE180,NRE180,ZRE185,ZWE186..D201505-201601

RUSSIA SPEC,EU BLACK,TRIM2#,4#

sub69260-02020¥1,600

sub69260-02021

main69260-02020-C1iNDE180,NRE180,ZRE185,ZWE186..D201505-201601

RUSSIA SPEC,EU BLACK,TRIM2#

sub69260-02020¥1,600

sub69260-02021

main69260-02020-C1iNDE180,NRE180,ZRE185,ZWE186..D201505-201601

REFRIGERANT GAS TYPE=R-134A,EU BLACK,TRIM2#,4#

sub69260-02020¥1,600

sub69260-02021

main69260-02020-C1iNDE180,NRE180,ZRE185,ZWE186..D201505-201601

REFRIGERANT GAS TYPE=R-134A,EU BLACK,TRIM2#

sub69260-02020¥1,600

sub69260-02021

main69260-02020-C1iNDE180,NRE180,ZRE185,ZWE186..D201505-201601

LIGHT GRADE,EU BLACK,TRIM2#,4#

sub69260-02020¥1,600

sub69260-02021

main69260-02020-C1iNDE180,NRE180,ZRE185,ZWE186..D201505-201601

LIGHT GRADE,EU BLACK,TRIM2#

sub69260-02020¥1,600

sub69260-02021

main69260-02021-C1iNDE180,NRE180,ZRE185,ZWE186..D201601

EU BLACK,TRIM2#

main69260-02021-C1iNDE180,NRE180,ZRE185,ZWE186..D201601

REFRIGERANT GAS TYPE=R-134A,EU BLACK,TRIM2#

main69260-02021-C1iNDE180,NRE180,ZRE185,ZWE186..D201601

LIGHT GRADE,EU BLACK,TRIM2#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90080-52100iZWE186..LHD..N;NDE180,NRE180,ZRE185..D201210-201505

POWER WINDOW-FRONT & REAR(DRIVER ONE-TOUCH UP/DOWN)

main90080-52100iZWE186..RHD..N201210-201505

LIGHT GRADE

main90080-52100iZWE186..RHD..N201210-201505

POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)

main90080-52100iZWE186..RHD..N201210-201505

POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN)

main90080-52100iNDE180,NRE180,ZRE185,ZWE186..D201505

REFRIGERANT GAS TYPE=R-134A

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-02022iZWE186..RHD..N¥100201210-201505

POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN)

main69268-02022iNDE180,NRE180,ZRE185..RHD..N¥100201210-201505

POWER WINDOW-FRONT & REAR(DRIVER ONE-TOUCH UP/DOWN)

main69268-02022iZWE186..RHD..N¥100201210-201505

LIGHT GRADE

main69268-02022iZWE186..RHD..N¥100201210-201505

POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)

main69268-02022iNDE180,NRE180,ZRE185,ZWE186..D¥100201505

REFRIGERANT GAS TYPE=R-134A

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-02210iZWE186..LHD..N;NDE180,NRE180,ZRE185..D201210-201505

LIGHT GRADE

main69830-02210iZWE186..LHD..N;NDE180,NRE180,ZRE185..D201210-201505

POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN)

main69830-02210iZWE186..LHD..N;NDE180,NRE180,ZRE185..D201504-201505

LIGHT GRADE&OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE

main69830-02210iNRE18#..LHD..6F..(G,N,S);NDE180,ZRE185..HB..6F..(G,S);NDE180,ZRE185..LHD..WG..6F..(G,N,S)201505

REFRIGERANT GAS TYPE=R-134A

main69830-02240iADE186,NDE180,NRE180,ZRE185..N201210-201505

POWER WINDOW-FRONT & REAR(DRIVER ONE-TOUCH UP/DOWN)

main69830-02240iZWE186..RHD..N201405-201505

main69830-02430iWWE185201505-201804

main69830-02430iZWE186..G201210-201505

POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-02210iZWE186..RHD..N201210-201505

LIGHT GRADE

main69840-02210iZWE186..RHD..N201210-201505

POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN)

main69840-02210iZWE186..LHD..G201504-201505

LIGHT GRADE&OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE

main69840-02210iNDE180,NRE180,ZRE185,ZWE186..D201505

REFRIGERANT GAS TYPE=R-134A

main69840-02240iZWE186..RHD..N201405-201505

main69840-02240iZWE186..LHD..N201210-201505

POWER WINDOW-FRONT & REAR(DRIVER ONE-TOUCH UP/DOWN)

main69840-02430iNDE180,NRE18#,ZRE185,ZWE186..G,N,S201505-201804

main69840-02430iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N201210-201505

POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)

90105W0087

main90105-W0087¥80

90105W0156

main90105-W0156¥80

90105W0183

main90105-W0183¥60

13 parts on this diagram · 1 diagram in section
