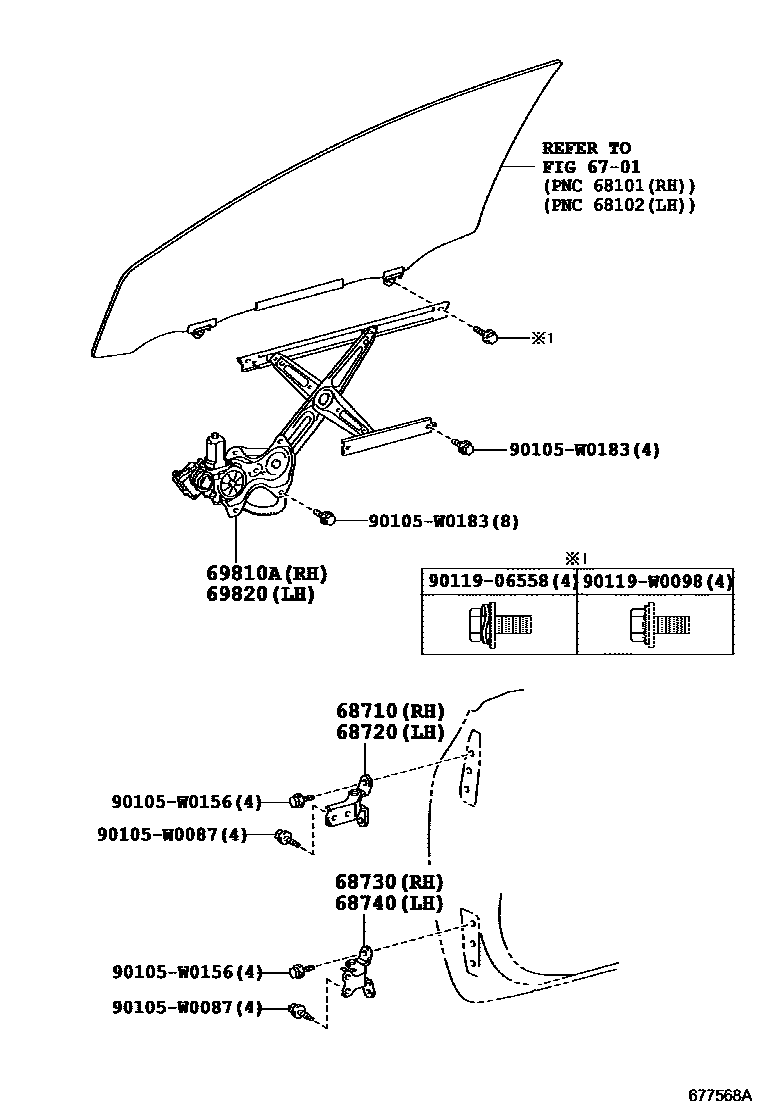

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02060iWWE185201210-201804

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02060iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02050iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02050iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-02450iNRE18#..LHD..6F..(G,N,S);NDE180,ZRE185..HB..6F..(G,S);NDE180,ZRE185..LHD..WG..6F..(G,N,S)201505

REFRIGERANT GAS TYPE=R-134A

main69810-02450iZRE185..HB..CVT..N;NDE180,ZRE185..HB..(G,S);NRE18#,ZWE186..LHD..(G,N,S);NDE180,ZRE185..LHD..WG..(G,N,S)201505

LIGHT GRADE

main69810-02450iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N)201210-201505

main69810-02480iWWE185201505-201804

main69810-02480iZWE186..LHD..G;NDE180,NRE180,ZRE185,ZWE186..RHD201210-201505

POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-02460iNDE180,NRE180,ZWE186..RHD..D201210-201505

LIGHT GRADE

main69820-02490iWWE185201210-201804

90105W0087

main90105-W0087

90105W0156

main90105-W0156

90105W0183

main90105-W0183

9011906558

main90119-06558

90119W0098

main90119-W0098

12 parts on this diagram · 1 diagram in section
