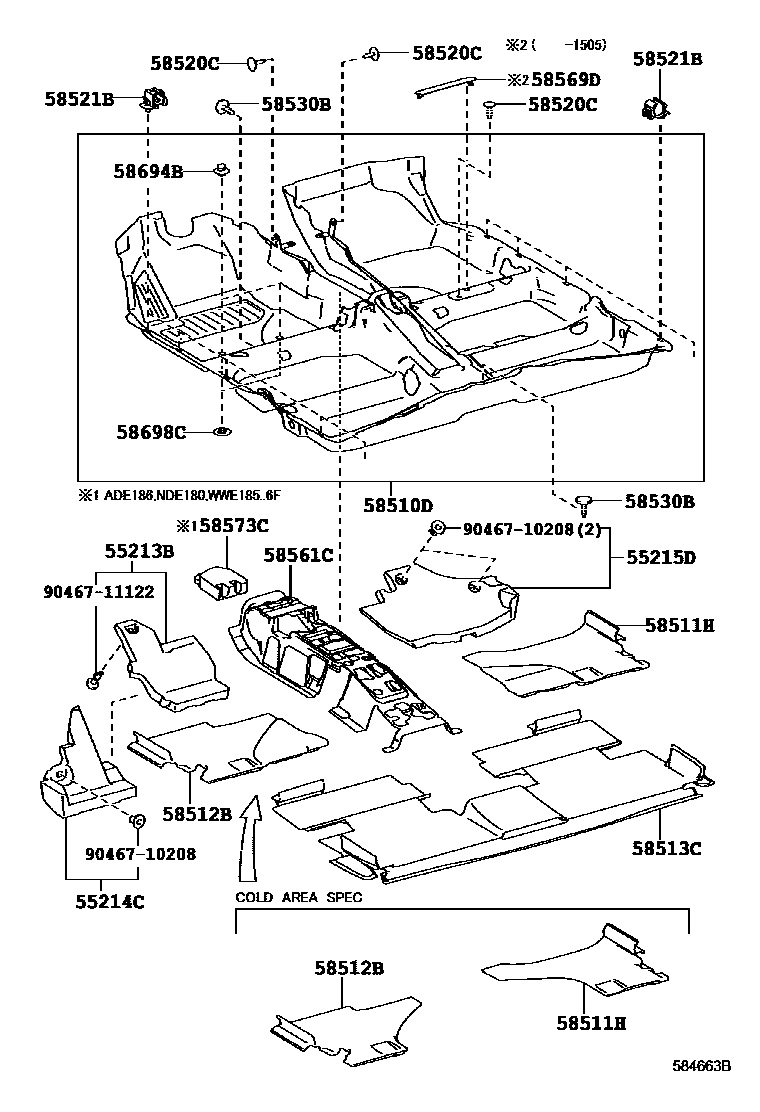

MAT & CARPET

0001 1FLOOR CARPET 0002 1FLOOR CARPET 0003 1FLOOR CARPET 0004 1FLOOR CARPET 0005 1FLOOR MAT 0006 1FLOOR MAT

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-02220iNDE180,NRE18#,ZRE185,ZWE186..RHD201505

main55213-02230iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD201210-201505

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-02010iNDE180,NRE18#,ZRE185,ZWE186..LHD201505

main55214-02020iNDE180,NRE180,ZRE185,ZWE186..RHD201210-201505

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-02010iNDE180,NRE18#,ZRE185,ZWE186..LHD201505

main55215-02020iNDE180,NRE18#,ZRE185,ZWE186..RHD201505

58510DCARPET ASSY, FLOOR, FRONT

main58510-02F60-C0iZWE186..LHD..G201210-201505

BLACK,TRIM1#,2#

main58510-02F70-C0iZWE186..RHD..G201210-201505

BLACK,TRIM1#,2#

main58510-02F80-C0iADE186,NDE180,NRE180,ZRE185..LHD201210-201505

BLACK,TRIM2#

main58510-02G10-C0iNDE180,NRE180,ZRE185..RHD201210-201505

BLACK,TRIM2#

main58510-02G30-C0iNDE180,NRE185,WWE185,ZRE185..LHD..G201505

BLACK,TRIM2#

main58510-02G40-C0iZWE186..LHD..(D,N,S)201505

BLACK,TRIM2#

main58510-02G50-C0iNRE185,WWE185..RHD..G201505

BLACK,TRIM2#

main58510-02G60-C0iZWE186..RHD..G201505

BLACK,TRIM2#

58511HMAT, FLOOR, FRONT RH

main58511-02080supersedes 58511-02080iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

main58511-02090iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD201210-201505

COLD AREA SPEC

58512BMAT, FLOOR, FRONT LH

main58512-02060supersedes 58512-02060iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

main58512-02070iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD201210-201505

COLD AREA SPEC

58513CMAT, FLOOR, FRONT CENTER

main58513-02070supersedes 58513-02070iADE186,NDE180,NRE180,ZRE185201210-201505

main58513-02100supersedes 58513-02100iZWE186201210-201505

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-W0006-C0×2iZWE186..LHD..G;NDE180,NRE185..LHD..6F..G201505

AUDIO-*DA,DAB,JBL,6SPEAKER,NAVIGATION(*VCS),BLACK

58521BHOOK, FLOOR CARPET

main58521-02110×10iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23iZWE186201610

BLACK

main90467-07049-C0iZWE186201505-201610

BLACK

58561CSILENCER, FRONT FLOOR, NO.1

main58561-02250iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

main58561-02270iNDE180,NRE18#,WWE185,ZRE185,ZWE186201505

main58561-02260iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD201210-201505

COLD AREA SPEC

main58561-02390iNDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD201505

COLD AREA SPEC

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-02030-B0iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

DK.GRAY

58573CPAD, FRONT FLOOR CENTER

main58573-02010iADE186,NDE180..6F201210-201505

58694BPLATE, MAT SET, UPPER

main58694-76010×2iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

58698CPLATE, MAT SET, LOWER

main58698-76010×2iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

9046710208

main90467-10208

9046711122

main90467-11122

17 parts on this diagram · 6 diagrams in section
