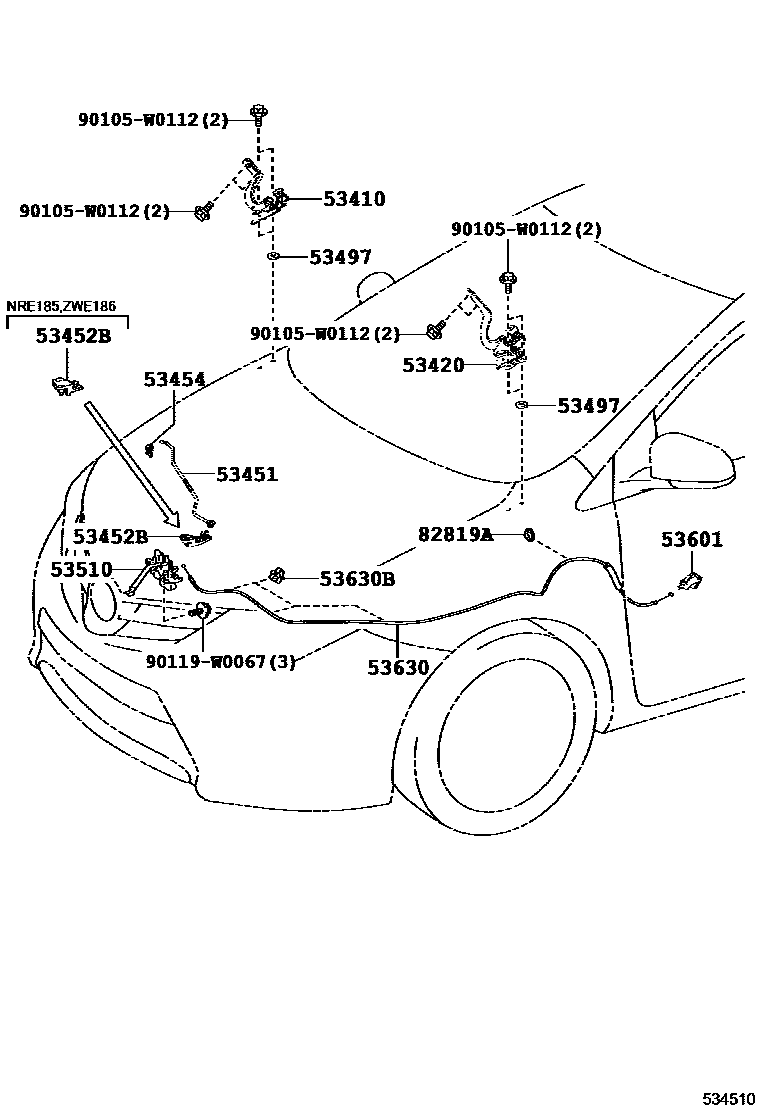

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-02210iNDE180,NRE18#,ZRE185,ZWE186201210-201804

53420HINGE ASSY, HOOD, LH

main53420-02210iNDE180,NRE18#,ZRE185,ZWE186201210-201804

53451ROD, HOOD SUPPORT

main53440-02160iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

53452BBRACKET, HOOD SUPPORT ROD

main53452-02120iWWE185201210-201804

main53452-02170iNRE185,ZWE186201210-201505

53454CLIP, HOOD SUPPORT ROD

main53454-12030iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

53497PAD, HOOD HINGE, NO.1

main53497-05010iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

T=1.0

53510LOCK ASSY, HOOD

main53510-02480iNDE180,NRE180;NRE185..LHD..6F;ZRE185,ZWE186..LHD201210-201505

main53510-02480iNDE180..RHD..HB..D201210-201405

N1 PACKAGE&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.944

main53510-02490iWWE185201210-201804

main53510-02490iADE186;ZRE185,ZWE186..RHD201210-201505

START & STOP SYSTEM PACKAGE

main53510-02490iNRE180..RHD201405-201505

LIGHT GRADE&AUDIO-RADIO LESS & SPEAKER LESS

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-05030-C0iZWE186..G201210-201505

BLACK,TRIM2#

sub53601-05030

main53601-05030-C0iADE186,NDE180,NRE180,ZRE185,ZWE186..D,N201210-201505

BLACK,TRIM1#,2#

sub53601-05030

main53601-05030-C1iNDE180,NRE185,WWE185,ZRE185,ZWE186..G201505

EU BLACK,TRIM2#,4#

sub53601-05030

main53601-05030-C1iNDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S201505

EU BLACK,TRIM2#

sub53601-05030

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-12680iNDE180,NRE180,ZRE185,ZWE186..RHD201210-201804

main53630-12690iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD201210-201804

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iWWE185201210-201804

82819AGROMMET, WIRE

main82817-02720iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

(L)

main82817-1A810iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

(J)

90105W0112

main90105-W0112

90119W0067

main90119-W0067

13 parts on this diagram · 2 diagrams in section
