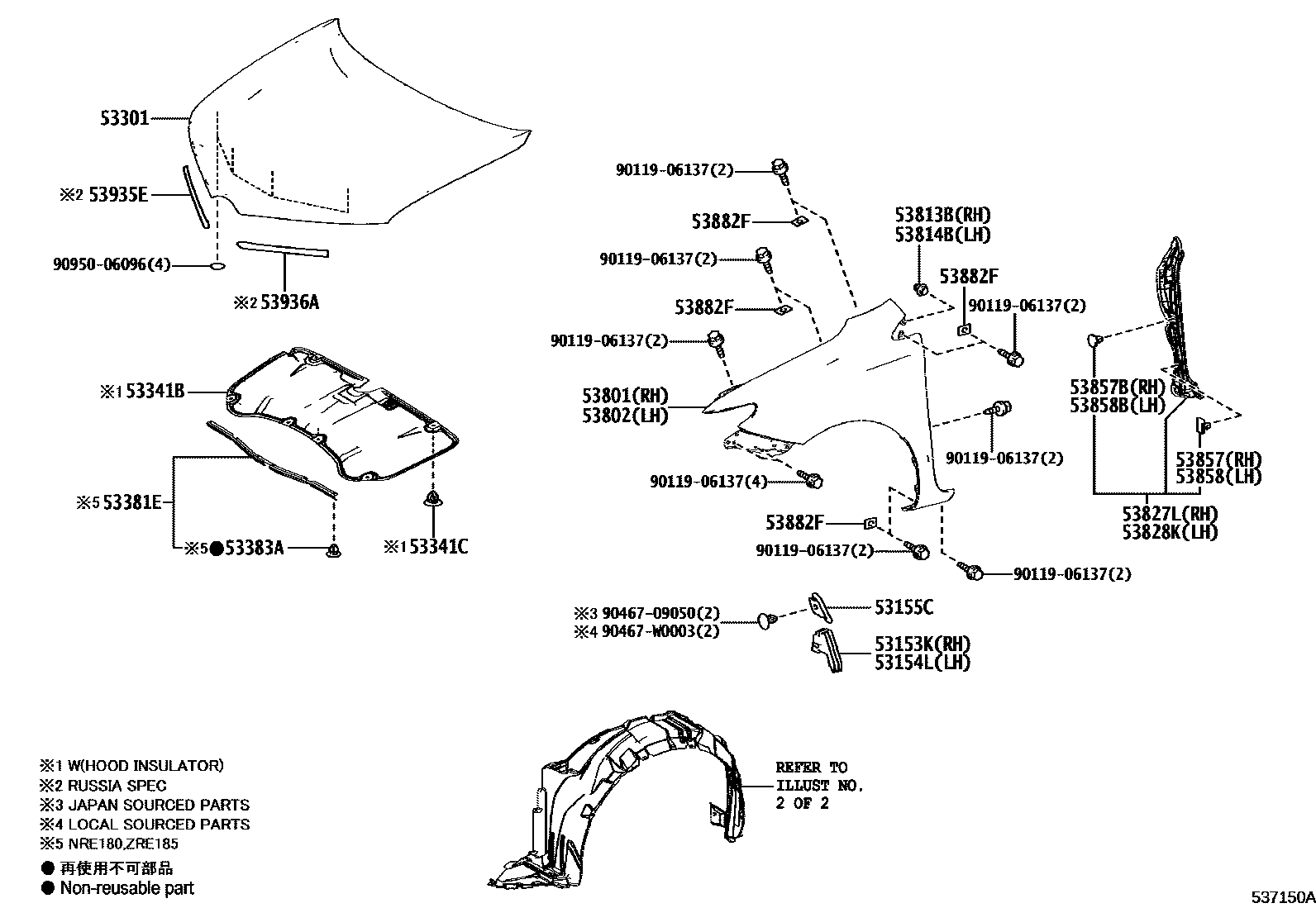

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-02010iWWE185¥2,750201505-201804

LIGHT GRADE

main53153-02010iADE186,NDE180,NRE180,ZRE185,ZWE186¥2,750201210-201505

53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-02010iNDE180,NRE18#,ZRE185,ZWE186¥2,520201505-201804

LIGHT GRADE

main53154-02010iADE186,NDE180,NRE180,ZRE185,ZWE186¥2,520201210-201505

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-02030iNRE180,ZRE185;NDE180,ZWE186..D201505

LIGHT GRADE

main53155-02030iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

main53155-02110iNDE180,NRE185,ZWE186..G,N,S201505-201804

LIGHT GRADE

53301HOOD SUB-ASSY

main53301-02260iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

53341BINSULATOR, HOOD

main53341-02250iZRE185..G,N,S201505

LIGHT GRADE

main53341-02250iZRE185..N201210-201505

main53341-02340iWWE185201505-201804

LIGHT GRADE

main53341-02340iADE186,NDE180,ZWE186201210-201505

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iZRE185..G,N,S;NDE180,NRE185,ZWE186¥120201210-201804

(J)

main90467-09050iZRE185..G,N,S;NDE180,NRE185,ZWE186¥120201505-201804

LIGHT GRADE,(J)

main90467-W0003iZRE185..G,N,S;NDE180,NRE185,ZWE186¥130201210-201804

(L)

53381ESEAL, HOOD TO RADIATOR SUPPORT

main53381-02170iNRE180,ZRE185201210-201505

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08011iNRE180,ZRE185¥100201210-201505

53801FENDER SUB-ASSY, FRONT RH

main53811-02340iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

53802FENDER SUB-ASSY, FRONT LH

main53812-02340iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

53813BEXTENSION, FRONT FENDER, RH

main53813-48011iWWE185¥80201210-201804

53814BEXTENSION, FRONT FENDER, LH

main53813-48011iADE186,NDE180,NRE180,ZRE185,ZWE186¥80201210-201804

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-02170iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

main53827-02170iWWE185201505-201804

LIGHT GRADE

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-02160iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

main53828-02160iWWE185201505-201804

LIGHT GRADE

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iADE186,NDE180,NRE180,ZRE185,ZWE186¥100201210-201505

main53857-12010iWWE185¥100201505-201804

LIGHT GRADE

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iADE186,NDE180,NRE180,ZRE185,ZWE186¥60201210-201505

main53857-47011iWWE185¥60201505-201804

LIGHT GRADE

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iADE186,NDE180,NRE180,ZRE185,ZWE186¥100201210-201505

main53857-12010iWWE185¥100201505-201804

LIGHT GRADE

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iWWE185¥60201505-201804

LIGHT GRADE

main53857-47011iADE186,NDE180,NRE180,ZRE185,ZWE186¥60201210-201505

53882FSEAL, FRONT FENDER

main53882-16030iADE186,NDE180,NRE180,ZRE185,ZWE186¥60201210-201804

53935EPROTECTOR, FRONT END PANEL, RH

53936APROTECTOR, FRONT END PANEL, LH

9011906137

main90119-06137¥70

9046709050

main90467-09050¥120

90467W0003

main90467-W0003¥130

9095006096

main90950-06096¥100

25 parts on this diagram · 2 diagrams in section
