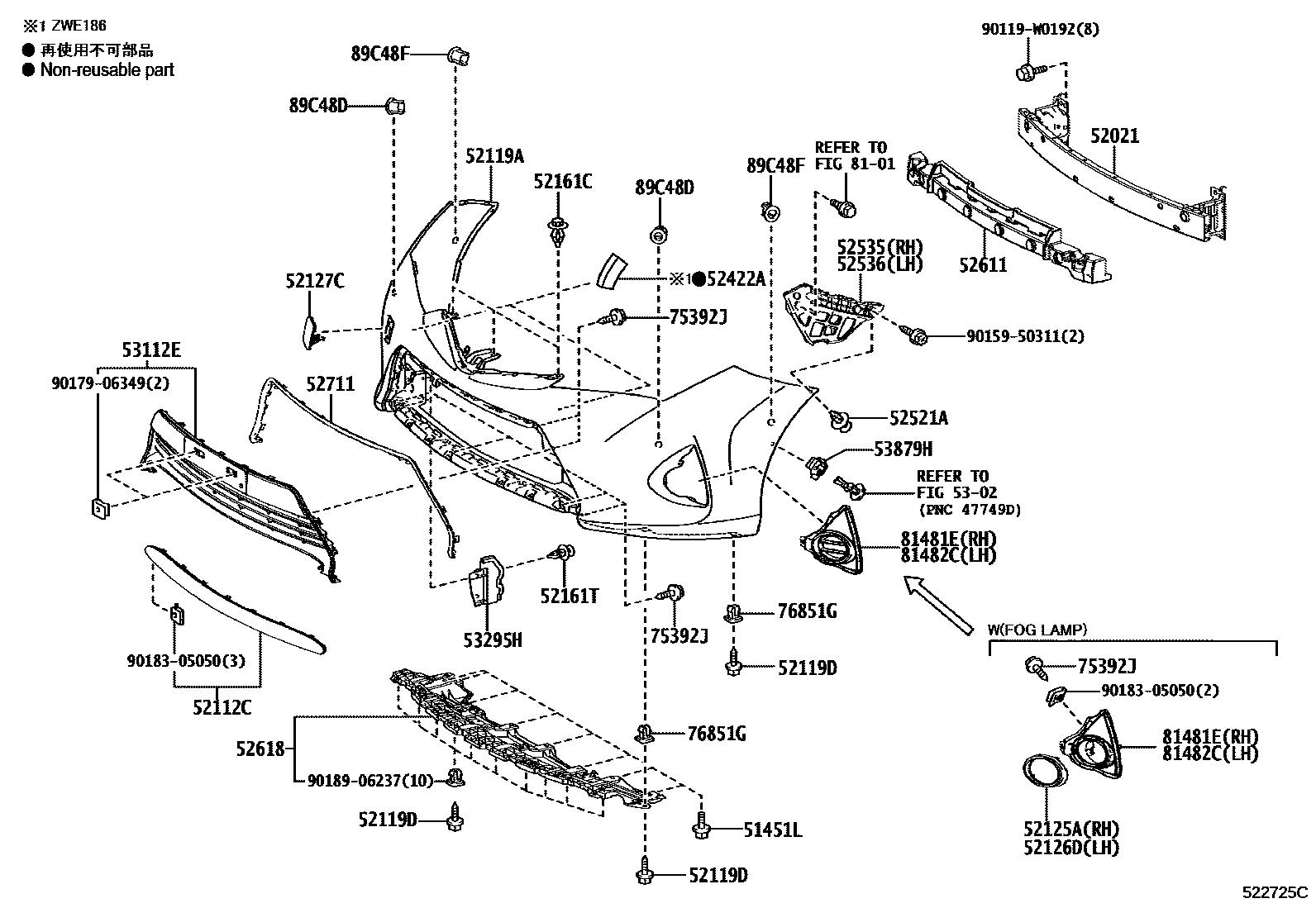

FRONT BUMPER & BUMPER STAY
51451LBOLT, NO.1
(J)
(L)
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52112CEXTENSION, FRONT BUMPER
LIGHT GRADE
RUSSIA SPEC&SPORT PACKAGE&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.,RUSSIA SPEC&HEADLAMP CLEANER-WITH
PAINT REQ.,RUSSIA SPEC&SPORT PACKAGE&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,RUSSIA SPEC&HEADLAMP CLEANER-WITH
PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT
52119DSCREW, NO.1
(J)
(L)
52125ABRACKET, FOG LAMP MOUNTING, RH
RUSSIA SPEC&SPORT PACKAGE&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH
SPORT PACKAGE&CLEARANCE & BACK SONAR-WITH
52126DBRACKET, FOG LAMP MOUNTING, LH
RUSSIA SPEC&SPORT PACKAGE&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH
SPORT PACKAGE&CLEARANCE & BACK SONAR-WITH
52127CCOVER, FRONT BUMPER HOLE
52161TPIECE, FRONT BUMPER
(L)
52422APAD, FRONT BUMPER, RH
IRELAND SPEC&FRONT FOG LAMP-WITH
52521ACLIP(FOR FRONT BUMPER RETAINER)
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
52618ABSORBER, FRONT BUMPER, LOWER
52711MOULDING, FRONT BUMPER
PLATED
NO PAINT REQ.,LIGHT GRADE
NO PAINT REQ.,LIGHT GRADE
PLATED,RUSSIA SPEC&HIGH GRADE&HEADLAMP CLEANER-WITH
5302
53112EGRILLE, RADIATOR, LOWER NO.1
PLATED
NO PAINT REQ.
NO PAINT REQ.
PLATED,REFRIGERANT GAS TYPE=R-134A&HIGH GRADE
PLATED,REFRIGERANT GAS TYPE=R-134A&HIGH GRADE&CLEARANCE & BACK SONAR-WITH
PLATED,RUSSIA SPEC&HIGH GRADE&HEADLAMP CLEANER-WITH
PLATED,RUSSIA SPEC&HIGH GRADE&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH
PLATED,RUSSIA SPEC&HEADLAMP CLEANER-WITH
NO PAINT REQ.,HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH
53879HRETAINER, FRONT FENDER LINER
75392JRETAINER, OUTSIDE MOULDING
LIGHT GRADE
76851GGROMMET, SCREW, NO.1
8101
81481ECOVER, FOG LAMP, RH
LIGHT GRADE
81482CCOVER, FOG LAMP, LH
LIGHT GRADE
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
HIGH GRADE&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040
HIGH GRADE&CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070
REFRIGERANT GAS TYPE=R-134A&HIGH GRADE&CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7
CLEARANCE & BACK SONAR-WITH,GRAY ME.
RUSSIA SPEC&SPORT PACKAGE&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G6
HIGH GRADE&CLEARANCE & BACK SONAR-WITH,DK. STEEL MC.,1H2
REFRIGERANT GAS TYPE=R-134A&HIGH GRADE&CLEARANCE & BACK SONAR-WITH,BLACK MC.,209
HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH,RED M.M.,3R3
RUSSIA SPEC&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH,AVANT-GARDE BRONZE ME.,4V8
HIGH GRADE&CLEARANCE & BACK SONAR-WITH,BLUE ME.,8T7
BLUE ME.,8N0
SPORT PACKAGE&CLEARANCE & BACK SONAR-WITH,DK.BLUE ME.,8U5
89C48FRETAINER, ULTRASONIC SENSOR, FRONT SIDE
HIGH GRADE&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040
HIGH GRADE&CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070
REFRIGERANT GAS TYPE=R-134A&HIGH GRADE&CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7
RUSSIA SPEC&SPORT PACKAGE&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G6
HIGH GRADE&CLEARANCE & BACK SONAR-WITH,DK. STEEL MC.,1H2
REFRIGERANT GAS TYPE=R-134A&HIGH GRADE&CLEARANCE & BACK SONAR-WITH,BLACK MC.,209
HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH,RED M.M.,3R3
RUSSIA SPEC&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH,AVANT-GARDE BRONZE ME.,4V8
BLUE ME.,8N0
HIGH GRADE&CLEARANCE & BACK SONAR-WITH,BLUE ME.,8T7
SPORT PACKAGE&CLEARANCE & BACK SONAR-WITH,DK.BLUE ME.,8U5
90119W0192
main90119-W0192
9015950311
main90159-50311
9017906349
main90179-06349
9018305050
main90183-05050
9018906237
main90189-06237
33 parts on this diagram · 2 diagrams in section
